Description

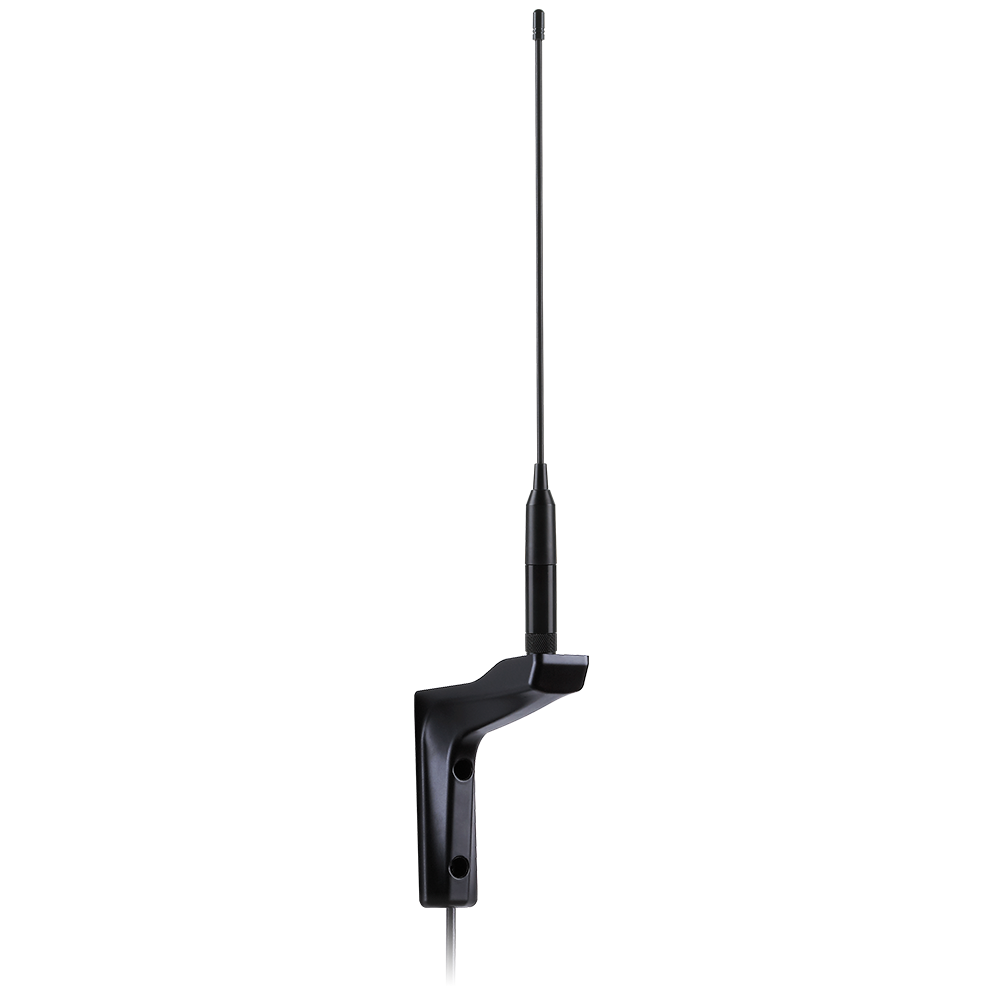

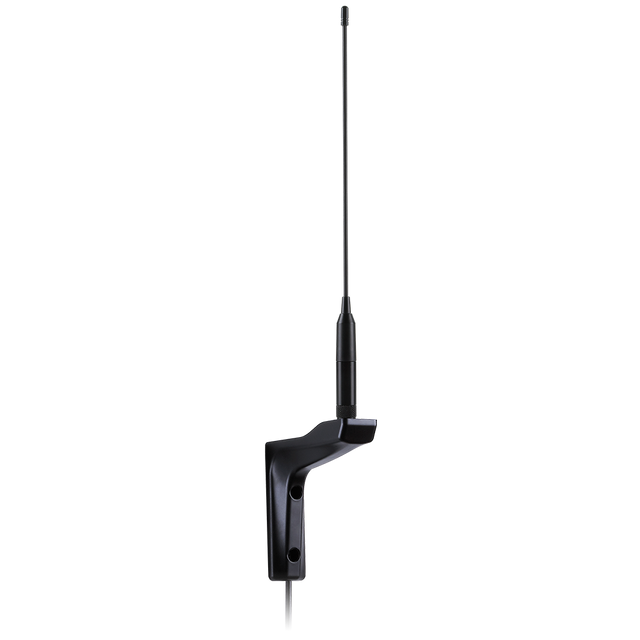

Cyclops is a high-efficiency 915MHz flexible whip antenna designed for wall-mounted installations where durable, reliable coverage is required. Its omni-directional radiation pattern supports broad azimuth coverage for indoor or outdoor deployments.
- Durable flexible whip: inner steel core construction helps resist impacts and return to shape.
- Clean, secure integration: wall bracket design supports concealed cable routing for a neat install and added tamper resistance.
- Optimized coverage: engineered for extended horizontal (azimuth) performance while maintaining omni-directional behavior.
Typical applications include: Remote Monitoring, Connected Enterprise, Mesh Networks.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: CFD-200
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Whip
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Wall Mount
Type: Single
IP Rating: IP65
Antenna Height: 282mm
Bracket Dimensions: 120 x 118 x 32 mm
Weight: 330g
ISM / LoRa
Frequency: 902MHz - 928MHz
Standards: ISM/LoRa
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Radiation Pattern: Omni-Directional
Input Power: 10W
Gain (Max): 4.42 dBi
Connector Type: SMA(M) ST
Cable Length: 300cm
Cable Type: CFD-200
