Description

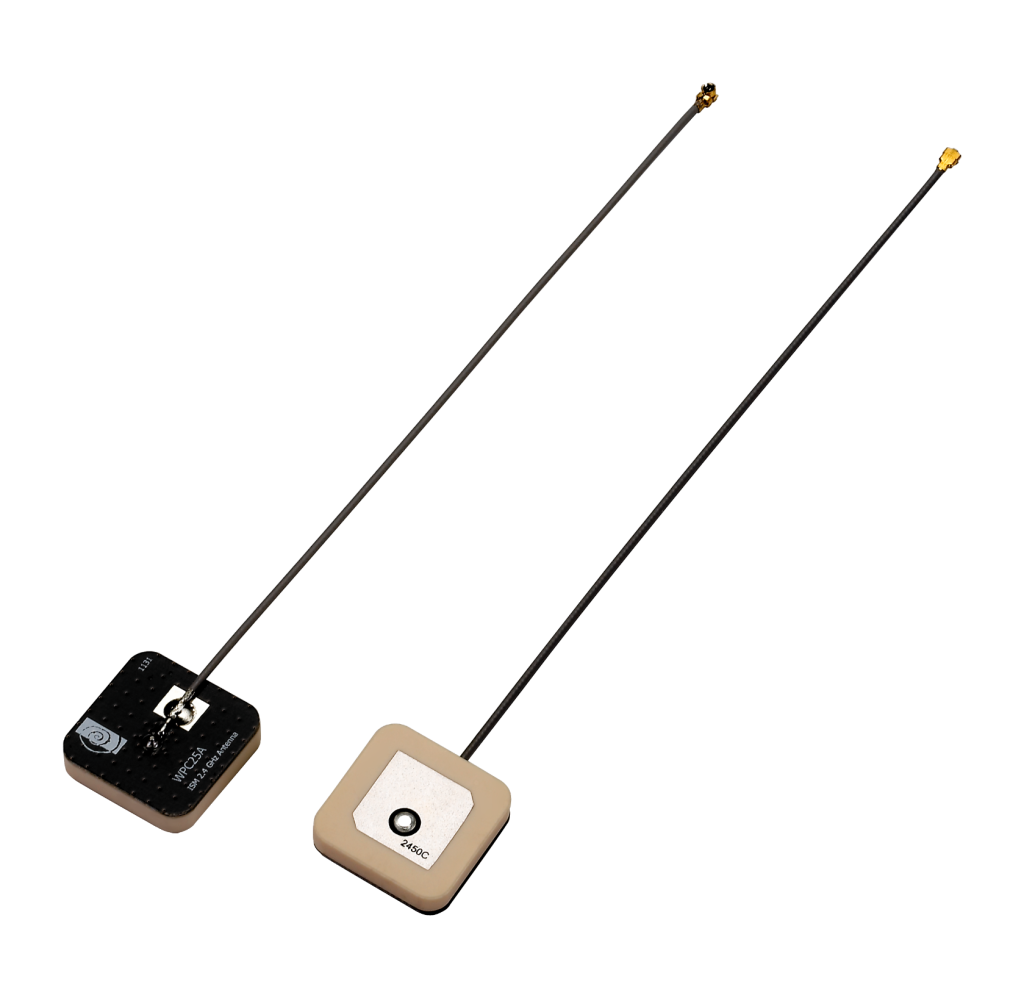

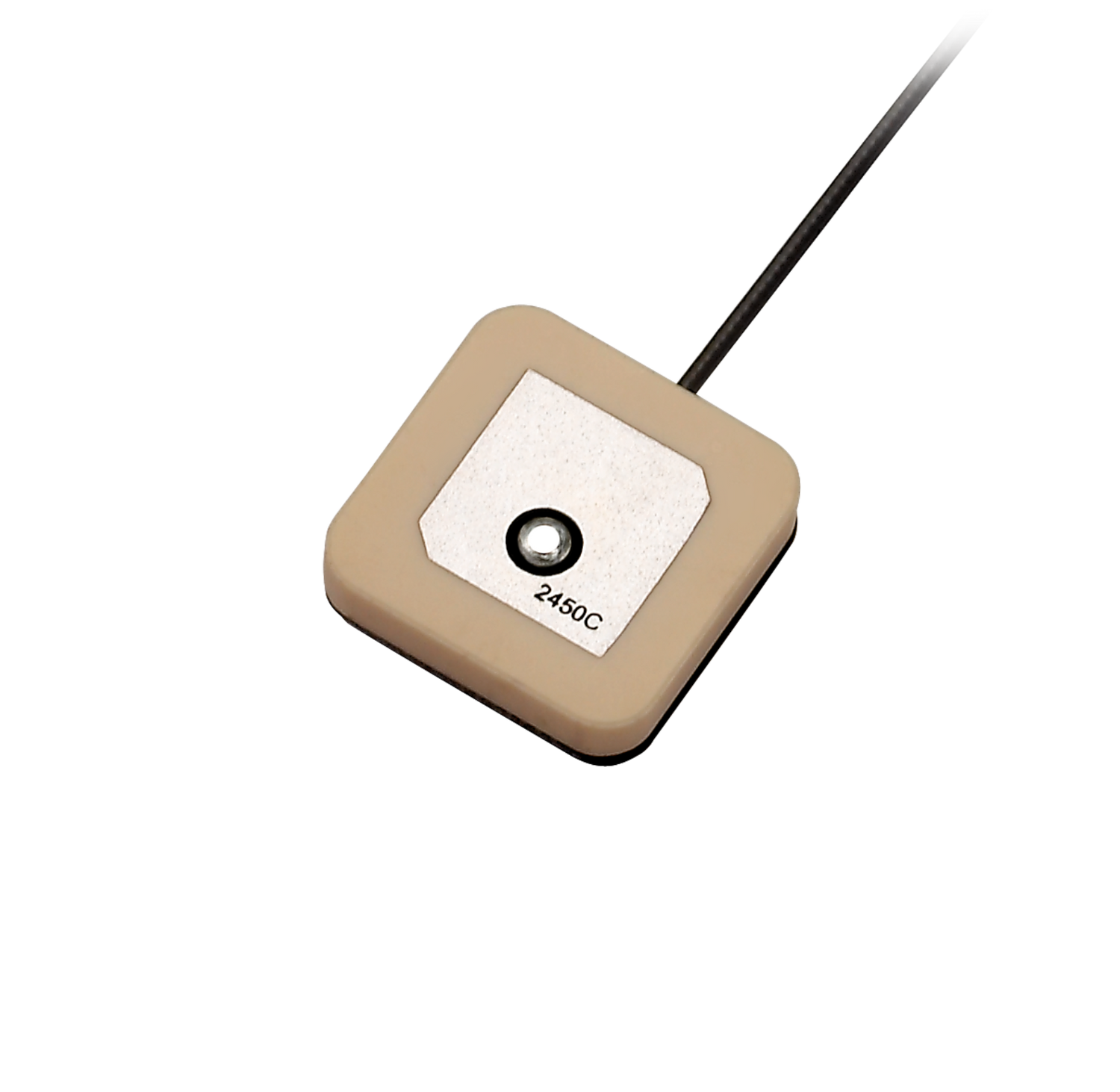

This compact 2.4GHz ceramic patch antenna is designed for embedded wireless devices requiring reliable performance in the 2.4GHz ISM band. It supports Wi-Fi, ZigBee, and Bluetooth applications and includes an integral ground PCB carrier to help simplify integration and reduce ground-plane dependence.
- Designed for embedded devices: patch form factor on a PCB carrier for straightforward placement inside enclosures
- 2.4GHz ISM support: suitable for Wi-Fi, ZigBee, and Bluetooth connectivity
- Ground independent design: includes an integral ground structure to aid consistent performance
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 15cm
- Cable Type: 1.37 mini coaxial
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Dimensions: Ø25 x 5.5 mm
Weight: 15.57g
Wi-Fi / Bluetooth / ZigBee (2.4GHz ISM)
Frequency: 2400-2500 MHz
Standards: Wi-Fi, Zigbee, Bluetooth, ISM
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Peak Gain (dBi): 5.15
Efficiency (%): 76.9
Average Gain (dB): -1.14
Radiation Pattern: Omni
Max. Input Power: 2W
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 15cm
Cable Type: 1.37 mini coaxial
