Description

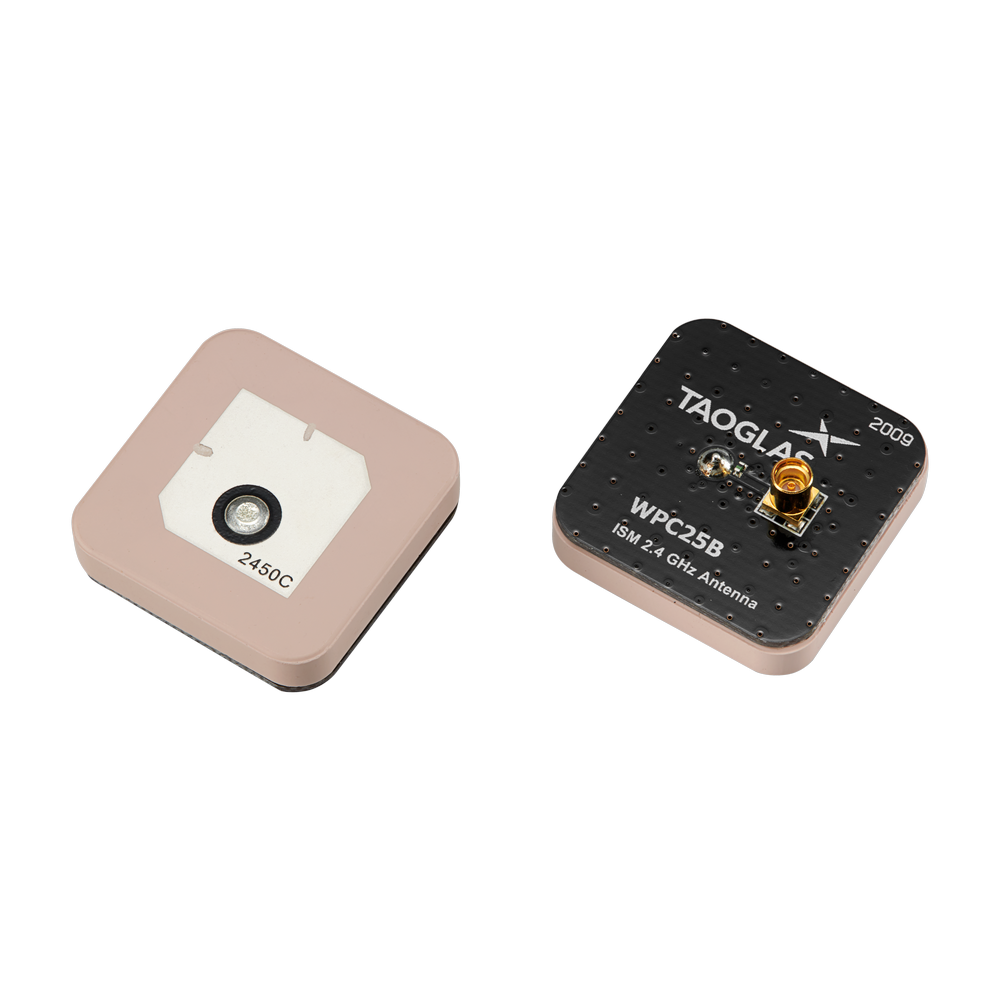

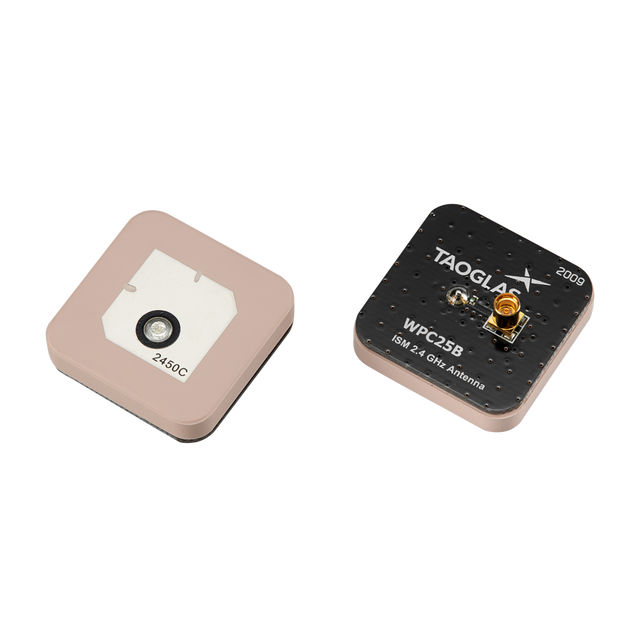

The WPC.25B.35 is a compact 2.4GHz ceramic patch antenna designed for embedded wireless devices where space is limited. It supports common 2.4GHz applications including Wi-Fi, ZigBee, Bluetooth and other ISM-band systems.
With an integrated patch structure and on-board connector interface, it is well-suited for quick integration into enclosures and can be positioned over metal ground-planes without compromising performance. Its largely omnidirectional radiation behavior helps provide broad coverage with minimal nulls, making it a strong option for reliable 2.4GHz links in real-world device layouts.
- Designed for embedded 2.4GHz devices requiring a compact antenna solution
- Broad 2.4GHz ISM support for Wi-Fi, ZigBee and Bluetooth systems
- Good real-world coverage with largely omnidirectional behavior
- Suitable for demanding environments including automotive use cases
Connector & Cable
- Connector Type: MMCX-F
- Cable Length: None
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Dimensions: 25*25*5.3mm(10.6mm incl connector)
Weight: 5g
Wi-Fi/Bluetooth/ZigBee/ISM (2.4GHz)
Frequency: 2400 MHz - 2500 MHz
Impedance: 50Ω
VSWR: 2:1
Polarization: Broadly Linear
Efficiency: 65% min.
Peak Gain: 2 dBi min.
Gain toward Zenith: +3.5 dBic typ.
Connector Type: MMCX Female
Cable Length: None
