Description

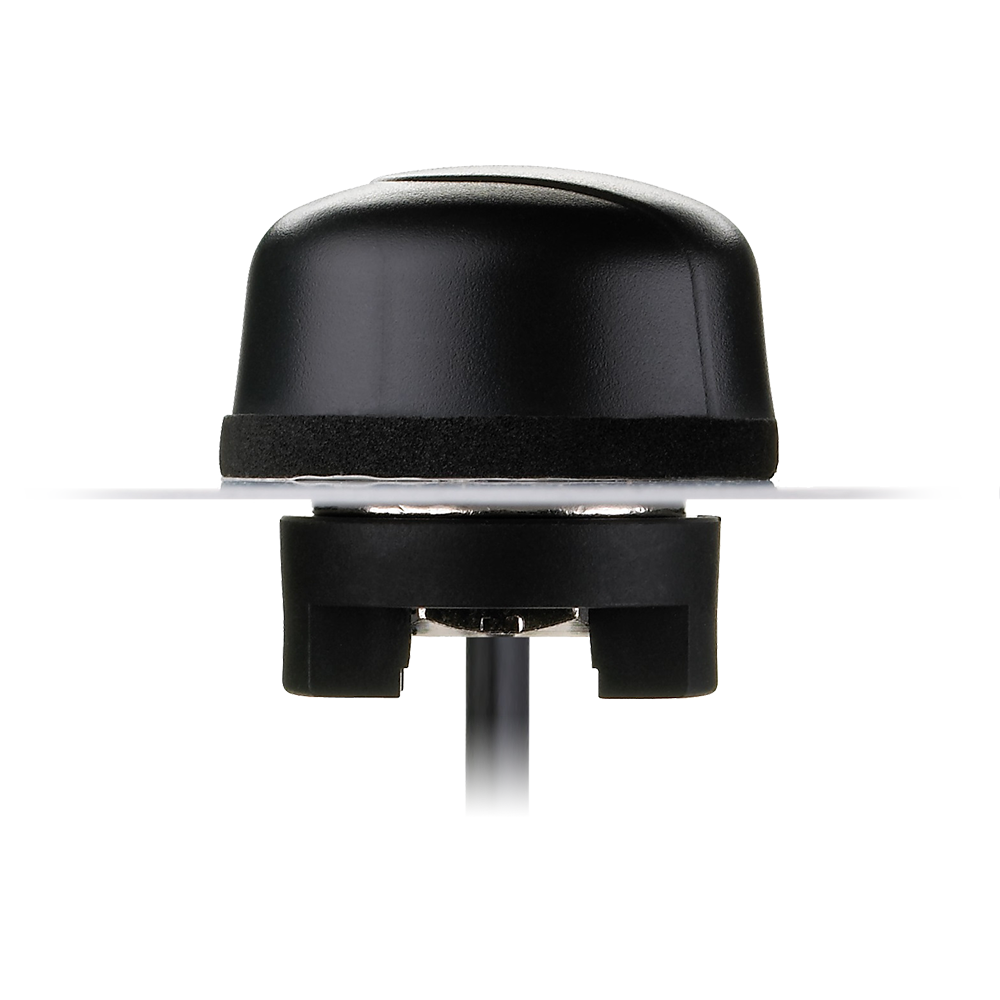

The Hercules WS.02 is a rugged 2.4GHz omni-directional antenna designed for external use on vehicles and outdoor assets. Its heavy-duty threaded screw-mount design and vandal-resistant, UV-resistant housing help deliver reliable connectivity for remote deployments where durability matters.
- Consistent omni-directional performance: supports stable reception and transmission across the 2.4GHz band
- Built for harsh environments: UV- and vandal-resistant housing with an IP65-rated enclosure
- Low-profile form factor: suitable for roof-mounted installations where height restrictions apply
- Common 2.4GHz ecosystem support: suitable for Wi-Fi/ISM/ZigBee/WLAN/Bluetooth use cases
Connections
Wi-Fi®/ISM Bands/ZigBee®/WLAN/Bluetooth®
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 200cm
- Cable Type: TGC-200
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: External
Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
IP Rating: IP65
Dimensions: 29mm*49mm (Diameter) IP65 Rated Enclosure RoHS and REACH Compliant
Weight: 130g
Wi-Fi / ISM (2.4GHz)
Frequency: 2.4GHz
Standards: Wi-Fi®/ISM Bands/ZigBee®/WLAN/Bluetooth®
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Radiation Pattern: Omni-directional
Connector Type: SMA-M
Cable Length: 200cm
Cable Type: TGC-200
