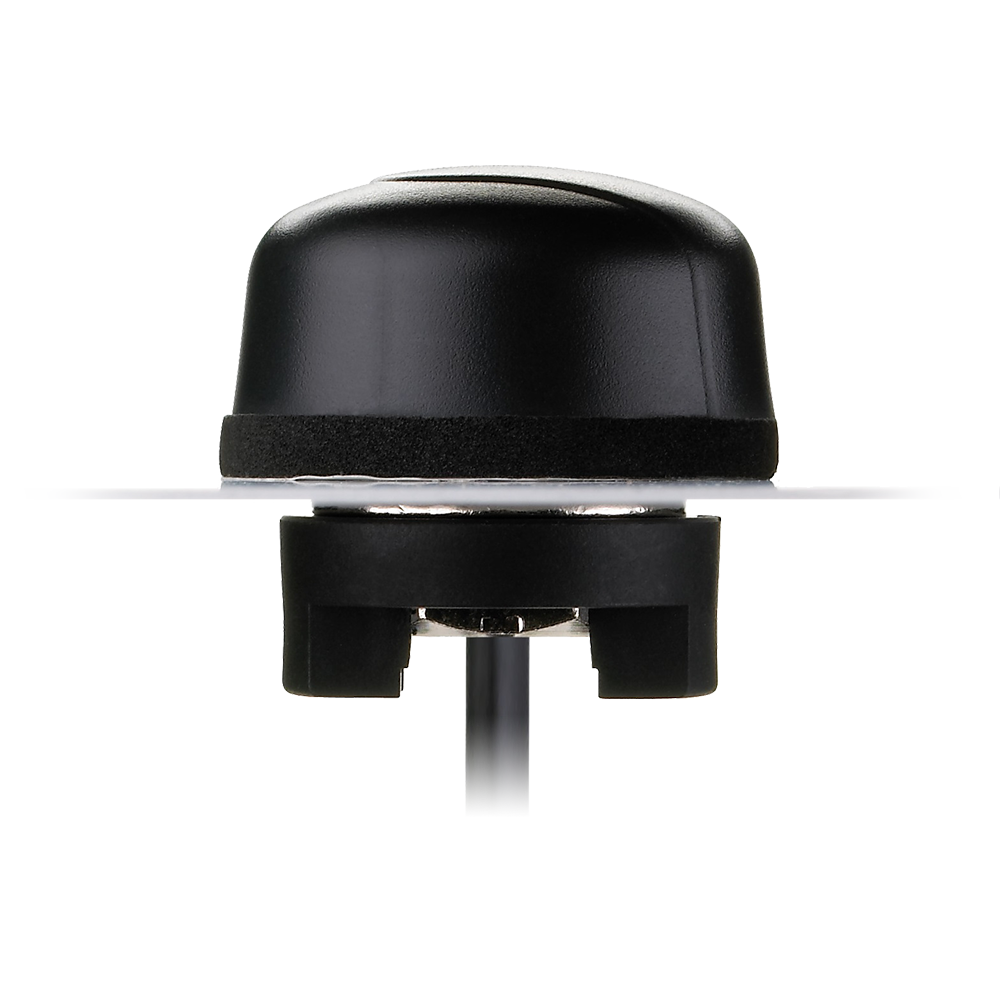

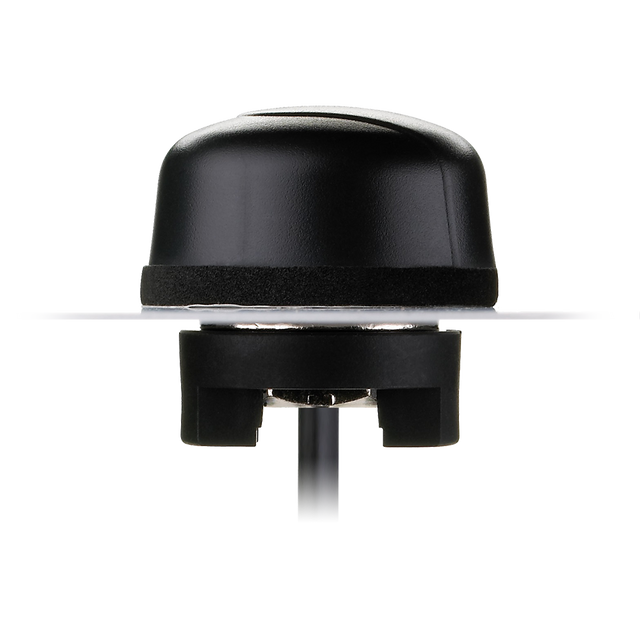

WS.03.B.305151 Antenna External Low-Profile High-Gain Router Wi-Fi 6E/7 permanent mount Hercules RPSMA-M 300cm IP65 for Remote Monitoring, Gateways and Routers, HD Video Streaming, Smart Cities

Hercules WS.03 is a low-profile permanent-mount antenna designed to cover the full Wi-Fi spectrum, including Wi-Fi 6 frequencies up to 7.125 GHz. Its omnidirectional performance supports reliable reception and transmission for demanding deployments.

• Full-band Wi-Fi coverage: supports 2.4 GHz, 5 GHz, and 6 GHz ranges for modern Wi-Fi systems.
• Rugged outdoor-ready enclosure: UV- and vandal-resistant housing with an IP65-rated design to help withstand challenging environments.
• Secure permanent mounting: built for robust installation where a durable threaded mount is required.
• Use cases: Remote Monitoring, Gateways and Routers, HD Video Streaming, Smart Cities.

Cable and connector options can be customized to suit integration requirements.

Connector & Cable

• Connector Type: RP-SMA Male
• Cable Length: 300cm
• Cable Type: TGC-200

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP65
Impedance: 50 Ω
VSWR: 2:1
Dimensions: Ø49 x 29 mm
Weight: 130g

Wi-Fi / Wi-Fi 6

Frequency: 2400~2500 MHz / 5150~5850 MHz / 5925~7125 MHz
Standards: Wi-Fi, Wi-Fi 6
Polarization: Linear
Radiation Pattern: Omni-directional
Max Input Power: 10W
Peak Gain (dBi): 4.85 (2.4GHz, free space), 5.46 (5.8GHz, ground plane), 8.23 (7.1GHz, ground plane)
Efficiency (%): 57.9–58.2 (2.4GHz), 42.2–43.8 (5.8GHz), 69.7–72.5 (7.1GHz)
Connector Type: RP-SMA Male
Cable Length: 300cm
Cable Type: TGC-200
