Description

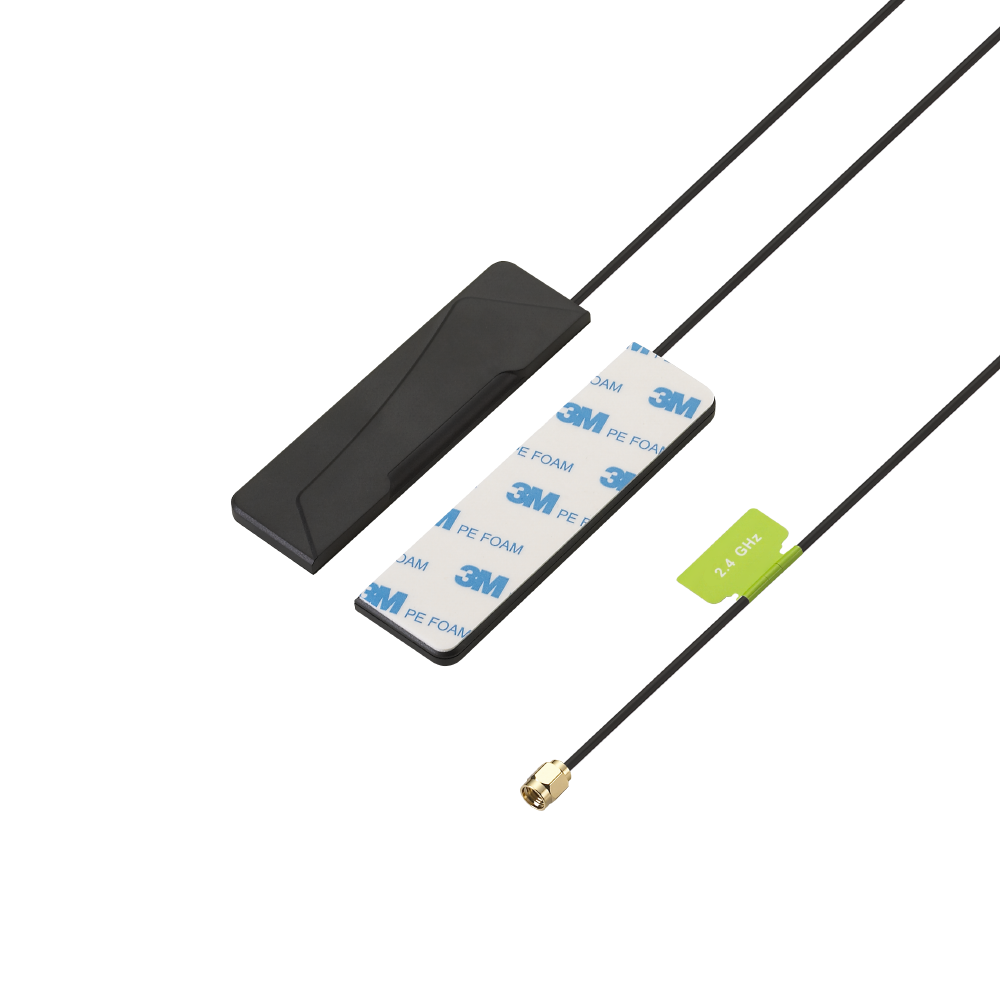

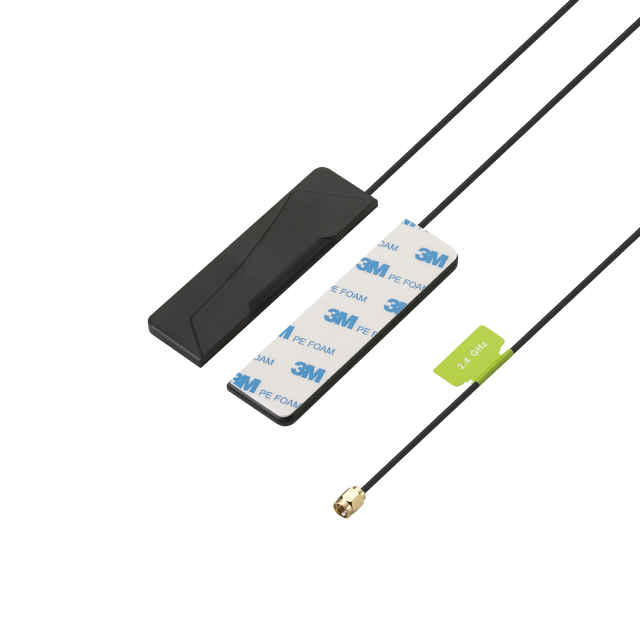

Phoenix WSA.2400 is a robust, low-profile I-Bar antenna designed for 2.4GHz Wi-Fi, Bluetooth, and ISM applications. Its slim-line format supports covert and convenient integration, while an omnidirectional radiation pattern helps maintain reliable reception and transmission.
Designed for long-term use, this UV resistant antenna is intended for mounting on glass or plastic (not metal) and uses strong double-sided adhesive for a permanent, secure fix. It is especially suited for first-tier automotive applications and telematics deployments, with customizable cable and connector options available.
Connector & Cable
- Connector Type: RP-SMA(M)
- Cable Length: 100cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP65
Dimensions: 105*30*7.7mm Fully Customizable Cable and Connector
Weight: 50g
Wi-Fi / Bluetooth / ISM
Frequency: 2400-2500MHz
Standards: Wi-Fi®/WLAN 2.4GHz, Bluetooth®, ISM
Impedance: 50Ω
VSWR: ≤ 2:1
Return loss: < -10 dB
Polarization: Linear
Radiation Pattern: Omnidirectional
Input Power: 2W
Gain (Max): 3.2
Connector Type: RP-SMA(M)
Cable Length: 100cm
Cable Type: RG-174
