Description

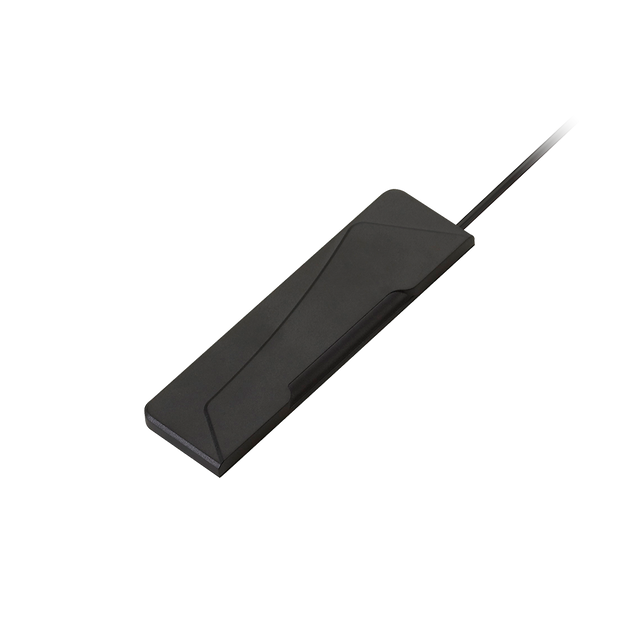

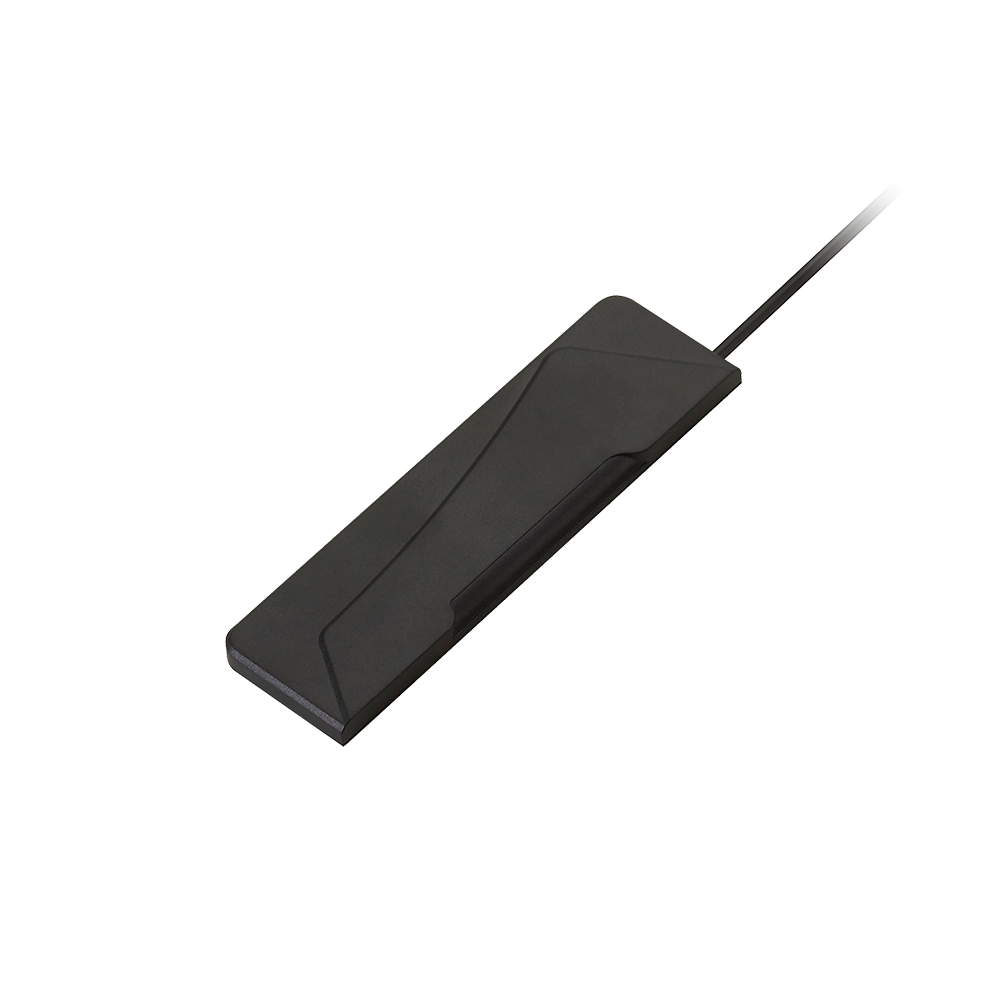

The Phoenix WSA.2458 I-Bar is a robust, low-profile dipole antenna designed for dual-band Wi-Fi® applications. Its slim-line form factor supports covert and convenient placement, while an omnidirectional radiation pattern helps maintain stable reception and transmission.
Built for demanding deployments, it is especially suited for first-tier automotive applications, aftermarket, and telematics. Cable lengths, types and connectors are fully customizable.
Connector & Cable
- Connector Type: RP-SMA(M)
- Cable Length: 100cm
- Cable Type: RG-174
Installation / Environmental
This UV resistant antenna is designed to be mounted on glass or plastic but should not be mounted on a metal base. It comes with strong 3M double-sided adhesive for a permanent and secure fix to your application.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
Mounting: Adhesive Mount
Satellite Navigation:
Short-Range Wireless Standards: Wi-Fi, Bluetooth
Type: Single
IP Rating: IP65
Dimensions: 105*30*7.7mm Fully Customizable Cable and Connector
Weight: 50g
Wi-Fi / WLAN / Bluetooth
Frequency: 2400~2500MHz, 4900~5850MHz
Impedance (Ohm): 50Ω
VSWR: ≤ 2:1
Return loss: < -10 dB
Polarization: Linear
Radiation Pattern: Omnidirectional
Input Power: 2W
Gain (Max): 4.6
Connector Type: RP-SMA(M)
Cable Length: 100cm
Cable Type: RG-174
