Description

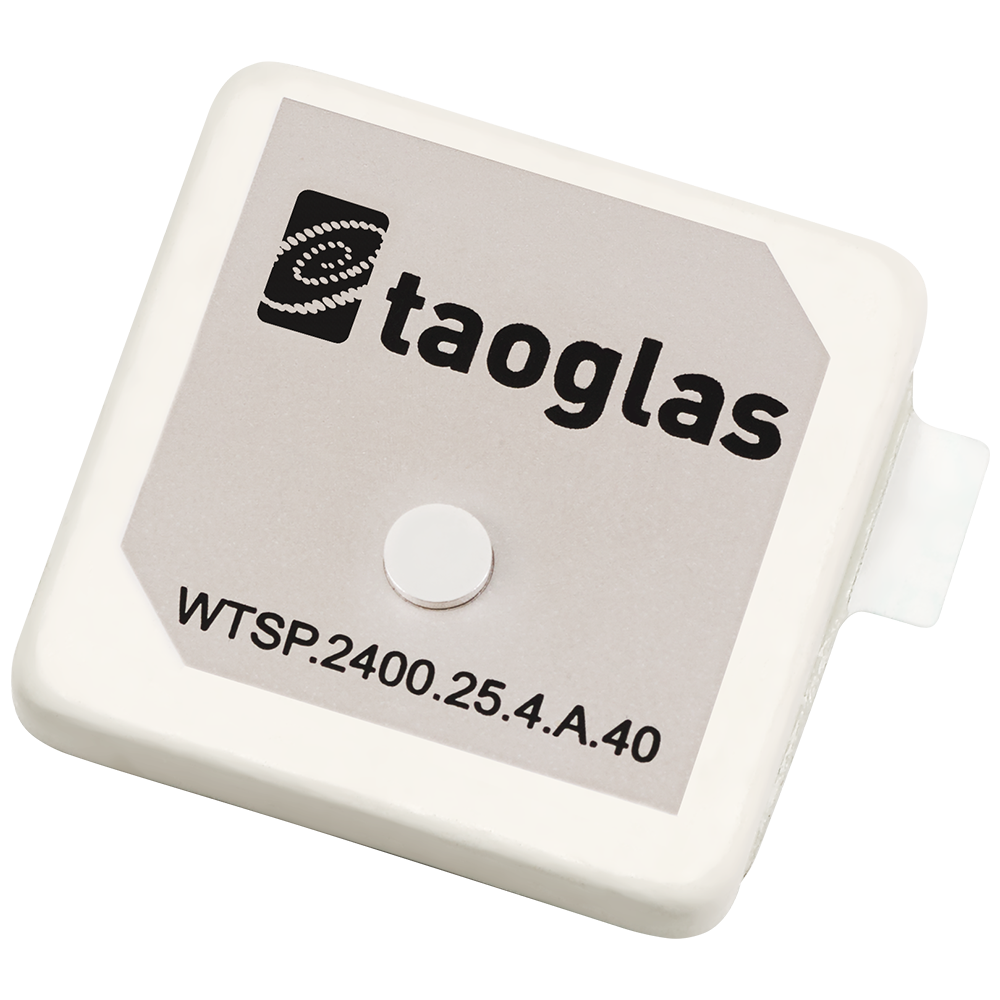

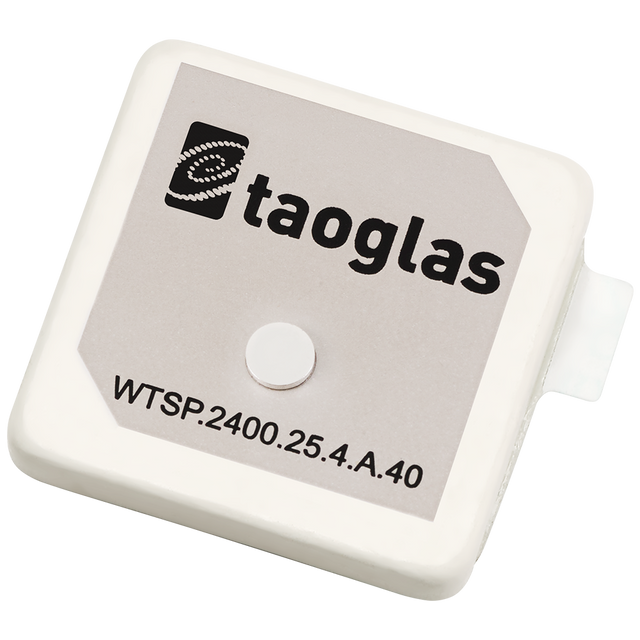

WTSP.2400.25.4.A.40 is an ultra-lightweight, low-profile Terrablast patch antenna designed for 2.4GHz applications where weight, durability, and consistent performance in motion matter.
- Reliable in dynamic orientation: Right-hand circular polarization (RHCP) helps maintain a more dependable link when the antenna orientation changes during movement.
- Extremely light and low-profile: Built to minimize payload impact while keeping a slim height.
- Impact-resistant construction: Designed to better withstand drops, falls, and mechanical shocks in demanding environments.
- Integration flexibility: Works well in most environments and can be tuned/optimized for different ground planes and enclosures if required.
Typical use cases include UAV platforms and automotive systems operating in the 2.4GHz band.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin Mount, Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
Frequency: 2400-2500MHz
Polarization: RHCP
Impedance: 50 ohms
VSWR: 2:1
Peak Gain (Max): 4.93dBi
Efficiency: 62.07%
Average Gain: -2.07dB
Dimensions: 25mm x 25mm x 4mm Ultra Impact Resistant RH Circularly Polarised RoHS and REACH
Weight: 5.6g
Cable Type: 1.37 Coax
Cable Length: 10cm
Humidity: Non-Condensing 65°C 95% RH
