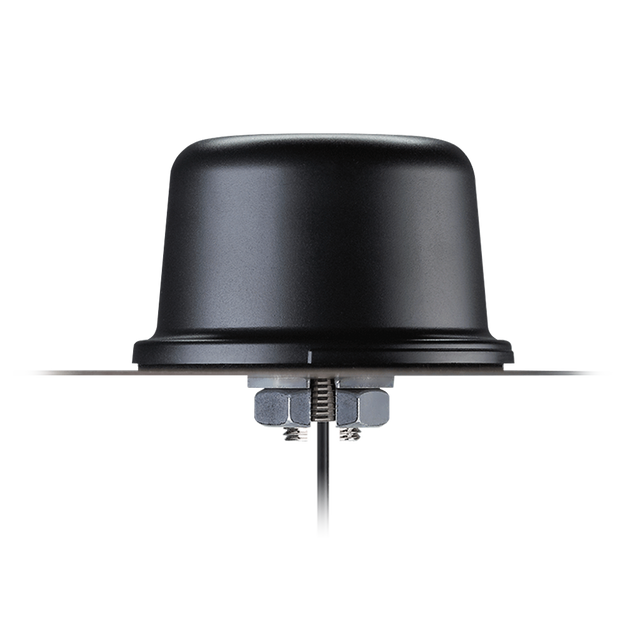

XAHP.60.A.301111 Antenna External High Precision GNSS permanent mount Colosseum X SMA-M 300cm IP67 for Autonomous Driving, Precision Positioning for Robotics, Precision Agriculture, Inventory Management & Container tracking

Colosseum X is an active multi-band GNSS antenna designed for high-precision positioning across the full GNSS spectrum. It supports multiple constellations and bands to improve accuracy and maintain reliable tracking in challenging environments.

• Active GNSS with LNA: built for stable, reliable GNSS signal reception
• Multi-constellation / multi-band support: wide compatibility across global GNSS services (including L-Band corrections)
• Robust enclosure: suited to demanding outdoor deployments
• Permanent mount design: intended for secure, long-term installation on equipment and enclosures

Typical use cases include autonomous systems, robotics, precision agriculture, asset tracking, and timing synchronization.

Connections

1x Active Multiband GNSS 1176.45MHz - 1603MHz

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: Ø94 x 57 mm
Weight: 395g

GNSS (Active Multiband)

Frequency: 1176.45MHz - 1603MHz
GNSS Bands: L1/L2/L5/L6 + L-Band
Standards: GPS/QZSS L1/L2/L5/L6, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2a/B2b/B3, IRNSS (NAVIC) L5, SBAS (WAAS/EGNOS/GAGAN/SDCM/SNAS)
Polarization: RHCP, Linear
Impedance: 50 Ω
VSWR (max.): 2:1
Gain (Max): 27.3 dB
Voltage In: 1.8V ~ 5.5V
Power Consumption (mA): 18 +/- 3mA
ESD: ±20KV for Contact and ±25KV for Air
Out Of Band Rejection: 70dB for frequencies <1GHz; 60dB for frequencies >1.7GHz
Connector Type: SMA(M) Straight
Cable Length: 300cm
Cable Type: RG-174
