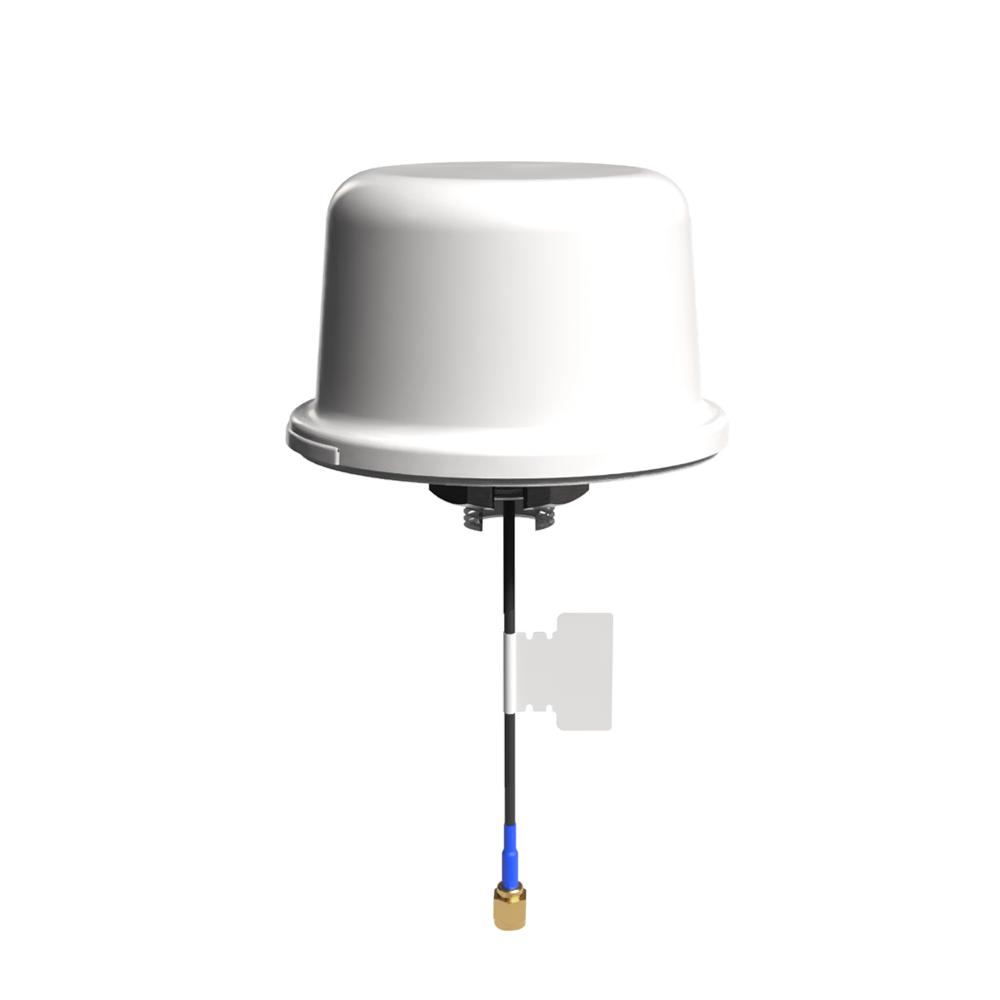

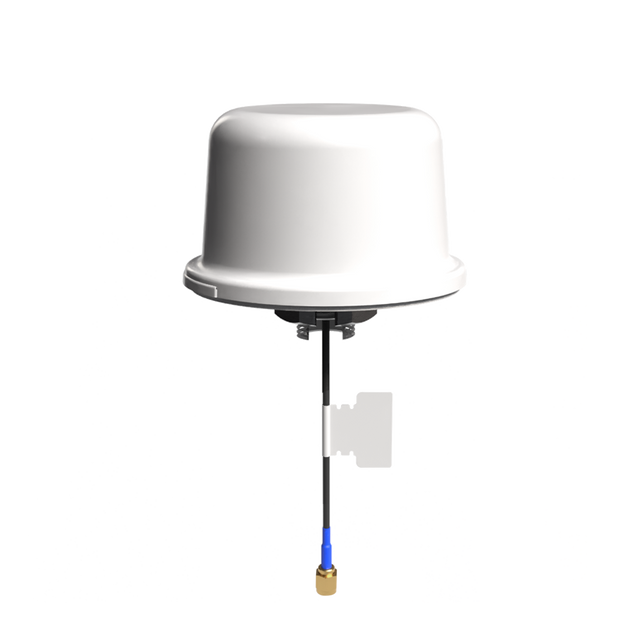

XAHP.60.W.301111 Antenna External GNSS permanent mount Colosseum X SMA-M 300cm IP67 for Autonomous Driving, Precision Positioning for Robotics, Precision Agriculture, Inventory Management & Container tracking

This active multi-band GNSS antenna is designed for high-precision positioning across a wide range of satellite navigation constellations and correction services. Its robust permanent-mount housing supports reliable operation in demanding environments while maintaining strong out-of-band rejection and stable tracking performance in challenging urban conditions.

Typical applications include:

• Autonomous Driving
• Precision Positioning for Robotics
• Precision Agriculture
• Inventory Management & Container tracking
• Telematics & Asset Tracking
• Timing Accuracy Synchronization

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: Ø94 x 57 mm
Weight: 395g

GNSS (Active)

Frequency: 1176.45MHz - 1603MHz
GNSS Bands: L1/L2/L5/L6 + L-Band
Standards: GPS/QZSS, GLONASS, Galileo, BeiDou, SBAS, IRNSS (Regional), L-Band
Polarization: RHCP, Linear
Impedance: 50 Ω
VSWR: 2:1
Gain (Max): 27.3
Connector Type: SMA(M) Straight
Cable Length: 300cm
Cable Type: RG-174
