Description

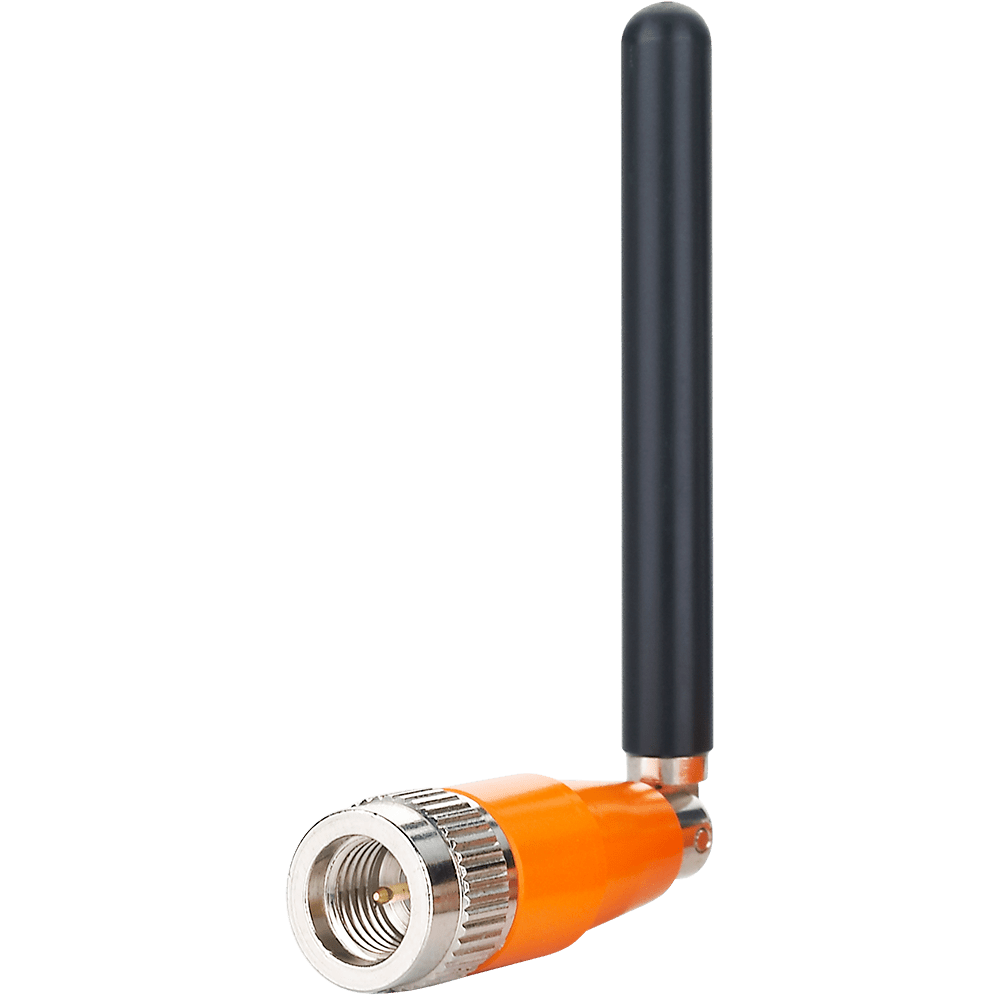

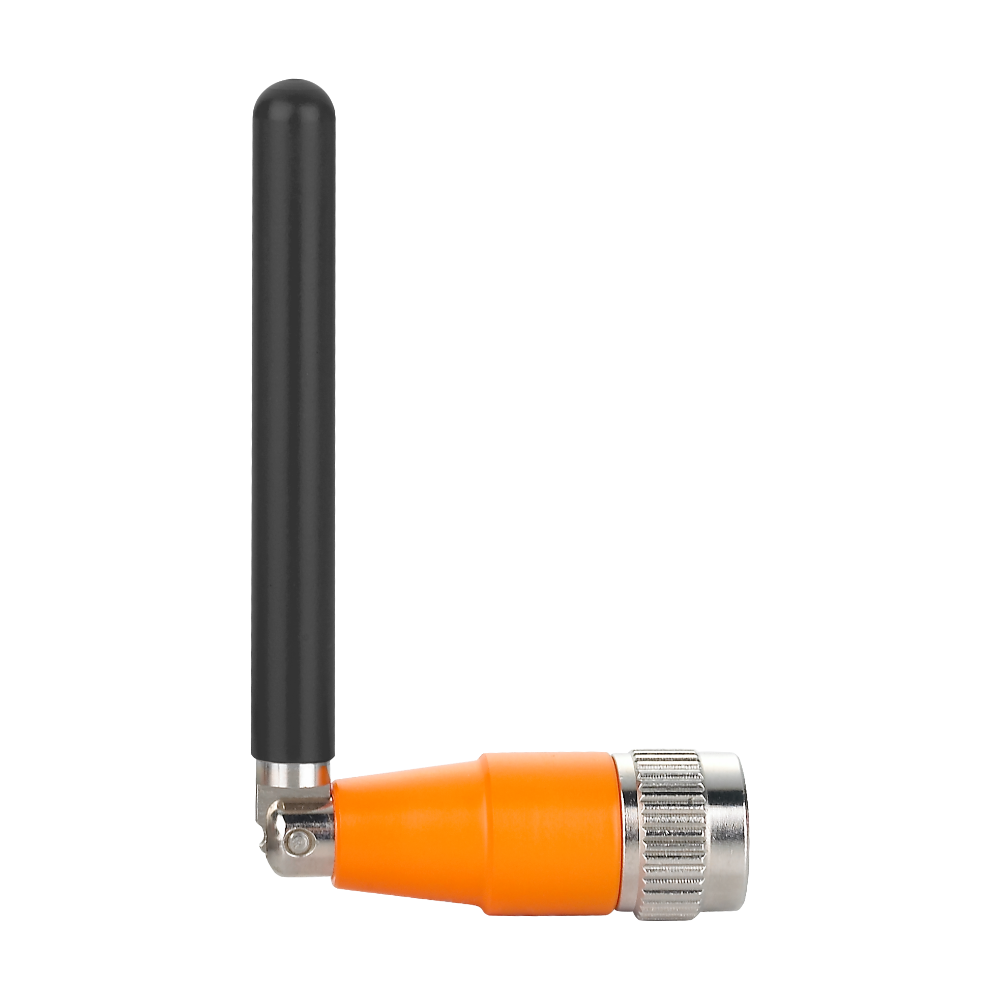

Compact, high-efficiency terminal monopole designed to provide wide coverage across cellular and GNSS frequencies in a space-constrained format. The rotatable hinged design helps optimize orientation for improved reception, while the compact profile makes it well-suited to devices that require dependable connectivity.
- Wideband support for cellular plus GNSS in one compact antenna
- Rotatable hinged design for flexible positioning
- Designed to work best when connected to the device ground plane or metal enclosure
- Ideal for assisted-GNSS capable cellular modules and compact terminals
Typical use cases include vehicle tracking systems, telematics devices, remote monitoring solutions, and routers.
Connections
1x Cellular (617-2690MHz) + GNSS (GPS/GLONASS/BeiDou/Galileo, 1561-1602MHz)
Connector & Cable
- Connector Type: SMA-M
Installation / Environmental
Hand tighten only!
Do not use the antenna as a lever when tightening to device.
Technical Specifications
Operating Temperature: -40°C ~ + 85°C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Terminal Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø10 x 72 mm
Weight: 6g
Cellular + GNSS
Frequency: 617-2690 MHz (Cellular); 1561-1602 MHz (GNSS)
Standards: 2G / 3G / 4G, NB-IoT, Cat-M, GPS / GLONASS / BeiDou / Galileo
Impedance (Ohm): 50 Ω
Polarization: Linear
VSWR: <2:1
Max. Input Power (W): 10W
Radiation Pattern: Omni directional
Gain (Max): 4.53 dBi
Connector Type: SMA(M)
