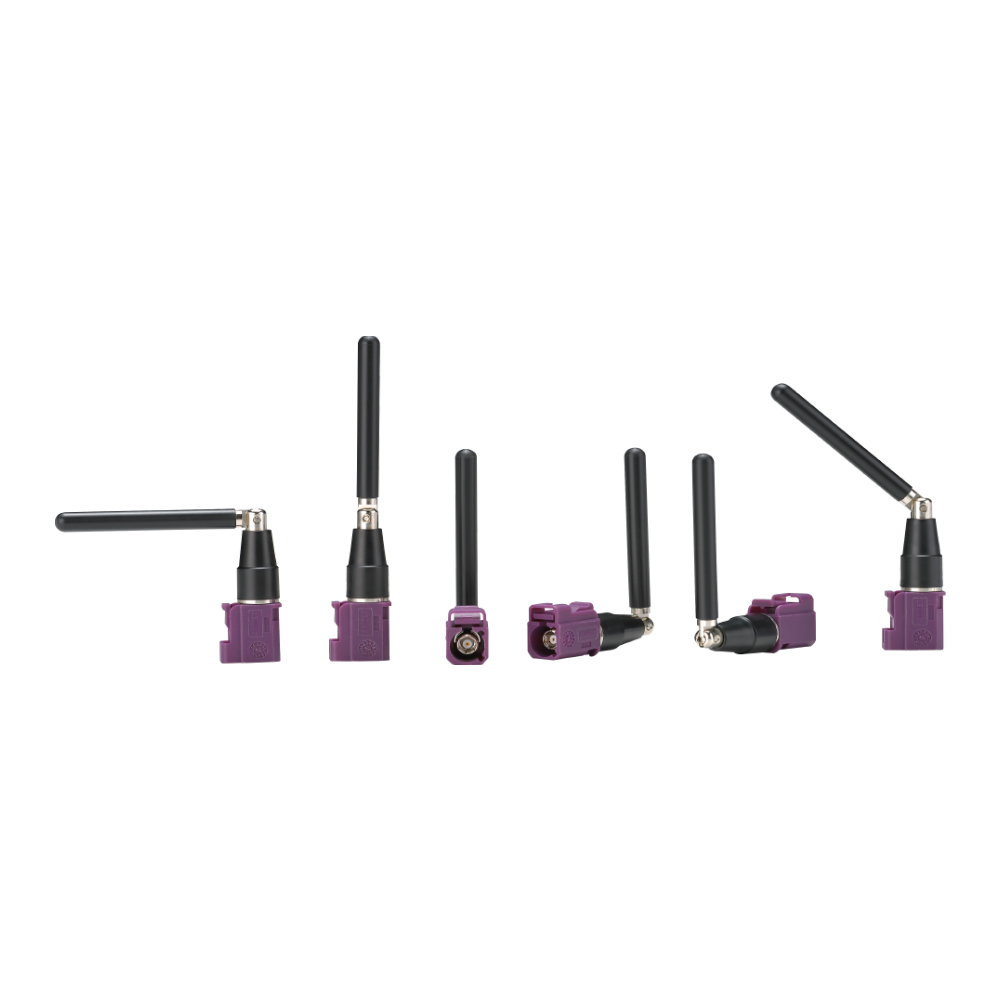

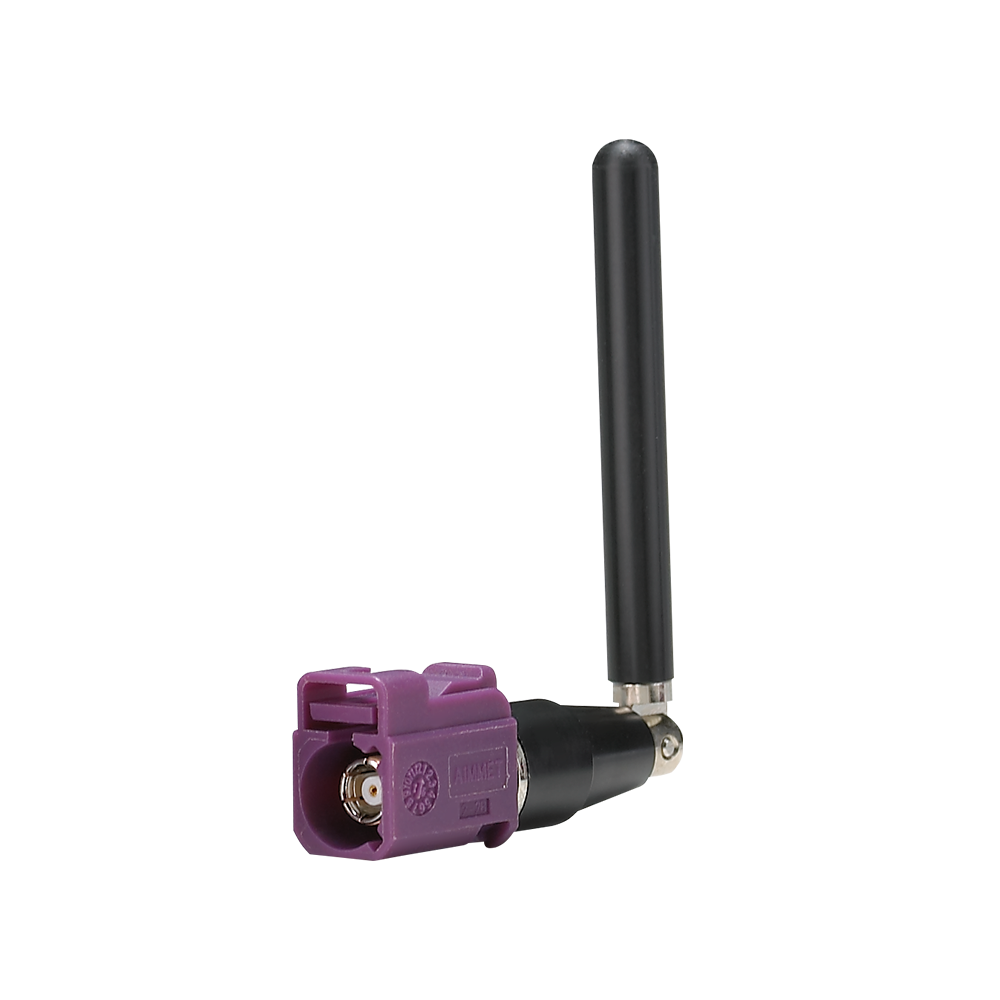

TG.08.0723 Antenna External High-Efficiency 4G/LTE, GNSS hinged connector mount Fakra Code D for Automotive telematics, Routers, Vehicle tracking devices, Remote monitoring systems

High-efficiency cellular + GNSS monopole antenna designed for crowded device environments where performance and durability matter. This compact, hinged antenna provides wide coverage across cellular and GNSS frequencies for reliable connectivity and positioning in demanding deployments.

The durable brass hinge enables 360° orientation to help optimize performance, while the locking-style connector interface is designed to resist loosening due to vibration or impact.

• Wide cellular coverage: supports 2G/3G/4G (LTE) bands
• GNSS support: compatible with GPS / GLONASS / Galileo / BeiDou
• Compact form factor: fits where larger antennas cannot
• Rotatable hinged design: enables flexible antenna orientation

Typical use cases include automotive telematics applications, routers, vehicle tracking devices, telematic devices, and remote monitoring systems.

Connector & Cable

• Connector Type: Fakra Code D SMB(F) Connector

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Connector Mount, Terminal Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: 79.5mm x 13.8mm x 11mm
Weight: 8.5g

Cellular + GNSS

Frequency: 703-803, 824-960, 1561-1602, 1710-1880, 1850-1990, 1920-2170, 2490-2690 MHz
Standards: 2G (GSM / DCS / PCS), 3G (CDMA / WCDMA / UMTS / HSPA), 4G (LTE), GNSS (GPS / GLONASS / GALILEO / BEIDOU)
Impedance: 50 Ω
VSWR: <2:1
Polarization: Linear
Radiation: Omni-directional
Input Power: 10W
Gain (Max): 2
Connector Type: Fakra Code D Bordeaux Violet SMB(F) Connector
