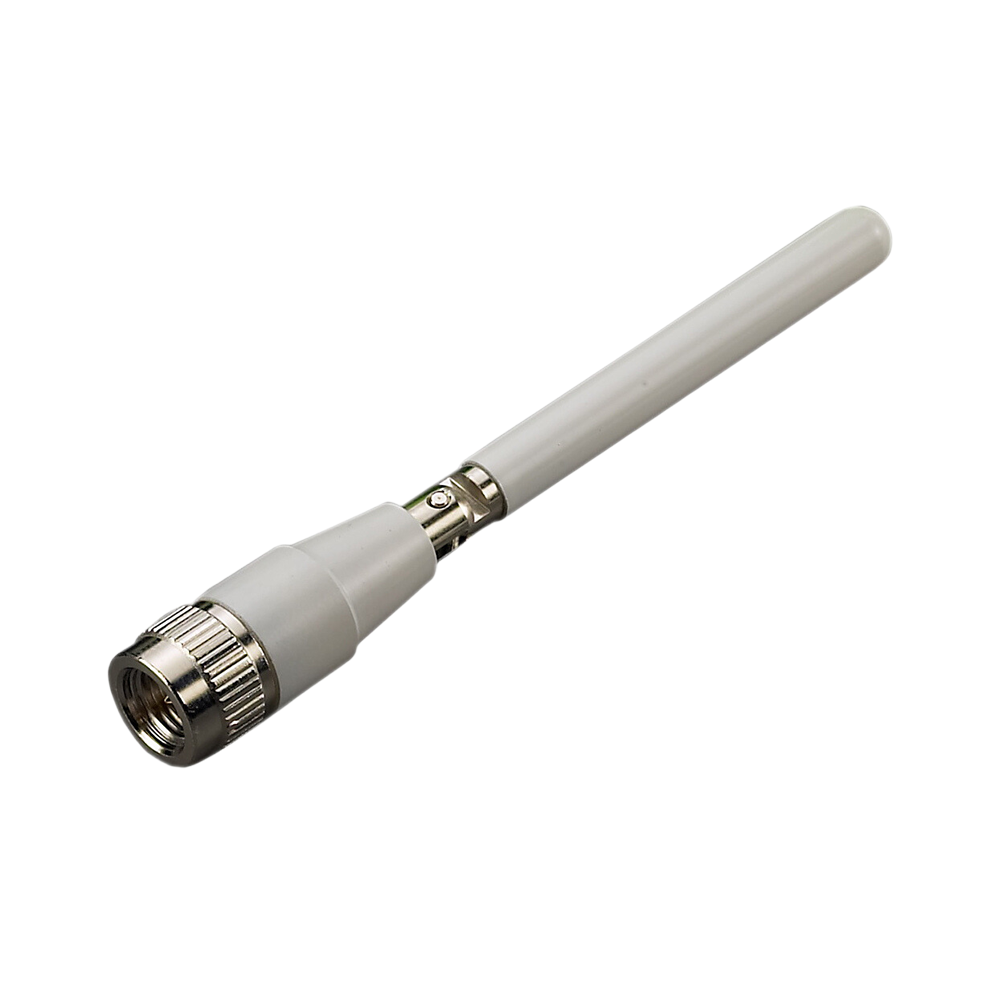

TG.09.0113W Antenna External Router 5G connector mount hinged monopole SMA-M for Routers, Vehicle Tracking Devices, Telematics Devices, Remote Monitoring Systems

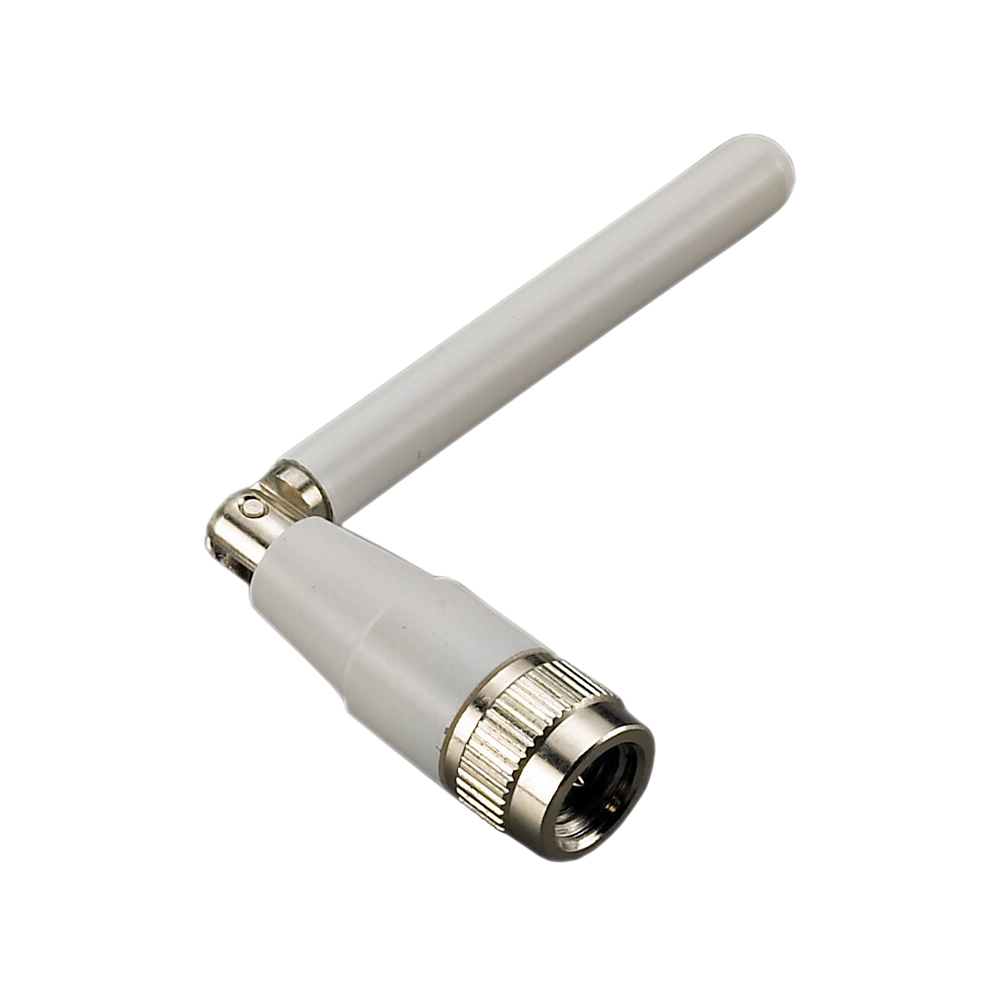

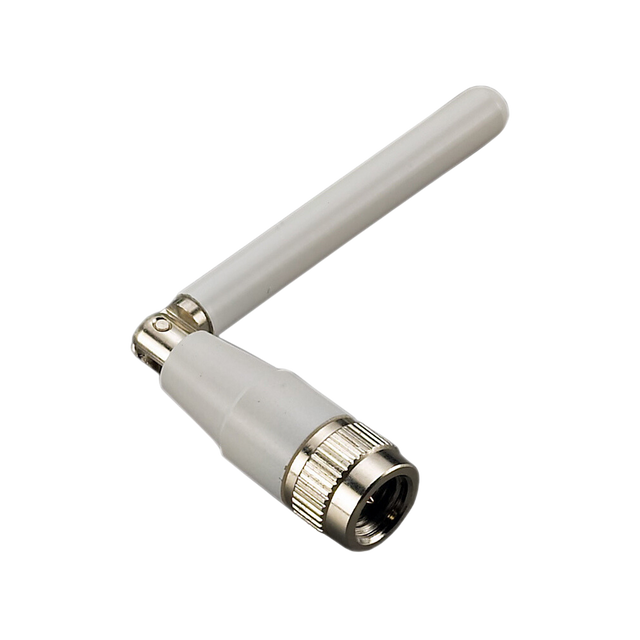

This compact hinged monopole antenna provides wideband cellular coverage across worldwide 4G bands and also supports several new 5G Sub-6 GHz bands. Its rotatable hinge helps you position the antenna for improved reception, while also reducing the risk of damage from impacts compared to fixed-angle designs.

Its small form factor and strong RF performance make it well-suited for devices such as routers, vehicle tracking and telematics units, remote monitoring equipment, and POS devices. It is also recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
Mounting: Connector Mount, Terminal Mount
Type: Single
Dimensions: 72mm Ø10mm RoHS & REACH Compliant Suitable for Non-Terrestrial Network applicati
Weight: 8g

Cellular / NTN/SatCom

Frequency: 700-3800 MHz
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Gain (Max): 2.51 dBi
Radiation Pattern: Omnidirectional
Max. Input Power: 10W
Connector Type: SMA-M (Hinged)
