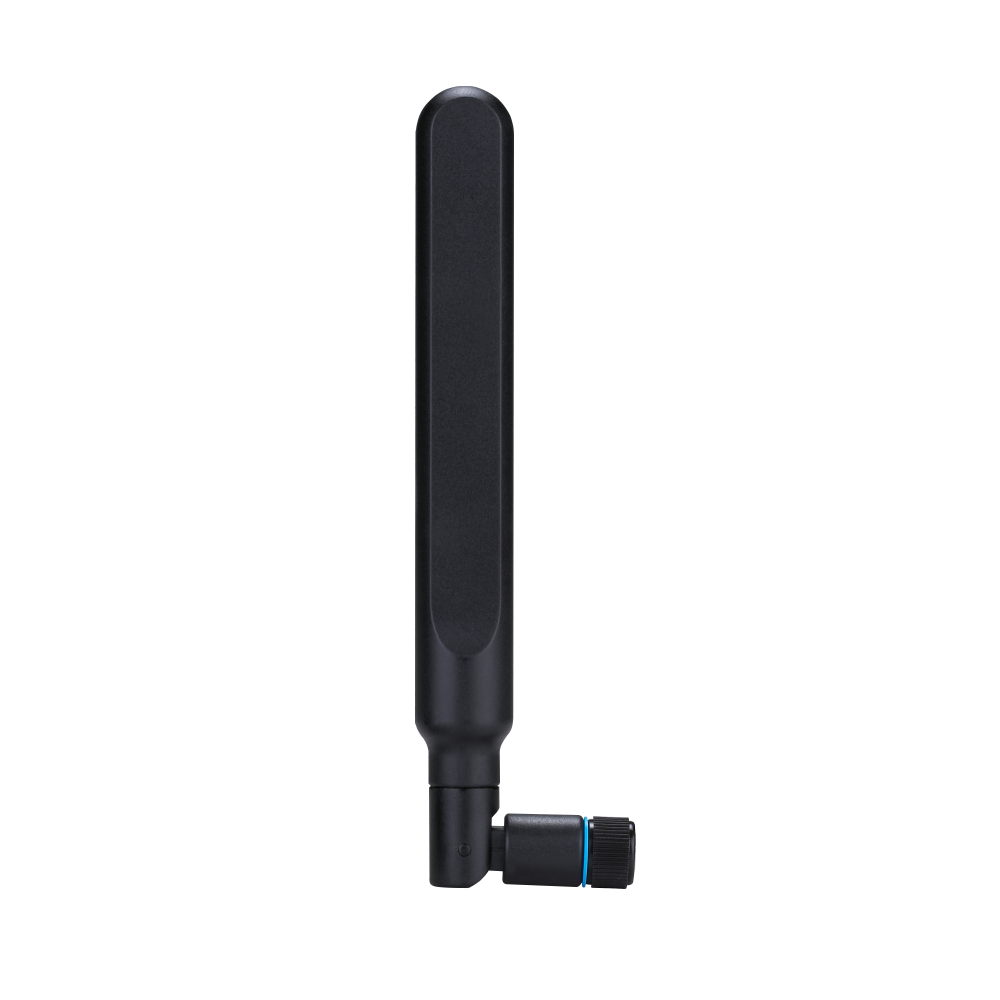

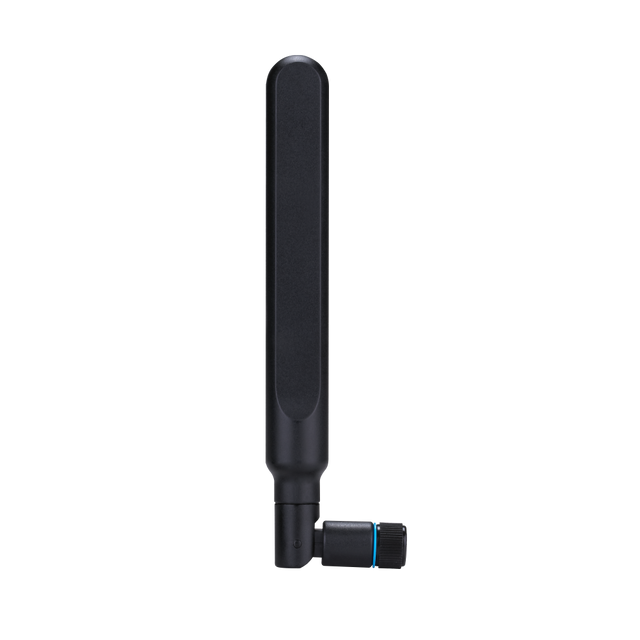

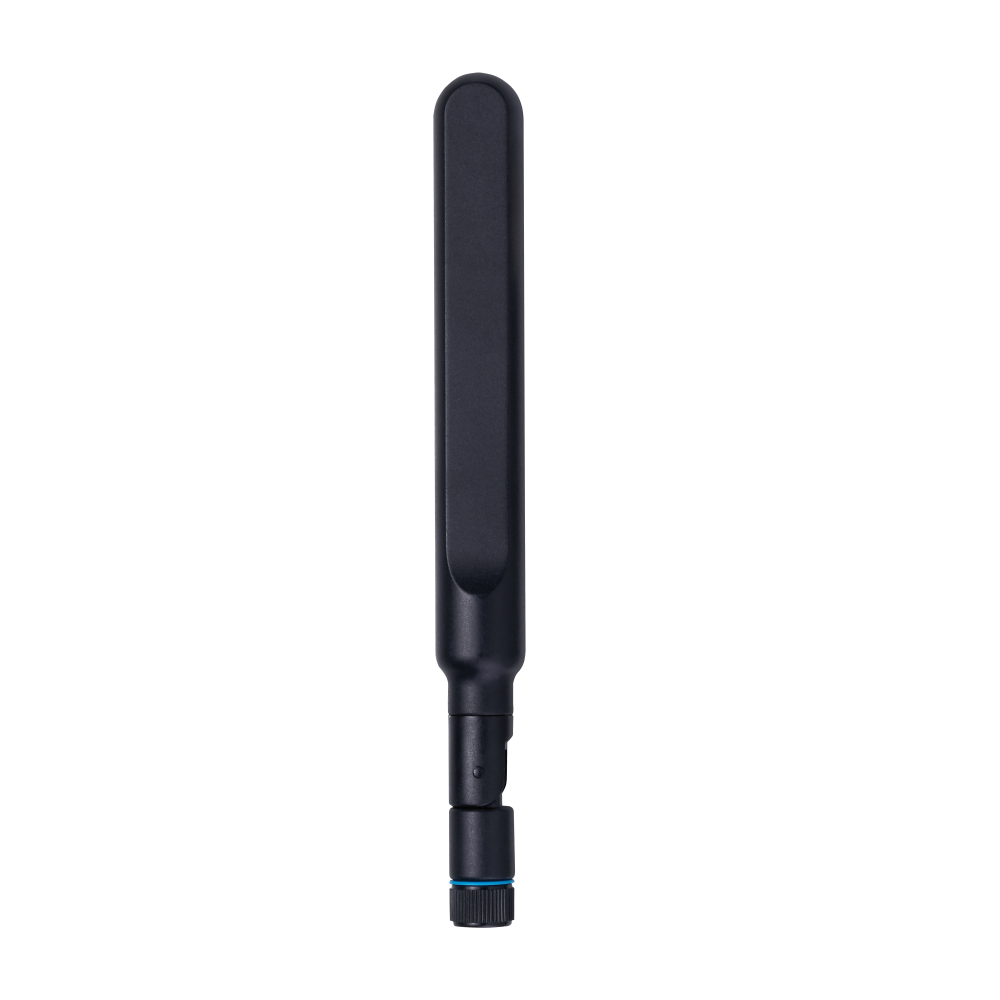

TG.10.0113 Antenna External Router MIMO Wideband 5G terminal Triton SMA-M for Gateways and Routers, In-Building Connectivity Systems, Point of Sales Kiosks, Connected Industries

Triton TG.10 is a wideband dipole terminal antenna designed for next-generation router and gateway devices. It covers the full 600–6000MHz cellular spectrum to support modern 5G/4G deployments while remaining backward compatible with legacy networks.

The robust PC+ABS enclosure and hinged terminal format make it well-suited for compact device installations and setups where a wideband terminal antenna is required. It can also be used for NB-IoT and Cat-M applications.

Typical applications include:

• Gateways and Routers
• In-Building Connectivity Systems
• Point of Sales Kiosks
• Connected Industries
• Smart Metering

Connections

1x 5G/4G Cellular 600-6000MHz

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Terminal Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Single
Dimensions: 168*18*13mm CE Certified RoHS and REACH Compliant
Weight: 24g
Material: PC+ABS
Recommended Torque for Mounting: 0.9 N∙m
Max Torque for Mounting: 1.176 N∙m

5G/4G Cellular

Frequency: 600MHz - 6000MHz
Standards: 5G/4G/3G/GSM, NB-IoT, Cat-M
Impedance: 50Ω
VSWR: <3.5
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 5W
Gain (Max): 2.51 dBi
Connector Type: SMA(M)
Connector Body Style: Hinged
Connector Polarity: Normal
