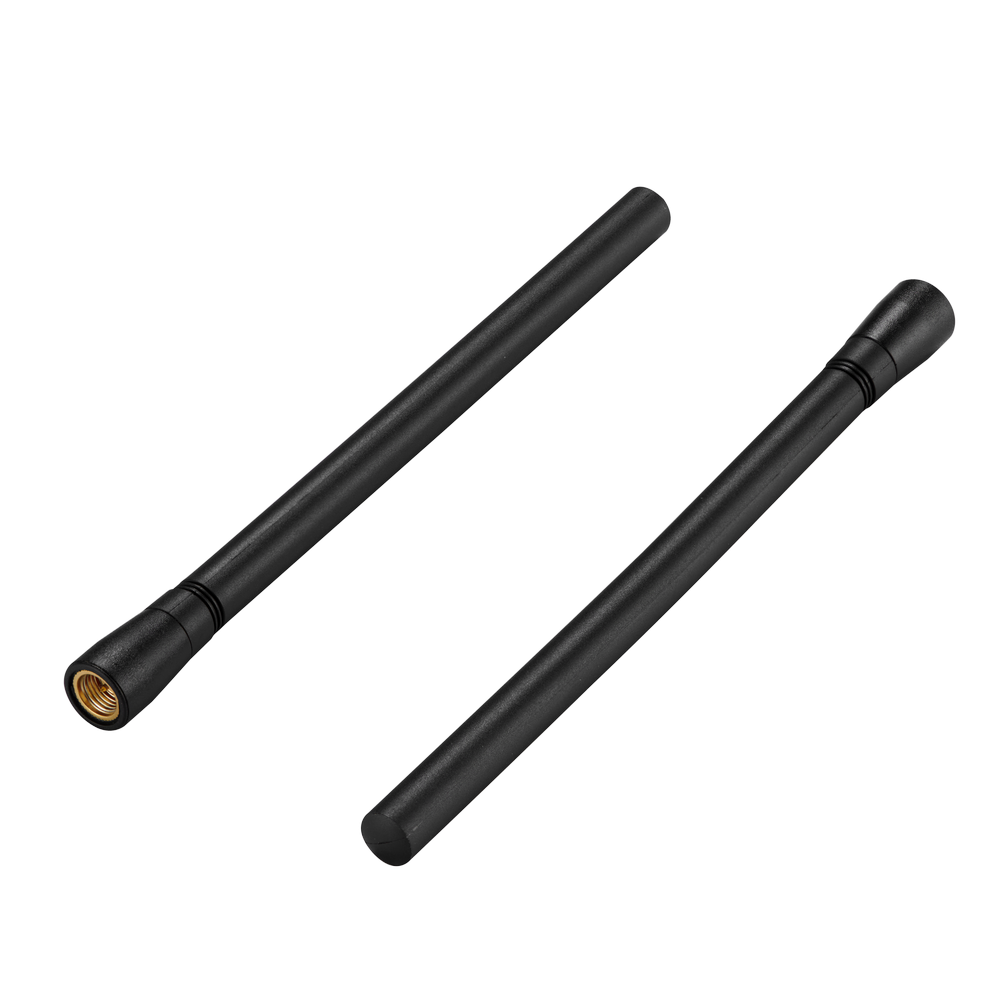

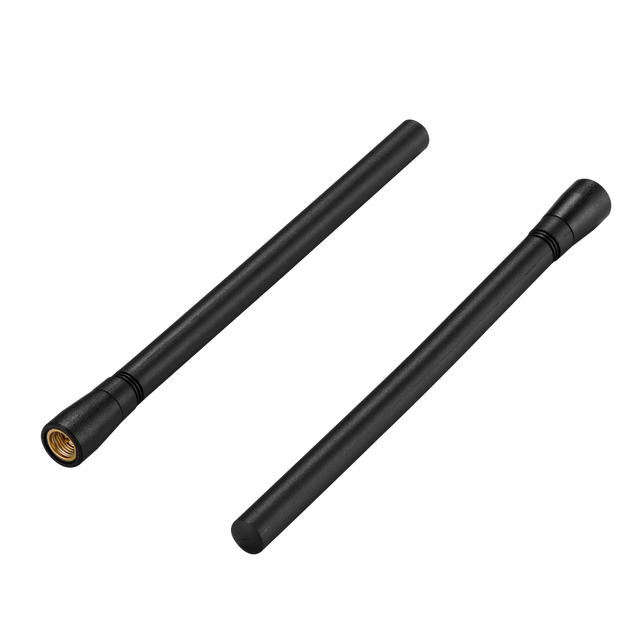

TG.13.5111 Antenna External 5G, Bluetooth terminal mount SMA-M IP65 for Industrial IoT Devices, Smart Cities Infrastructure, Consumer IoT Products, Precision Agriculture

This high-performance terminal-mount antenna is optimized for Sub-1 GHz wireless deployments, supporting a broad range of cellular and IoT use cases. It also supports 2.4 GHz Bluetooth Low Energy to enable designs where sub-1 GHz connectivity and Bluetooth can coexist in industrial and IoT environments.

• Broad Sub-1 GHz coverage for modern cellular and IoT networks
• Bluetooth Low Energy support for local connectivity and commissioning
• Omnidirectional performance to help maintain consistent coverage
• IP65-rated for added durability in challenging environments

Connections

1x 5G NR/4G Sub-1GHz (617-960MHz) + Bluetooth Low Energy (2.4GHz)

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to +85°C
Cellular Technologies: 5G
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Bluetooth, Wi-Fi, ISM
Type: Single
IP Rating: IP65
Dimensions: Ø10.7 x 135.5 mm
Weight: 14.3g

5G Cellular Sub-1GHz / Bluetooth Low Energy

Frequency: 617-698, 698-894, 880-960, 2300-2400, 2484-2690, 3300-4200 MHz
Standards: 5GNR/4G, ISM, NB-IoT, LTE Cat-M1, LoRa, Wi-Fi HaLow, Bluetooth Low Energy (BLE)
Impedance: 50 Ω
Polarization: Linear
VSWR: 3.0:1
Radiation Pattern: Omni directional
Max. Input Power: 10W
Gain (Max): 4.97 dBi
Connector Type: Fixed SMA(M) Plug
