Description

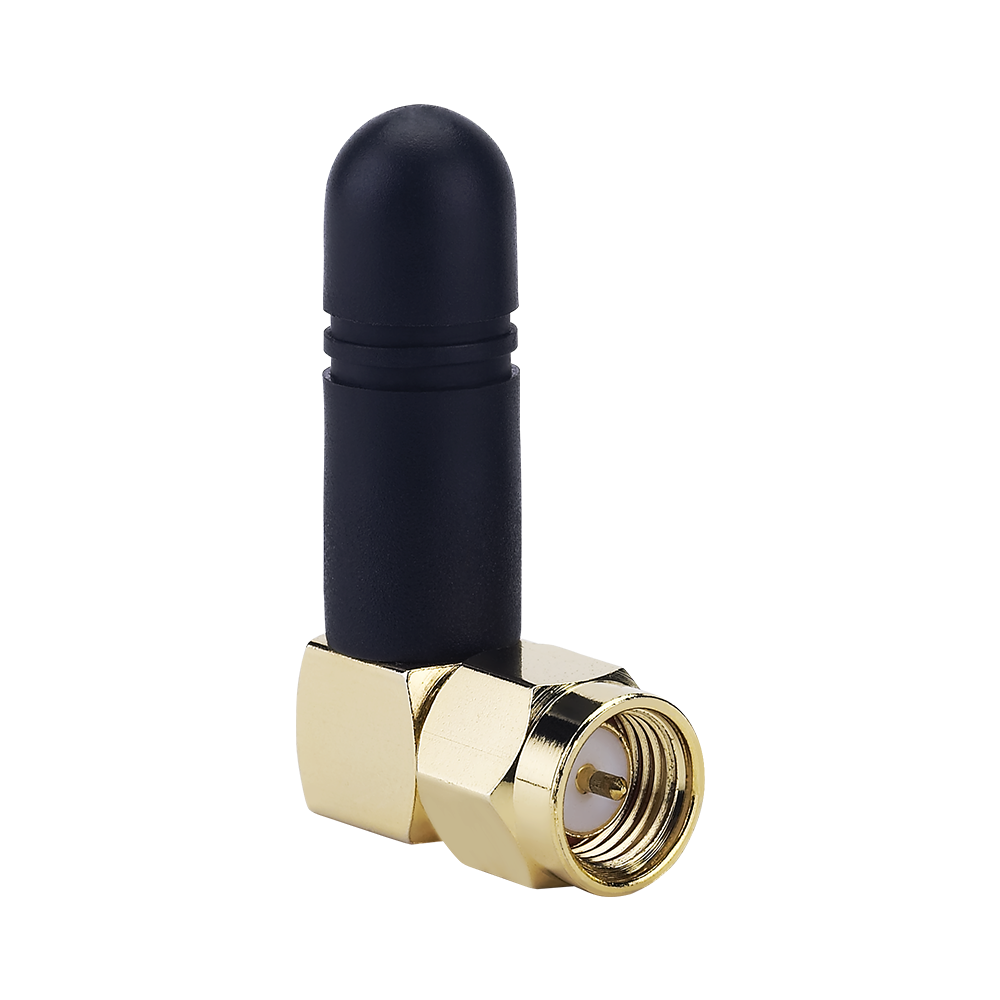

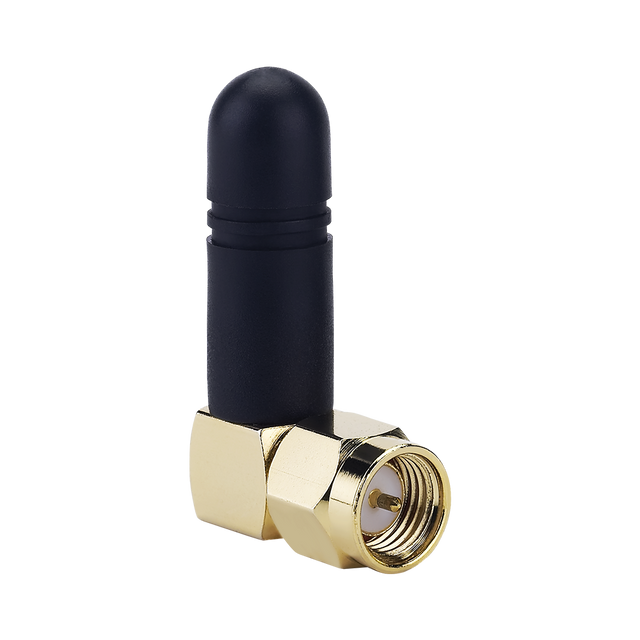

This mini quad-band helical monopole antenna is designed for compact cellular devices that need robust performance across common global bands. Its small form factor supports integration in tight spaces while remaining suitable for use inside or outside product housings.
- Quad-band cellular coverage for multi-region deployments
- Compact, rugged construction for embedded and external device housings
- Recommended for NTN devices operating on Band 255 (Global)
For smaller ground-plane devices or for devices where a ground-connection to the antenna is not possible we recommend the TG.10 or TG.30 dipole antennas which do not need to couple to ground.
Connector & Cable
- Connector Type: SMA-Male (Right Angle)
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole, Helix
Cellular Technologies: 3G
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: 28.5*17.0*7.8 mm
Weight: 7g
RoHS: Yes
Cellular / NTN (Quad-Band)
Standards: GSM/DCS/PCS/CDMA/GPRS/EDGE
Frequency: 824~880, 880~960, 1710~1880, 1880~1990 MHz
Polarization: Linear
Impedance: 50 Ohms
VSWR: 2.0:1, 2.3.0:1, 2.3:1, <2.0:1
Return Loss (dB): -10.0, -8.0, -8, -10
Efficiency (%): 45, 45, 45, 55
Gain (dBi): 0.0, 0.0, 0.5, 1.2
Average Gain (dB): -3.5, -3.5, -3.5, -2.7
Max Input Power: 5 W
Connector Type: SMA(M) Fixed Right Angle plug, 50 ohms
