Description

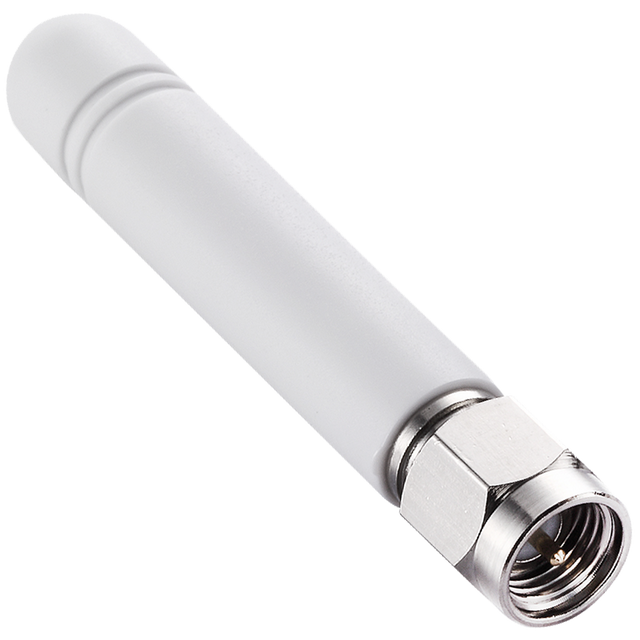

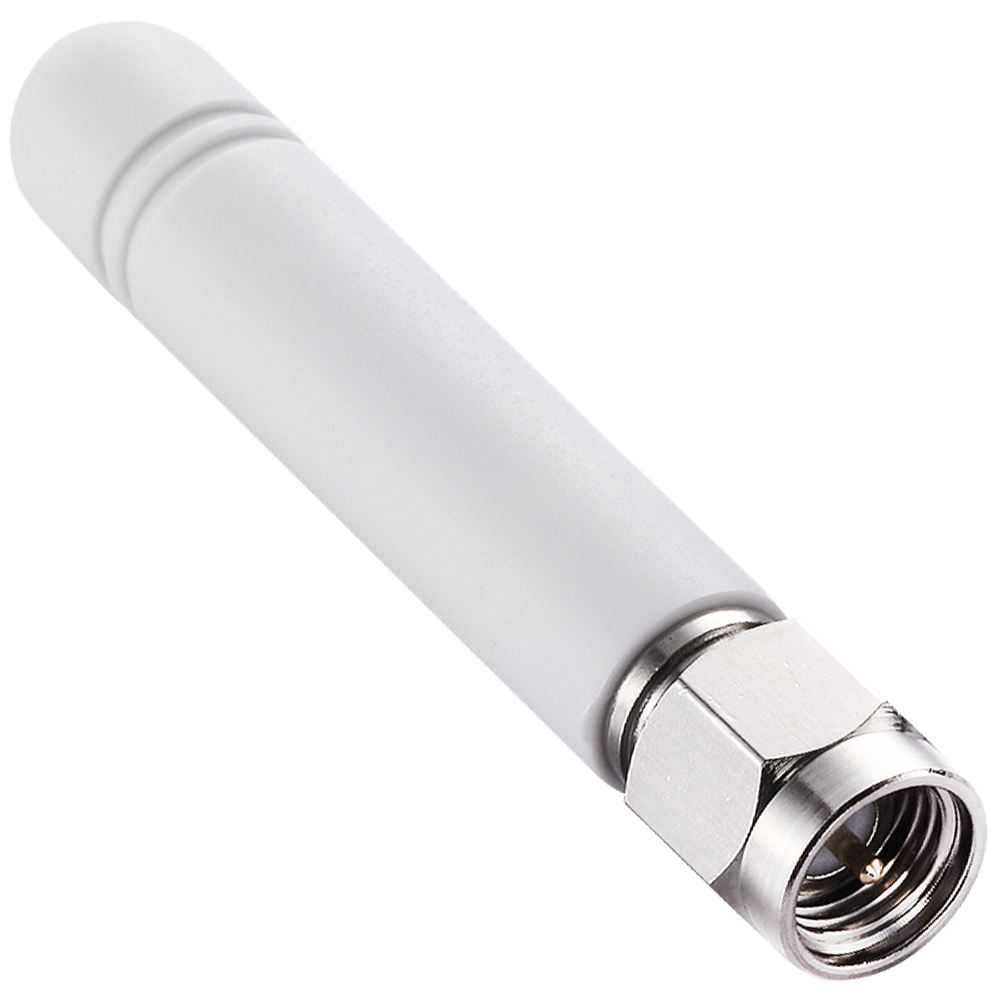

TG.22.0111W is a compact 2G/3G cellular monopole helical antenna designed for space-constrained devices that still require reliable wideband cellular performance. It is intended for connector-mount terminal use and is ground-plane dependent for efficient radiation.
- Wideband 2G/3G cellular coverage for multi-band deployments
- Compact, robust housing suited to harsh device environments
- Supports NTN device use cases (recommended for Band 255 (Global), Band 256 (Europe), and Band 23 (North America))
- Ideal for remote monitoring and telematics devices
Connector & Cable
- Connector Type: SMA-M
Installation / Environmental
At only 49mm in height, with a hardened TPEE casing, this antenna is the ideal GPRS/UMTS antenna for telematics devices where larger antennas cannot be used. Like all small monopole antennas, it must be mounted on a ground-plane to radiate efficiently. The antenna should be mounted at the edge of the ground-plane of the mainboard of the device. See below charts for analysis of performance. A larger ground-plane of more than 100mm is needed for stable performance on all bands. Also no metal should be used near the antenna, with at least 20mm of clearance required, the more clearance the better. For devices with ground-planes smaller than 100mm in length or where metal clearance is not adequate, alternative larger antennas should be considered such as the TG.30. If small size is needed, a custom tuned solution or a new design may also be necessary. Contact your regional sales office for support.
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole, Helix
Cellular Technologies: 3G
Location: External
Mounting: Connector Mount
Type: Single
Dimensions: H:48mm Ø:8mm Suitable for Non-Terrestrial Network applications
Weight: 6 g
2G/3G Cellular
Frequency: 824-2170 MHz
Standards: GPRS-GSM-DCS-PCS-UMTS-CDMA-EDGE-HSPA
Band Ranges: 824-896 MHz (GSM850); 880-960 MHz (GSM900); 1710-1880 MHz (DCS); 1850-1990 MHz (PCS); 1920-2170 MHz (WCDMA I)
Polarization: Linear
Impedance: 50 Ohms
Return Loss: ≤-5 dB
VSWR: ≤3.5
Power Handling: 20 W
Peak Gain: 1.42 dBi (GSM850), 1.91 dBi (GSM900), 2.51 dBi (DCS), 3.23 dBi (PCS), 2.89 dBi (WCDMA I)
Efficiency: 64.40% (GSM850), 68.29% (GSM900), 70.67% (DCS), 72.61% (PCS), 68.48% (WCDMA I)
Ground Plane Requirement: Ground dependent (needs mounting to ground-plane)
Connector Type: Straight SMA(M)
