Description

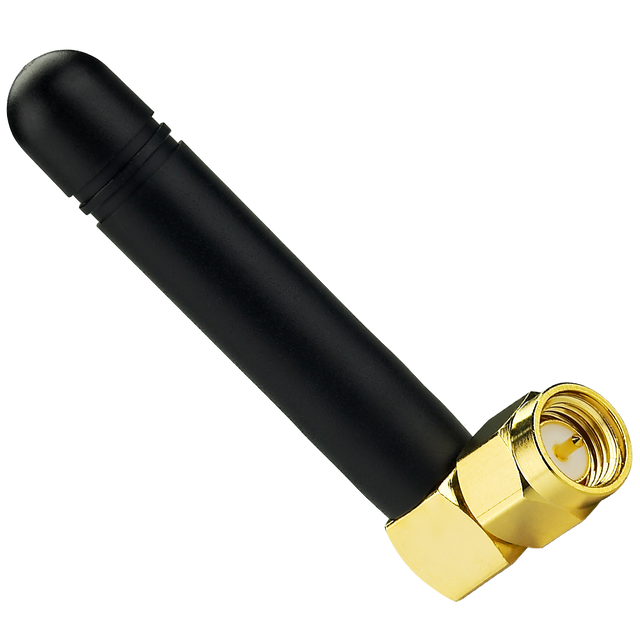

This compact penta-band cellular antenna is designed for reliable 2G/3G connectivity in space-constrained devices. Its robust, waterproof-cased construction makes it well-suited for demanding deployments such as telematics equipment.
It is also recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
Connections
1x 2G/3G Cellular 824-2170MHz
Connector & Cable
- Connector Type: SMA-M (Right Angle)
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole, Helical
Cellular Technologies: 3G
Location: External
Mounting: Connector Mount
Type: Single
Impedance: 50 Ohms
Polarization: Linear
Dimensions: 45*17mm; Ø: 7.8mm
Weight: 8g
2G/3G Cellular (Penta-Band)
Standards: GSM-DCS-PCS-UMTS-CDMA-GPRS-EDGE-HSPA; GSM850; GSM900; DCS; PCS; WCDMA I
Frequency: 824~896MHz; 880~960MHz; 1710~1880MHz; 1850~1990MHz; 1920~2170MHz
Return Loss: ≦-5dB
VSWR: ≦3.5
Peak Gain (dBi): 1.49 (GSM850); 1.93 (GSM900); 2.37 (DCS); 2.58 (PCS); 2.23 (WCDMA I)
Efficiency (%): 66.24 (GSM850); 70.86 (GSM900); 70.47 (DCS); 68.87 (PCS); 65.40 (WCDMA I)
Average Gain (dBi): -1.81 (GSM850); -1.50 (GSM900); -1.52 (DCS); -1.63 (PCS); -1.89 (WCDMA I)
Power Handling: 20 W
Connector Type: SMA(M) Right Angle
Gain (Max): 4.42
Ground Plane (for testing): 150mm*90mm
