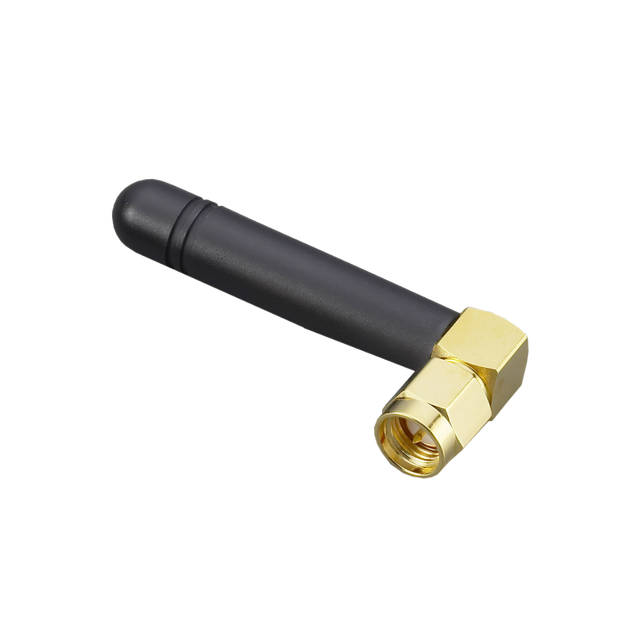

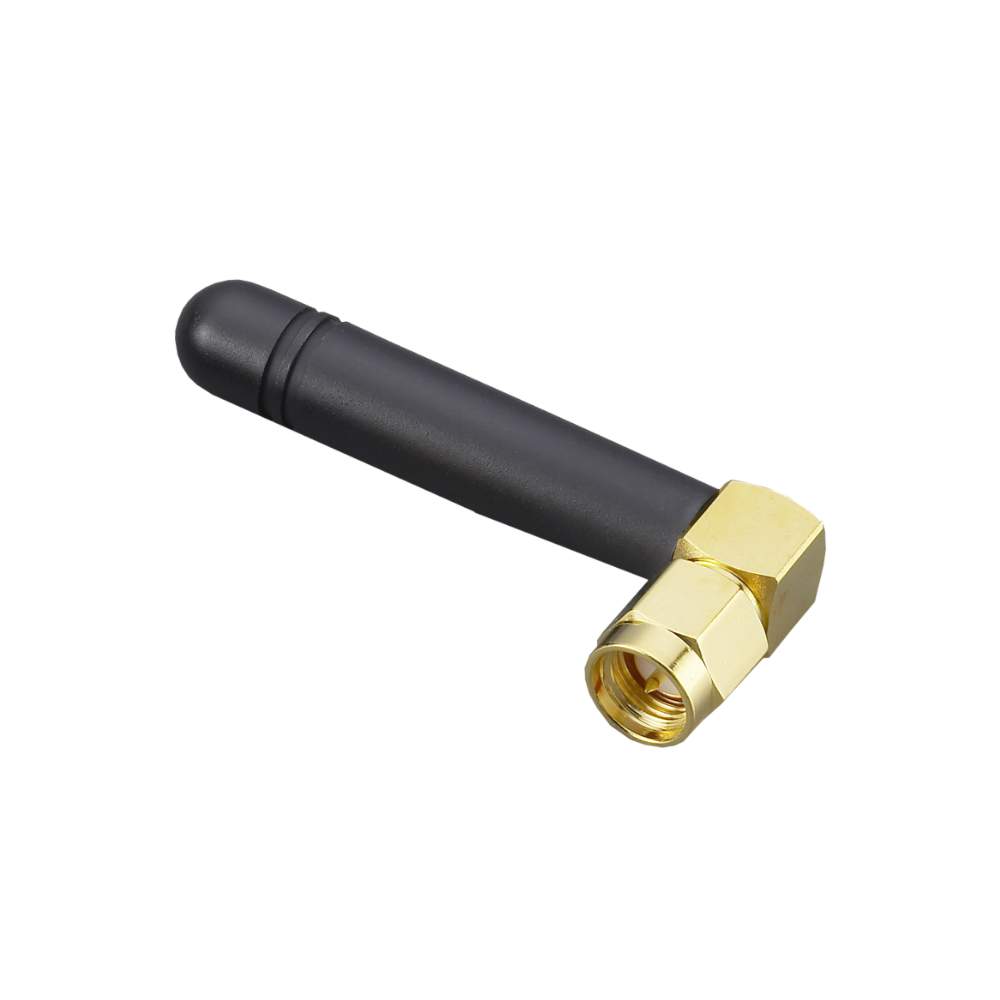

TG.22.0112.HT Antenna External High Temperature 3G connector mount monopole SMA(M)RA for Automotive, Industrial, Telematics, Non-Terrestrial Network

This compact, robust cellular antenna is designed for high-temperature environments and space-constrained devices. Its durable housing material supports demanding applications where the antenna may be installed close to heat-generating components, while maintaining reliable performance across common cellular bands.

• Built for high-temperature environments for challenging industrial and automotive deployments
• Compact connector-mount form factor for quick integration on devices
• Multi-band cellular coverage suitable for telematics and related connectivity solutions

Connector & Cable

• Connector Type: SMA-Male Connector (Right Angle)

Technical Specifications

Operating Temperature: -40°C to +150°C
Cellular Technologies: 3G
Location: External
Mounting: Connector Mount
Type: Single
Weight: 6g

Cellular (2G/3G)

Frequency: 800MHz to 2200MHz (also listed as 824MHz - 2170MHz)
Standards: GSM-DCS-PCS-UMTS-CDMA-GPRS-EDGE-HSPA
Impedance: 50 Ohms
VSWR: ≤ 2.3 (also listed as <3.5)
Polarization: Linear
Power Handling: 20W
Gain (Max): 4.61
Connector Type: SMA(M)RA

Download Datasheet PDF
