Description

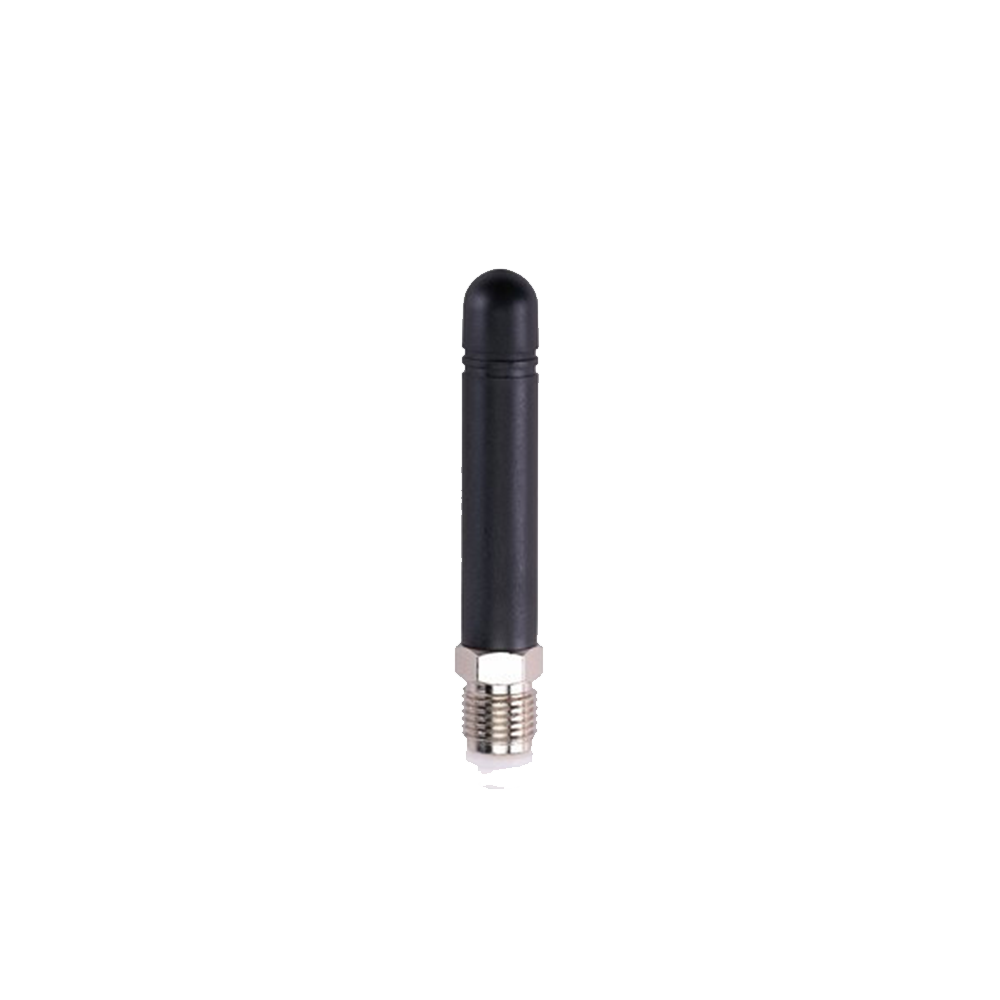

About this antenna: A compact, robust penta-band cellular monopole designed for reliable 2G/3G connectivity in a small form factor with an omni-directional radiation pattern.
- Broad 2G/3G support: Works with GSM/GPRS/CDMA/HSPA/UMTS/EDGE for wide device compatibility.
- Rugged build: Hardened TPEE casing suited to demanding field deployments.
- Optimized integration: Tuned for optimum efficiency when connected directly to the Sierra Wireless Airlink GL series programmable module.
- NTN support: Recommended for Non-Terrestrial Network (NTN) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
Connector & Cable
- Connector Type: FME(F) Straight
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole, Helical
Cellular Technologies: 3G
Location: External
Mounting: Connector Mount
Type: Single
Impedance: 50 ohm
Dimensions: 52.3*7.8 mm
Weight: 8g
2G/3G Cellular (GSM Penta-Band)
Frequency: 824-896, 880-960, 1710-1880, 1850-1990, 1920-2170 MHz
Standards: GSM/GPRS/CDMA/HSPA/UMTS/EDGE
Polarization: Linear
VSWR: 3:1, 2:1, 2:1, 2:1, 3:1
Return Loss (dB): <-5dB, <-5dB, <-10dB, <-10dB, <-10dB
Efficiency (%): 49.47, 47.33, 72.17, 72.95, 70.32
Gain (dBi): 0.88, 0.88, 3.86, 4.42, 4.42
Average Gain (dB): -3.08, -3.30, -1.42, -1.37, -1.54
Max Input Power: 5W
Radiation Pattern: Omni-Directional
Connector Type: FME(F) Straight
