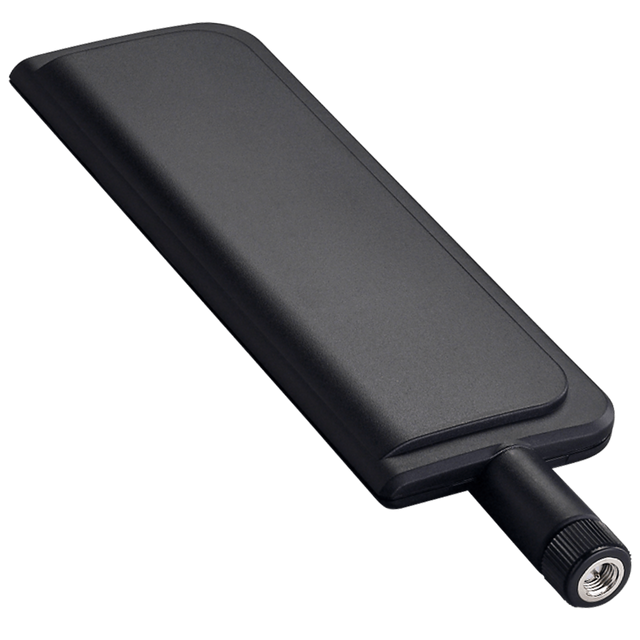

TG.30.8111 Antenna External High-Gain Router 5G, Wi-Fi, GNSS terminal Apex SMA-M IP67 for Gateways and Routers, Smart Metering, Payment Terminals, Non-Terrestrial Network (NTN)

Overview

This ultra-wideband terminal antenna is designed to deliver strong, reliable performance for cellular devices that require high efficiency and stable omnidirectional coverage across global bands. Its ground-plane-independent dipole design makes it a practical choice for compact terminals and access equipment where consistent throughput is critical.

• Wideband coverage: built to support modern cellular deployments while remaining backward compatible for legacy networks.
• Assisted positioning support: includes GPS support for Assisted GPS and E911 use cases.
• Ruggedized design: robust, UV-resistant enclosure suitable for demanding deployments.
• Use cases: gateways and routers, smart metering, payment terminals, and Non-Terrestrial Network (NTN) devices.

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
Mounting: Terminal
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Single
IP Rating: IP67 (housing), IP65 (connector)
Dimensions: 171*49mm FirstNet Ready CE Certified Suitable for Non-Terrestrial Network applic
Weight: 45.5 g

Wideband Cellular / Wi-Fi / Assisted GPS

Frequency: 600MHz - 6000MHz (includes 1575.42MHz)
Standards: 5GNR/4G/3G/2G, Wi-Fi, GPS (Assisted GPS / E911)
Impedance: 50 Ω
VSWR: 3
Polarization: Linear
Radiation Pattern: Omni
Gain (Max): 3 dBi
Connector Type: SMA Male Straight
