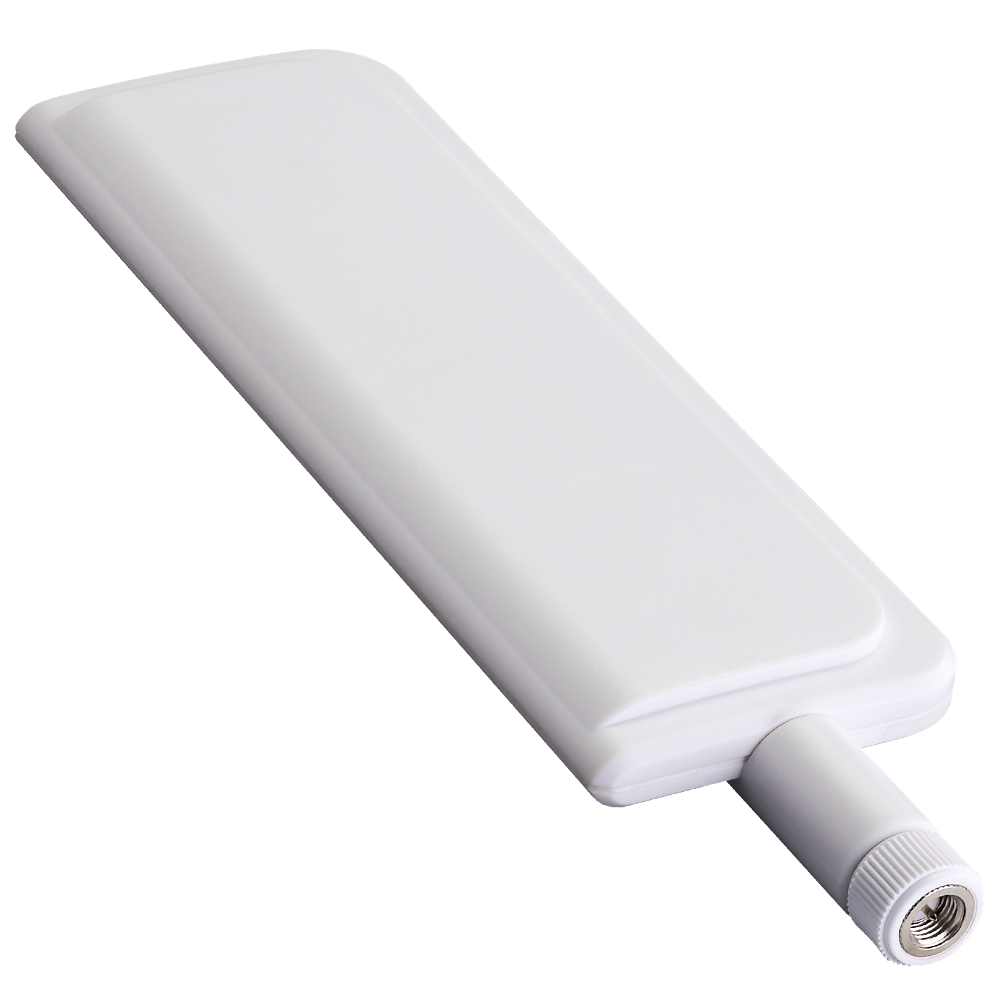

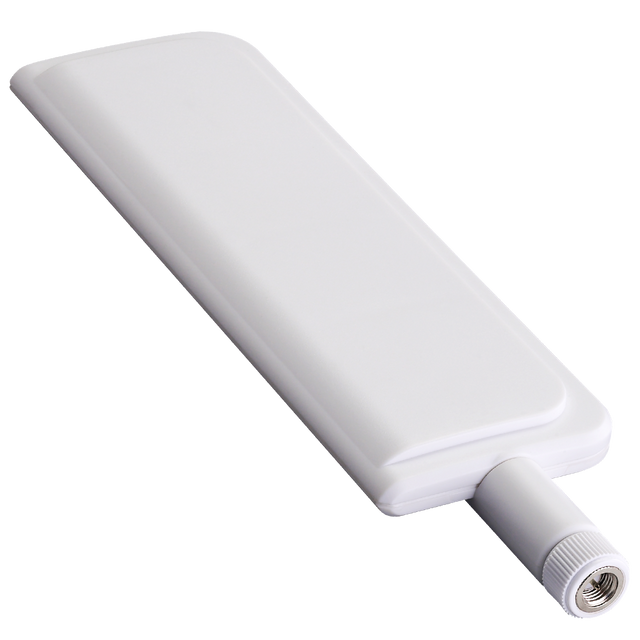

TG.30.8111W Antenna External Router 5G terminal Apex SMA-M IP67 for Gateways and Routers, Smart Metering, Payment Terminals, Non-Terrestrial Network (NTN) Devices

Wideband terminal antenna designed for 5G/4G cellular modules and devices that need strong efficiency and stable omnidirectional performance across global cellular bands.

• Ground-plane independent dipole design for reliable real-world deployment
• Wideband support for modern cellular devices, with backward compatibility for legacy networks
• Recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America)
• Robust UV-resistant, waterproof housing for demanding terminal deployments

Typical applications include: Gateways and Routers, Smart Metering, and Payment Terminals.

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
Mounting: Terminal
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Single
IP Rating: IP67 (SMA connector is IP65)
Impedance: 50Ω
VSWR: 3 MAX
Polarity: Linear
Frequency Range: 600MHz - 6000MHz
Height: 171 mm
Length: 49 mm
Width: 10 mm
Weight: 45.5g
Gain (Max): 3

Wideband Cellular

Standards: 5G/4G/3G/2G, FirstNet Ready, NTN/SatCom
Frequency: 600MHz - 6000MHz
Radiation Pattern: Omni
Polarization: Linear
Impedance: 50Ω
VSWR: 3 MAX
Gain (Max): 3 dBi
Connector Type: SMA Male Straight
