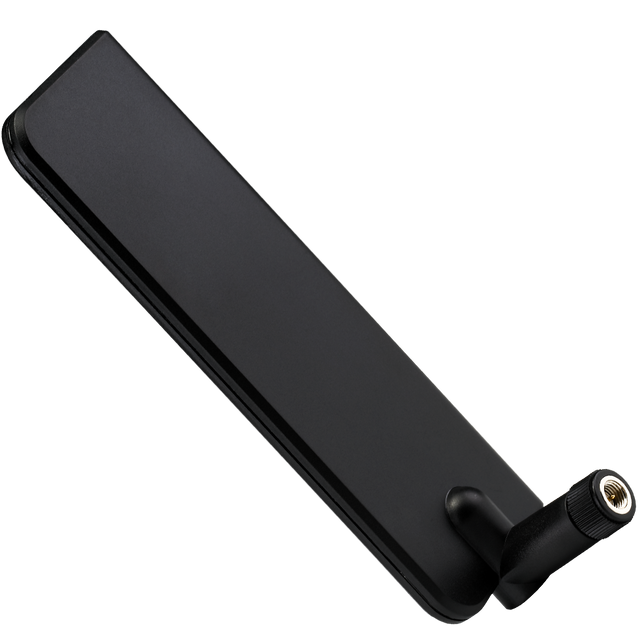

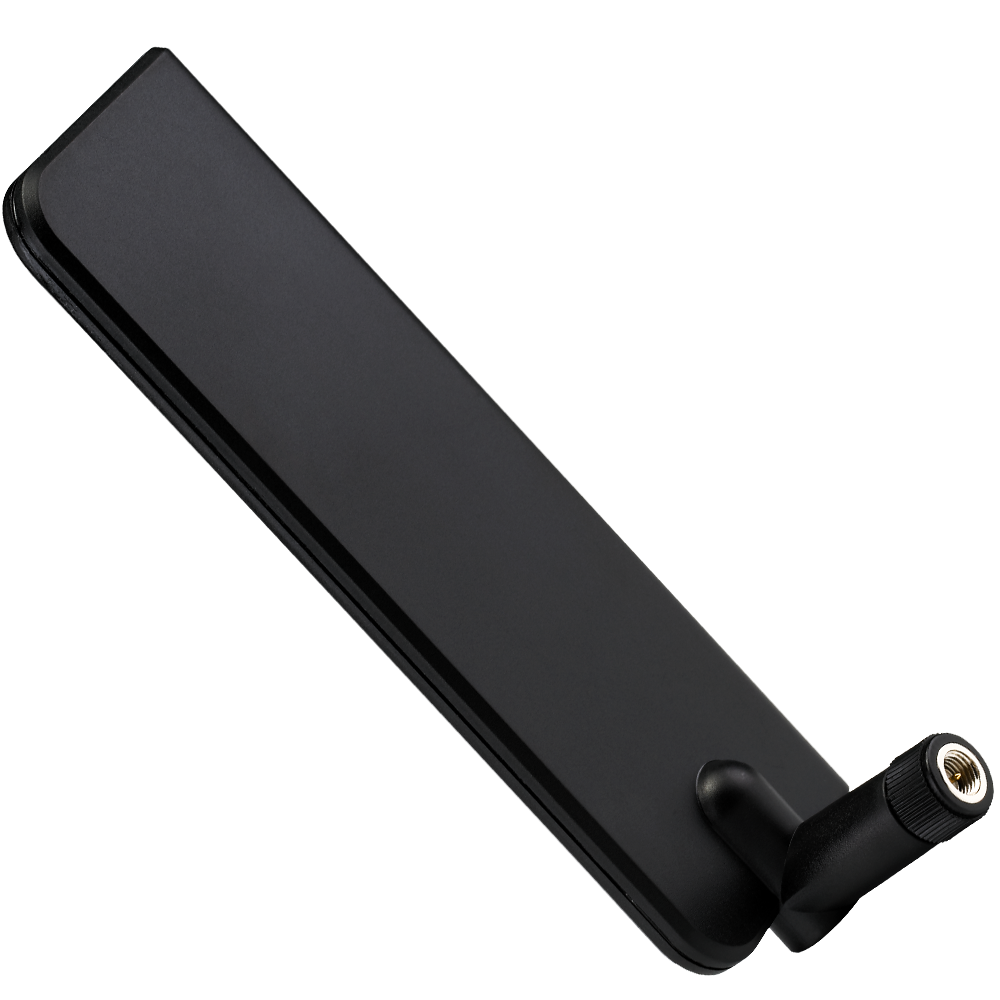

TG.30.8112 Antenna External Router 5G, 4G/LTE right-angle terminal Apex SMA-M IP65 for Routers and Gateways, Access Points, Remote Monitoring, Terminals

Apex TG.30 is an omnidirectional wideband cellular terminal antenna designed for devices that need strong efficiency and peak gain to support reliable throughput across major global 5G/4G bands.

Its fixed 90-degree right-angle design is well-suited to access points, terminals, and routers, with a robust UV-resistant, weatherproof enclosure intended for challenging environments. It is also backward compatible with 3G/2G cellular applications.

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
Mounting: Terminal, Connector Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
IP Rating: IP65
Length (mm): 49
Width (mm): 10
Height (mm): 148.6
Weight (g): 48

5G/4G (Wideband Cellular)

Frequency: 600MHz - 6000MHz
Standards: 5GNR/4G/3G/2G
Impedance: 50Ω
Polarization: Linear
VSWR: 3
Gain (Max): 3.5 dBi
Max. Input Power: 2W
Radiation Pattern: Omni
Connector Type: SMA Male
Connector Body Style: Right Angle
Connector Polarity: Normal
