Description

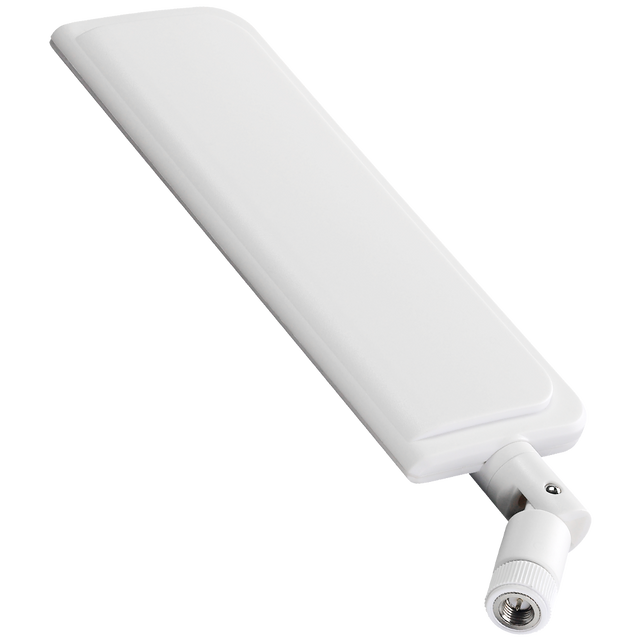

Apex TG.30 is an omnidirectional wideband terminal antenna designed for high-efficiency connectivity across major worldwide cellular bands. Its hinged, swivel form factor supports flexible orientation to help with placement and isolation when multiple antennas are used on the same device.
- Wideband performance for cellular modules, routers, terminals, gateways, and access points
- Ground-plane independent design for simpler device integration
- Robust housing built for demanding environments and high-vibration use cases
- Recommended for NTN devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America)
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Terminal
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Single
Dimensions: Straight: 186*49mm Dimensions R/A: 163mm*49mm FirstNet Ready CE Certified for Ro
Weight: 5.5g
Wideband Cellular / Wi-Fi / Assisted GNSS
Frequency: 600MHz - 7125MHz
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Gain (Max): 2 dBi
Connector Type: SMA Male Hinged 90°
