Description

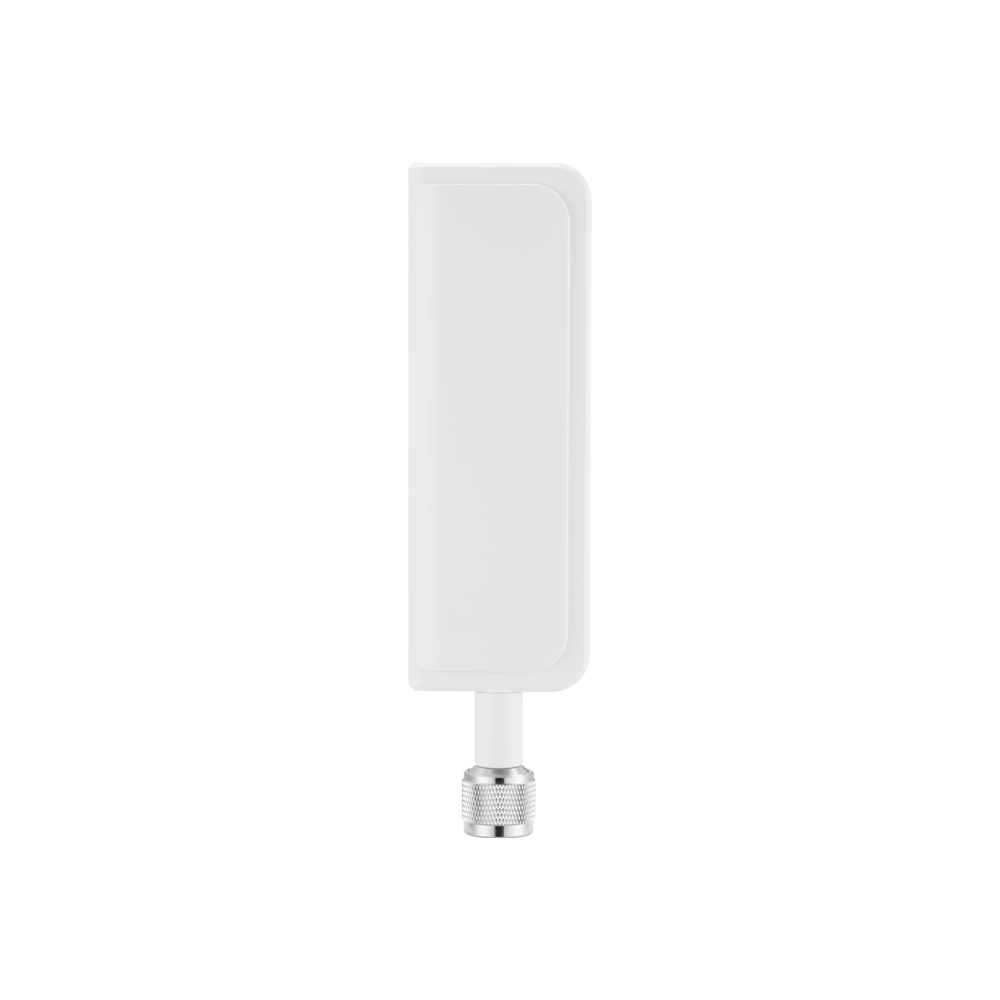

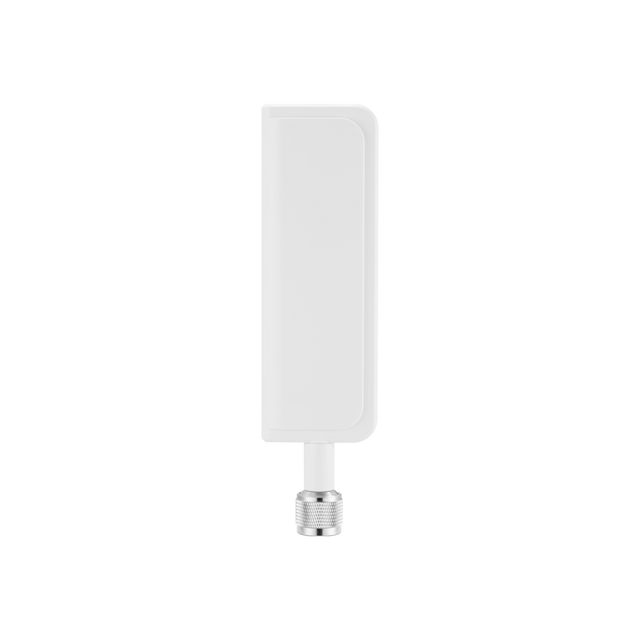

Apex TG.33 is an ultra-wideband dipole antenna designed for high-efficiency performance across major cellular bands for devices such as access points, terminals, and routers.
Its ground-plane-independent design and integrated swivel mechanism allow the antenna to be rotated around the connector to help with positioning, spacing, and isolation in multi-antenna (MIMO) systems. The omnidirectional radiation pattern is stable across bands, supporting reliable connectivity for demanding deployments.
A rugged, UV-resistant enclosure helps protect the antenna in harsh environments, making it well-suited to wireless terminals and outdoor-exposed equipment.
Typical applications include:
- Gateways and Routers
- Cameras and Security
- Public Safety
- Point of Sales Terminals
- Smart Home Automation
- Robotics / Autonomous
Connector & Cable
- Connector Type: N-Type Male
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
Mounting: Connector Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Single
IP Rating: IP67
Length: 181 mm
Width: 49 mm
Height: 20 mm
Weight: 75 g
5G/4G/3G/2G, GNSS L1, Wi-Fi
Frequency: 617-5925 MHz
GNSS Band: 1563-1587 MHz (L1)
Impedance: 50 Ω
VSWR: <2
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 10W
Peak Gain (Max): 5.95 dBi (band dependent)
Efficiency: 49.7-79.6% (band dependent)
Connector Type: N-Type Male
