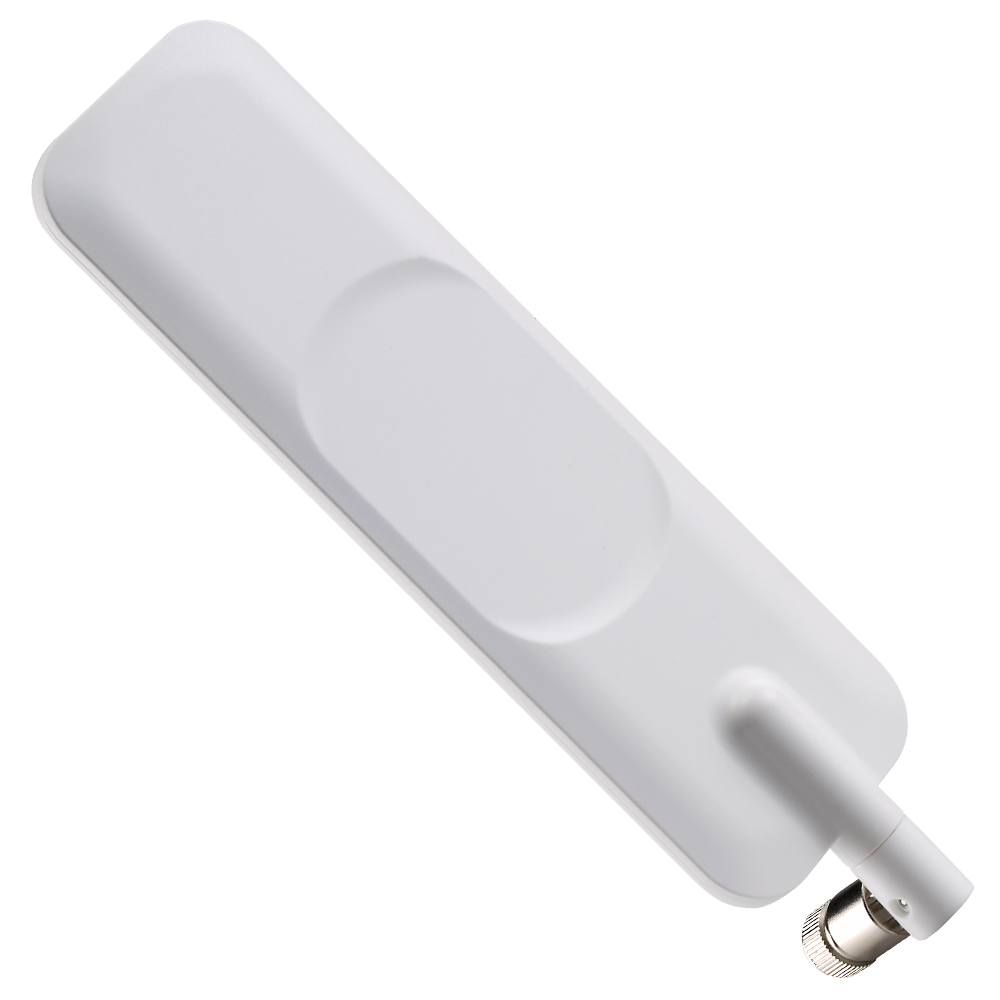

TG.35.8113W Antenna External Router 5G, GNSS, Wi-Fi 6E/7, Cat-M, NB-IoT swivel dipole terminal Apex II SMA-M for Access Points, Terminals, Routers, Public Transportation

Apex II is a wideband terminal antenna designed to support modern cellular devices where high efficiency and reliable throughput are required across global bands. Its slim, ground-plane-independent dipole design helps maintain stable performance across operating conditions.

• Wideband coverage for cellular and Wi-Fi operation in a single terminal antenna
• High-efficiency dipole design to help maximize link performance
• Swivel/hinged mechanical design for flexible positioning in space-constrained installations
• Reinforced hinge designed for vibration environments
• Omnidirectional performance with stable radiation patterns across bands

Typical use cases include access points, terminals, routers, and connectivity on public transportation. Support for Assisted GPS/E911 use cases is also included.

Connections

1x 5G/4G/Cat-M/NB-IoT/GPS/Wi-Fi 600-7125MHz

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Terminal Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, ISM
Type: Single
Dimensions (Straight): 224 x 57.6 x 13mm
Dimensions (Right-Angle): 196.9 x 57.6 x 32 mm
Weight: 75g
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 1.98

Wideband Cellular / Wi-Fi / GNSS

Frequency: 600-7125MHz
Standards: 5GNR/4G/LTE/Cat-M1/NB-IoT/GPS/Wi-Fi
Connector Type: SMA(M)
Radiation Pattern: Omni
