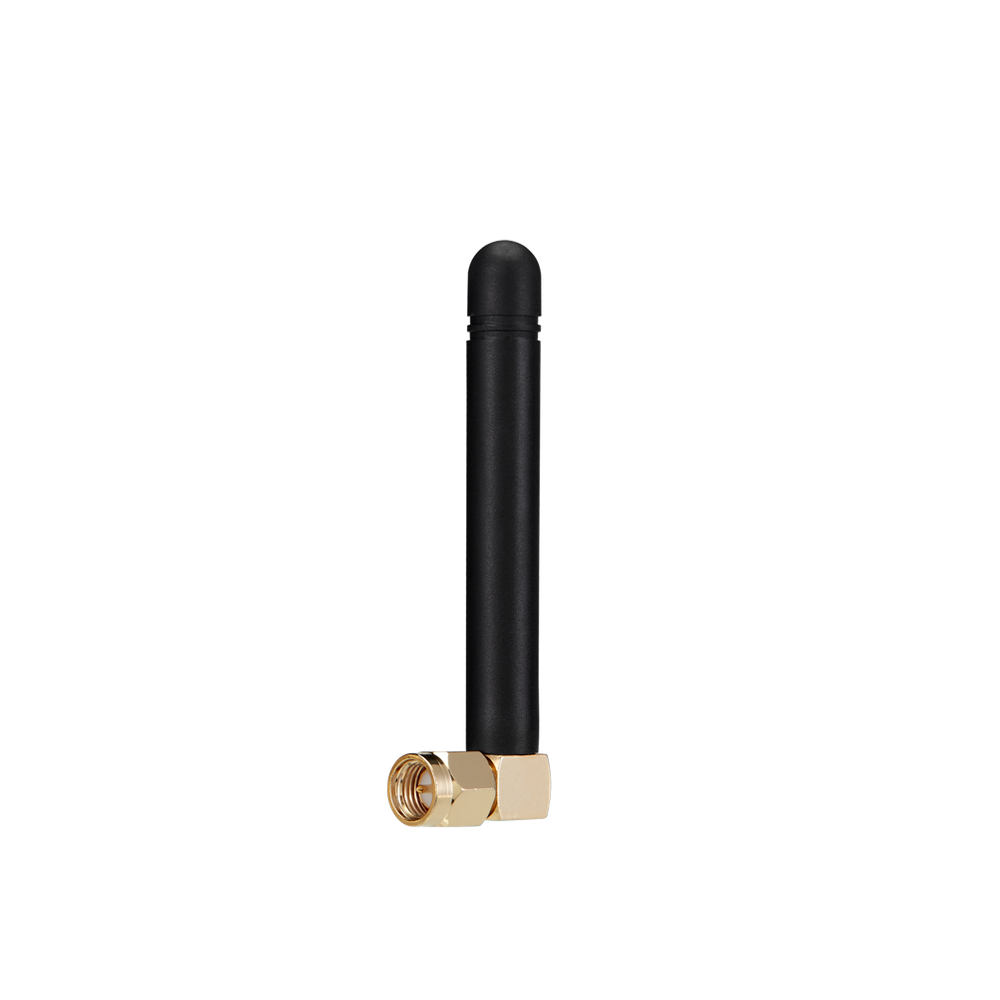

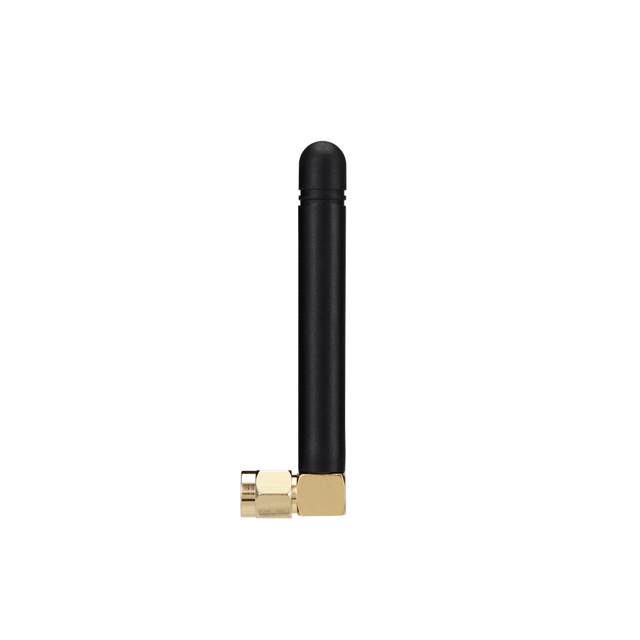

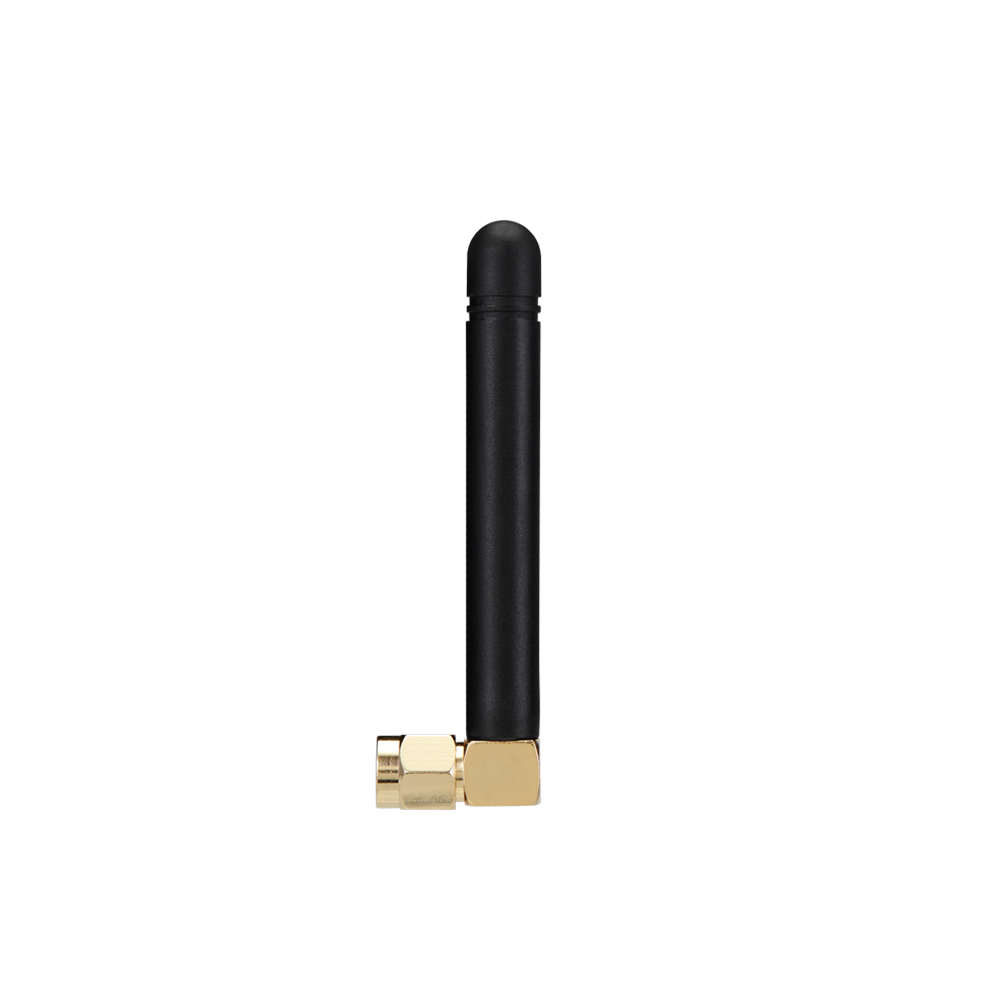

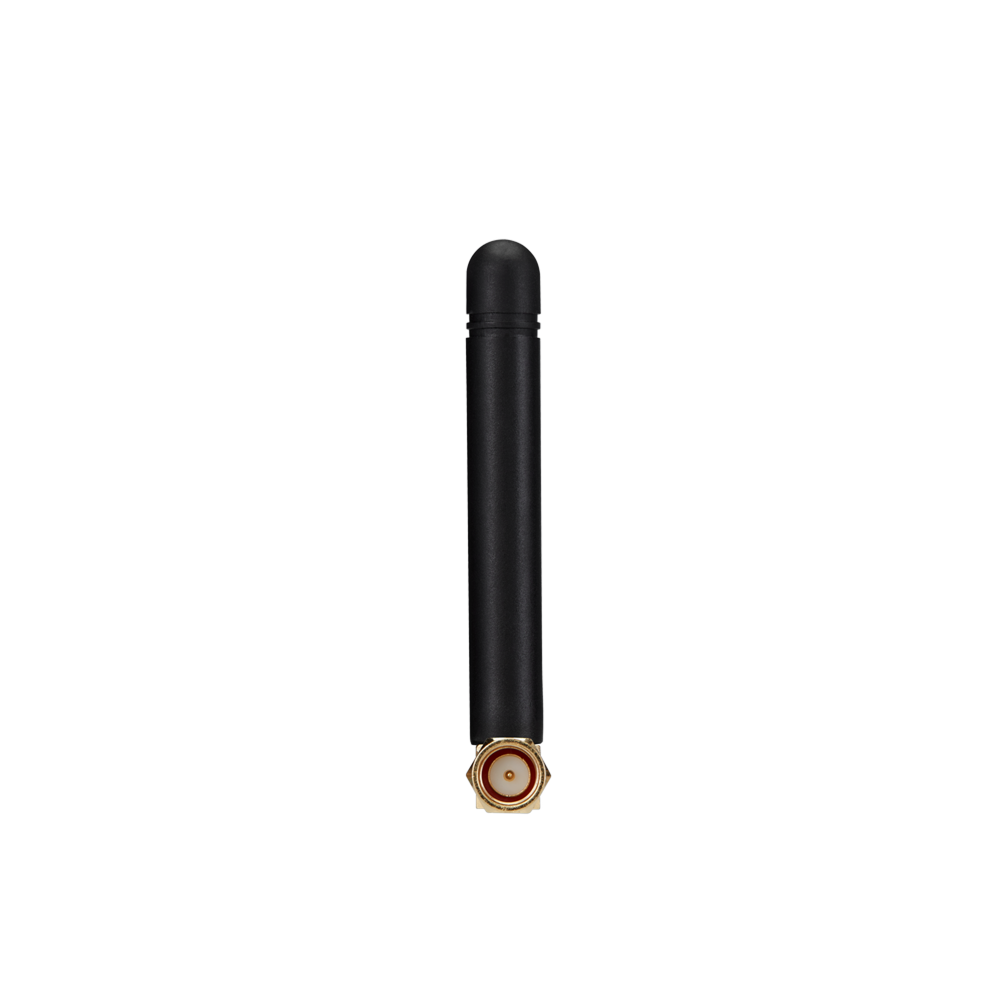

TG.42.0112 Antenna External Router Wideband 5G terminal mount monopole SMA-M RA for Gateways and Routers, Remote Monitoring, Industrial IoT, Smart Meters

This compact terminal-mount monopole antenna is designed for direct attachment to devices, providing reliable wideband cellular coverage in a small, lightweight form factor. It is suited to connected equipment that benefits from efficient performance across major worldwide cellular bands, including support for Band 71.

• Compact terminal-mount form factor for space-constrained devices
• Wideband cellular coverage for global deployments
• Designed for demanding applications where size and weight matter (e.g., UAVs and robotics)

Typical applications include: Gateways and Routers, Remote Monitoring, Industrial IoT, Smart Meters.

Connections

1x 5G/4G/LTE 600-3000MHz

Connector & Cable

• Connector Type: SMA-M Right Angle

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
Mounting: Terminal Mount
Type: Single
Dimensions: 62.5 x 17.5 x 8 mm RoHS & Reach Compliant
Weight: 8 g

Cellular (5G/4G/LTE)

Frequency: 600-3000 MHz
Impedance: 50Ω
Polarization: Linear
VSWR: <2
Gain (Max): 3.62 dBi
Max. Input Power: 5W
Radiation Pattern: Omni
Connector Type: SMA (M)RA
