Description

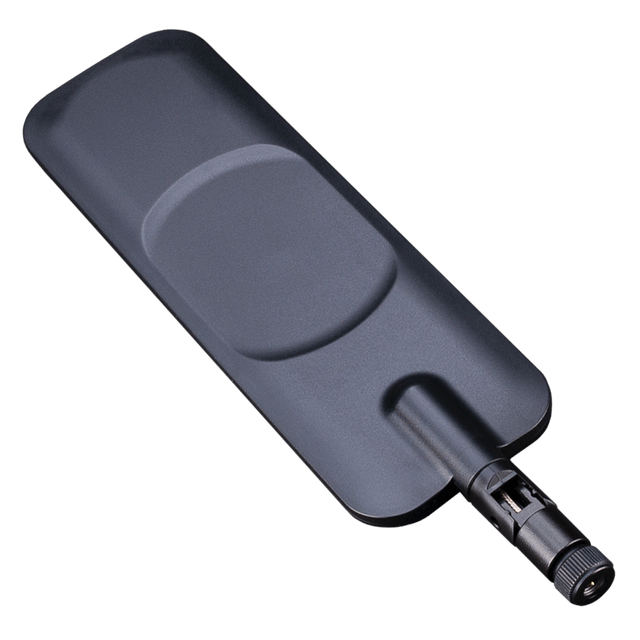

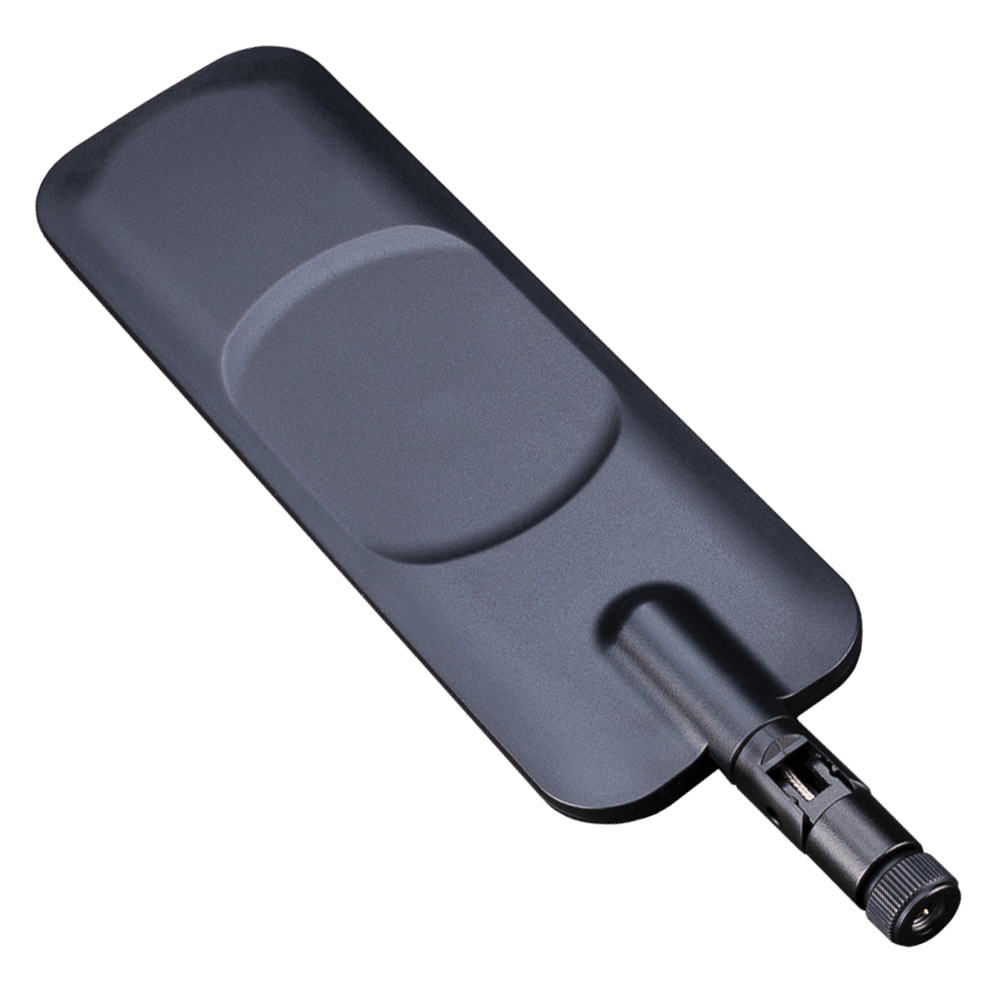

Apex III is an ultra-wideband swivel terminal antenna designed to deliver high efficiency across a wide operating spectrum for modern wireless devices.
Designed for 5G/4G modules and devices, it supports worldwide cellular operation with backward compatibility for 3G/2G use cases. Its slim-line form factor is ground-plane independent, helping it perform reliably across bands without requiring a dedicated device ground connection.
- Ultra-wideband coverage for cellular plus ISM and Wi-Fi frequency ranges
- Swivel + reinforced 90° hinged design for tight spaces and vibration-prone environments
- Ideal for routers, terminals, and access points where stable omni-directional performance is required
- Recommended for NTN devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America)
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
Mounting: Connector Mount
Short-Range Wireless Standards: Wi-Fi, ISM
Type: Single
Dimensions: 218 * 58mm Connector Customizable RoHS & Reach Compliant Suitable for Non-Terres
Weight: 75g
5G/4G/3G/2G (Wideband) + ISM/Wi-Fi
Frequency: 400MHz - 6000MHz
Standards: 5G NR, 4G/LTE, 3G, 2G, ISM, Wi-Fi
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Gain (Max): 1.51
Radiation Pattern: Omnidirectional
Max. Input Power: 5 W
Connector Type: SMA Male Hinged 90°
