Description

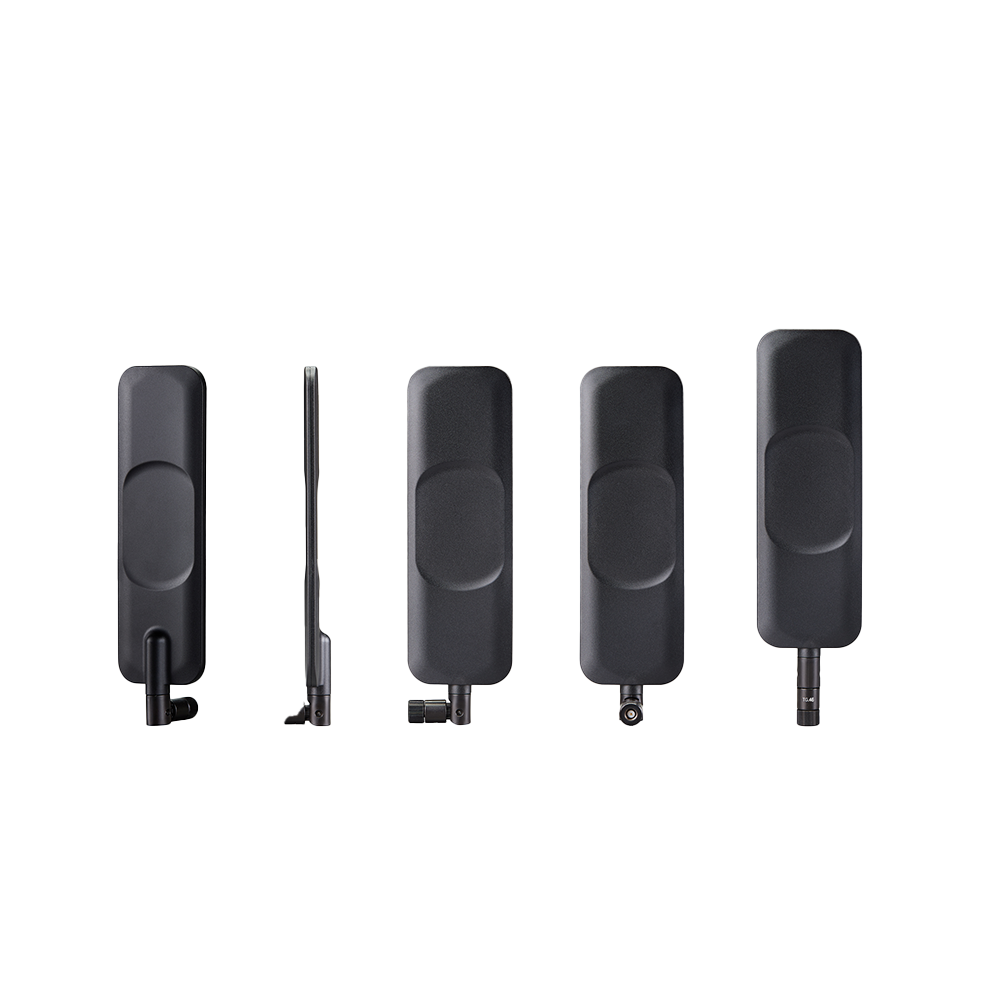

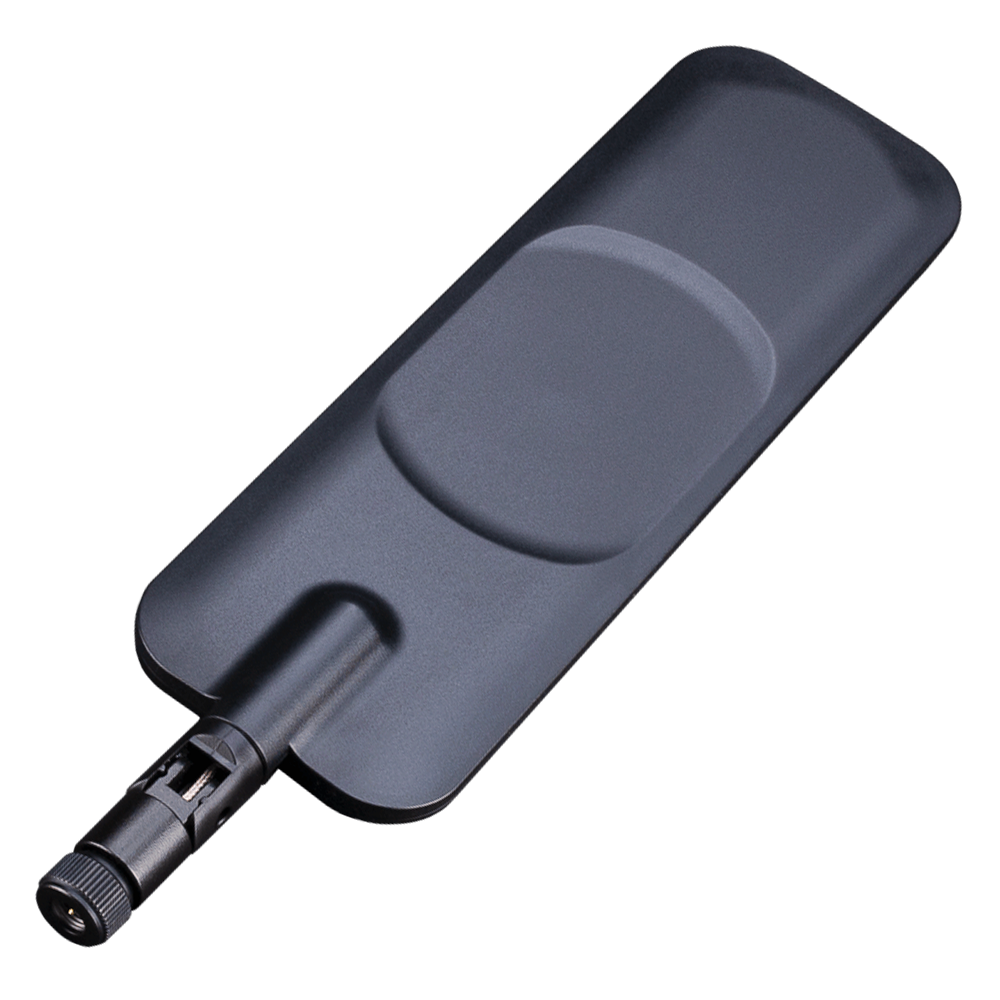

Apex IV is a wideband dipole terminal antenna designed to cover sub-6GHz cellular bands for reliable, omnidirectional performance across a broad spectrum. Its ground-plane independent dipole design helps maintain stable performance across bands, while the hinged swivel mechanism supports flexible positioning in tight installations.
- Wideband coverage: Supports wideband operation for modern cellular devices and modules.
- Ground-plane independent dipole: No ground plane required.
- Robust hinged swivel: Designed to maintain position in environments prone to vibration.
- Use cases: Suitable for access points, terminals, and routers, including high-throughput applications such as streaming and public transportation connectivity.
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Terminal Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, ISM
Type: Single
Dimensions: 218 * 58mm RoHS & Reach Compliant
Weight: 75g
5G/4G Cellular, Wi-Fi, ISM (Wideband)
Frequency: 450MHz - 6000MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA, Wi-Fi
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni-Directional
VSWR: 2:1
Gain (Max): 3.37
Max Input Power: 10W
Connector Type: SMA Male Hinged 90°
