Description

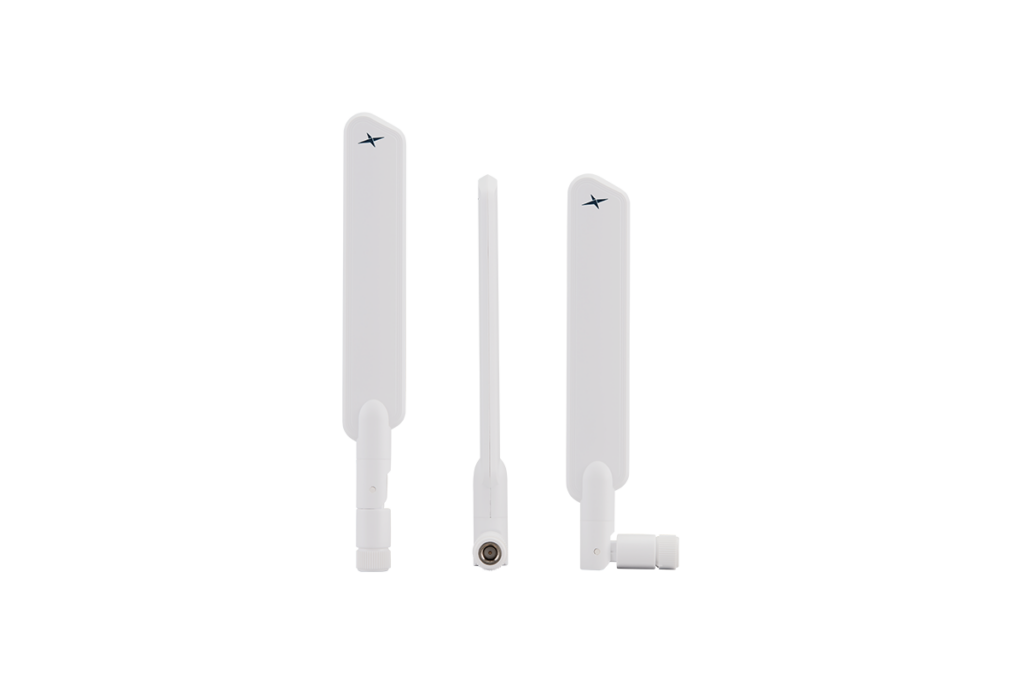

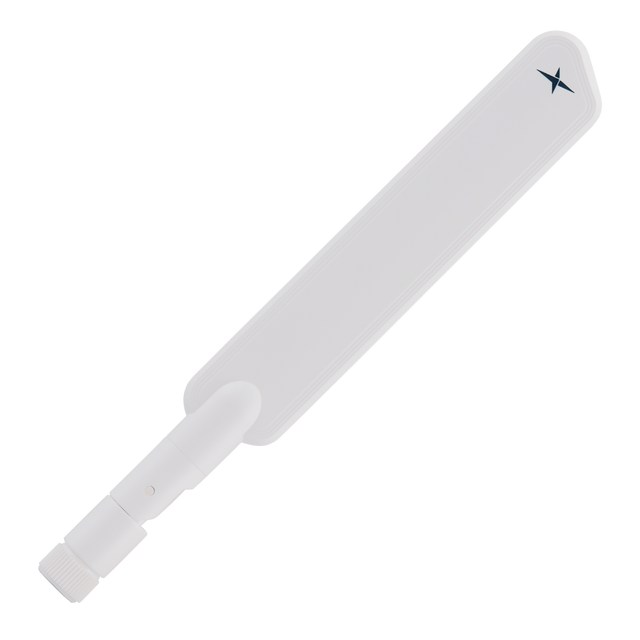

This white terminal-mount monopole antenna is designed for high-efficiency, wideband cellular operation across Sub-6 GHz bands. Its slim form factor and adjustable blade orientation make it well-suited for compact devices that need dependable throughput and stable omnidirectional performance.
- Wideband coverage: Supports 600MHz–6GHz for broad cellular compatibility.
- High efficiency: Designed to deliver strong real-world performance across major cellular bands.
- Flexible orientation: Hinged/swivel design helps optimize placement and improve isolation when multiple antennas are used on the same device.
- Use cases: Ideal for gateways/routers, smart metering, vending machines, industrial IoT, smart home, and connected enterprise devices.
- NTN support positioning: Recommended for NTN devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Terminal Mount
Type: Single
Straight Dimensions: 172 x 23.9 x 13 mm
Right Angle Dimensions: 148 x 42.4 x 13 mm
Weight: 24.3g
5G/4G (Cellular)
Frequency: 600MHz - 6000MHz
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 2.4 dBi
Max. Input Power: 2W
Radiation Pattern: Omni
Connector Type: SMA (M)
Connector Body Style: Hinged
