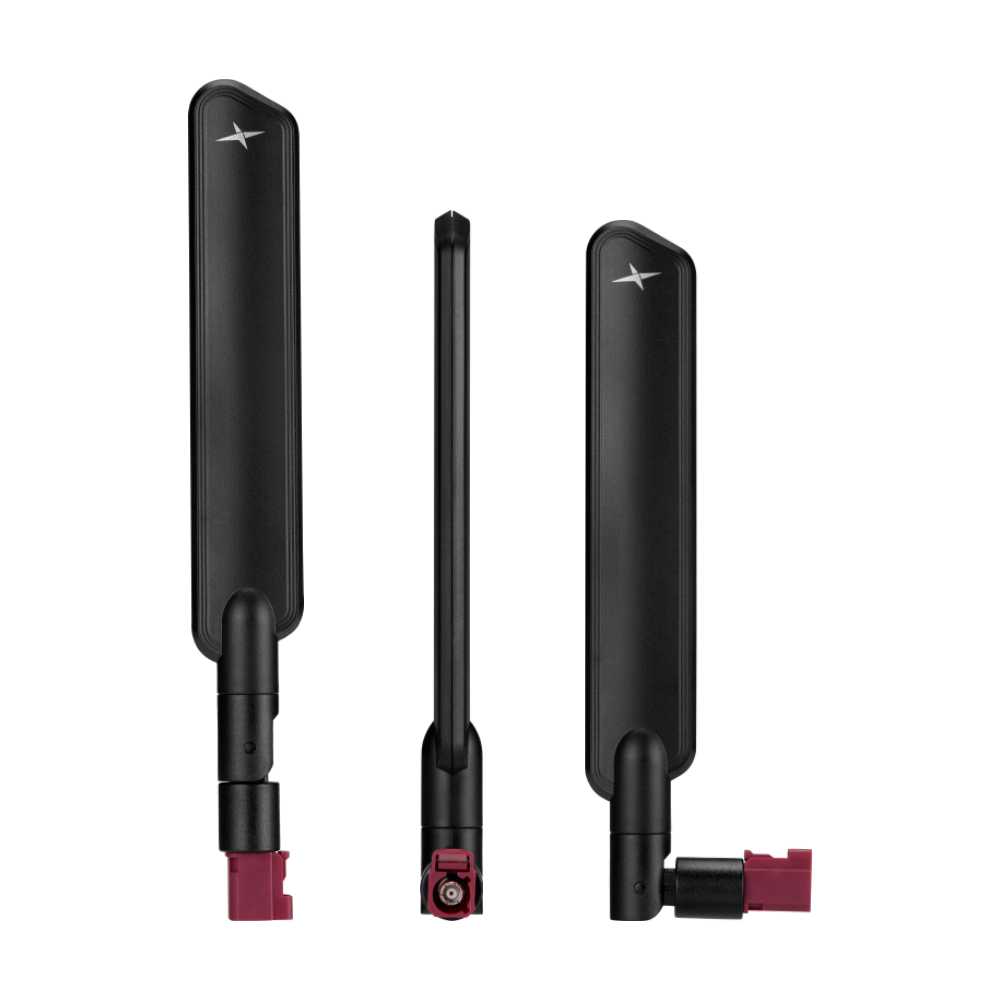

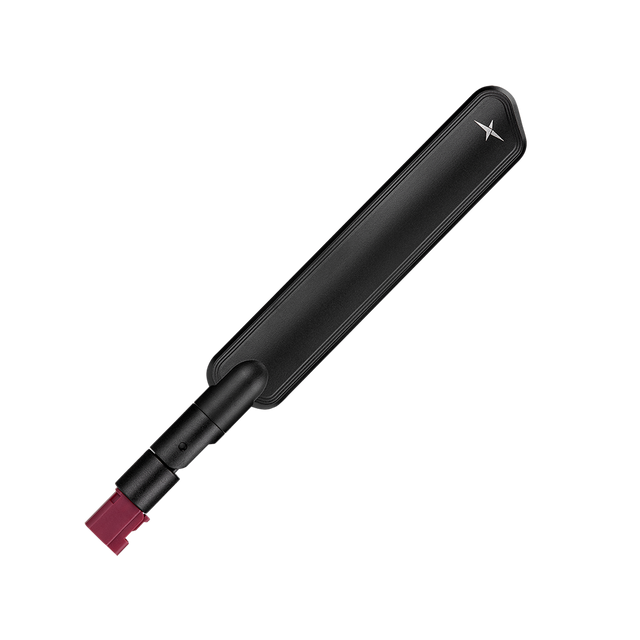

TG.55.8723 Antenna External Router Wideband 5G terminal mount monopole FAKRA Code D for Gateways & Routers, Smart Metering, Vending Machines, Industrial IoT

This wideband terminal-mount monopole antenna is designed for Sub-6GHz 5G and worldwide 4G coverage in a slim form factor. Its 90-degree hinged design helps you orient the antenna for improved clearance and placement on compact equipment, supporting stable omnidirectional performance across major cellular bands.

• Wideband cellular coverage: Supports Sub-6GHz 5G and global 4G bands with 3G/2G fallback, plus NB-IoT and Cat-M capabilities
• Optimized device integration: Hinged, right-angle form factor supports flexible orientation on terminals and access equipment
• Use cases: Gateways & Routers, Smart Metering, Vending Machines, Industrial IoT, Smart Home, Connected Enterprise
• NTN suitability: Recommended for NTN devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America)

Connector & Cable

• Connector Type: FAKRA Code D Connector

Technical Specifications

Operating Temperature: -40°C to +90°C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Terminal Mount
Type: Single
Dimensions (Straight): 172 x 23.9 x 13 mm
Dimensions (Right Angle): 148 x 42.4 x 13 mm
Weight: 24.3g

5G/4G Cellular

Frequency: 600MHz - 6000MHz
Standards: 5G NR (Sub 6GHz) / LTE / GSM / WCDMA / HSPA / HSPA+ / TD-SCDMA
Impedance: 50Ω
VSWR: 2:1
Polarization: CP-Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Gain (Max): 2.3 dBi
Efficiency (Max): up to 80%
Connector Type: FAKRA Code D (90° hinged, right angle)
