Description

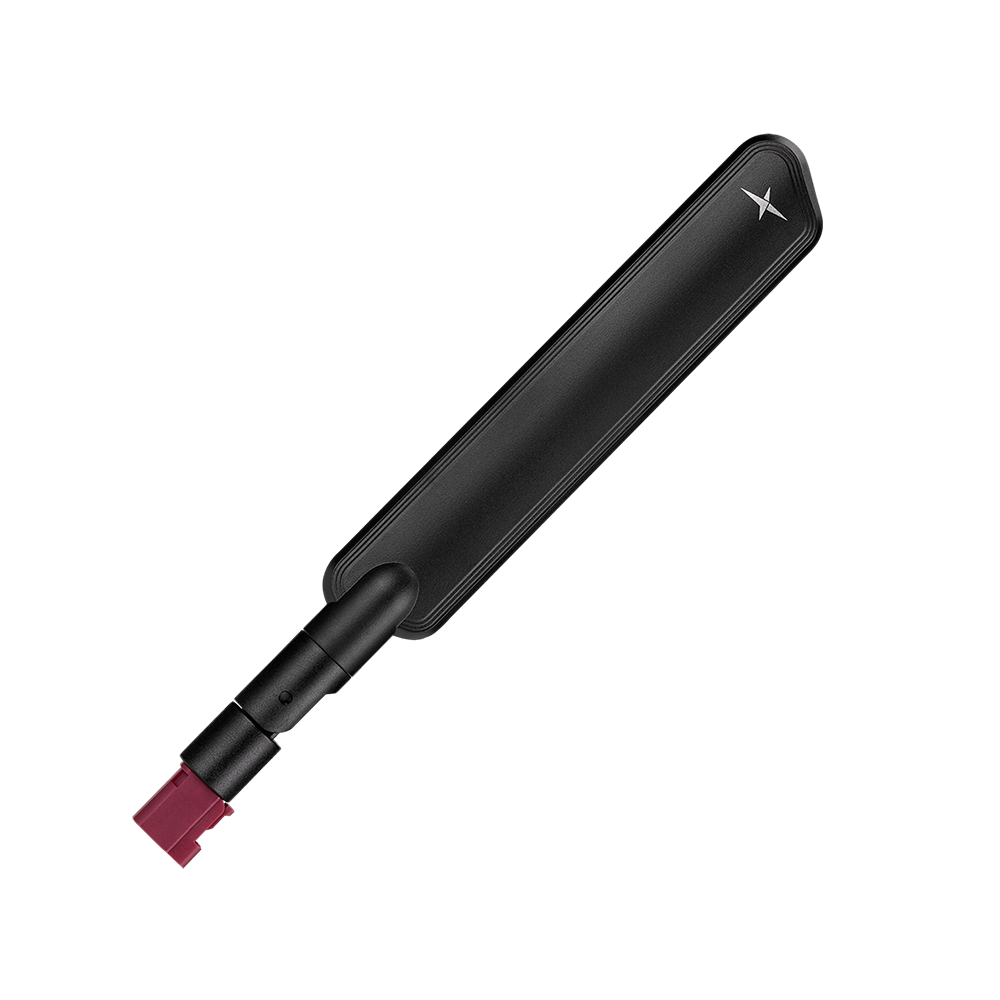

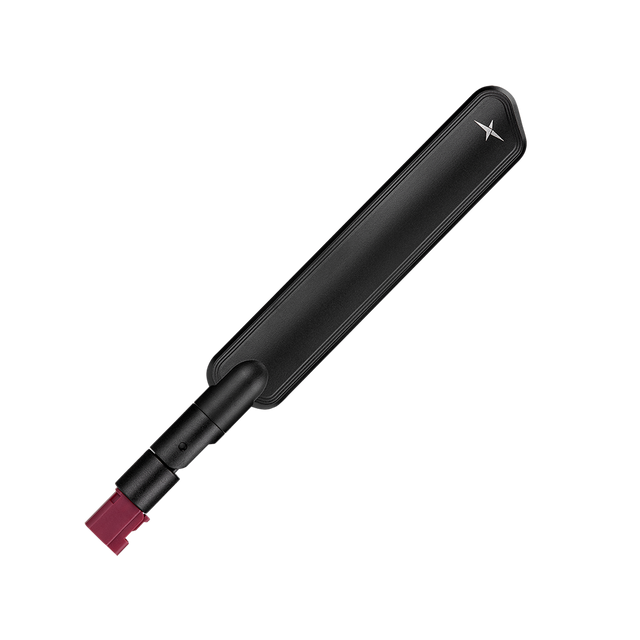

TG.55.8723 is a wideband terminal-mount monopole antenna designed for reliable, high-efficiency cellular connectivity across Sub-6 GHz bands. Its slim blade format and omnidirectional performance make it well suited for modern terminals and fixed wireless equipment where consistent throughput is required.
- Wideband coverage: supports 600 MHz to 6 GHz operation for global cellular deployments
- High efficiency: designed to deliver strong real-world performance across major bands

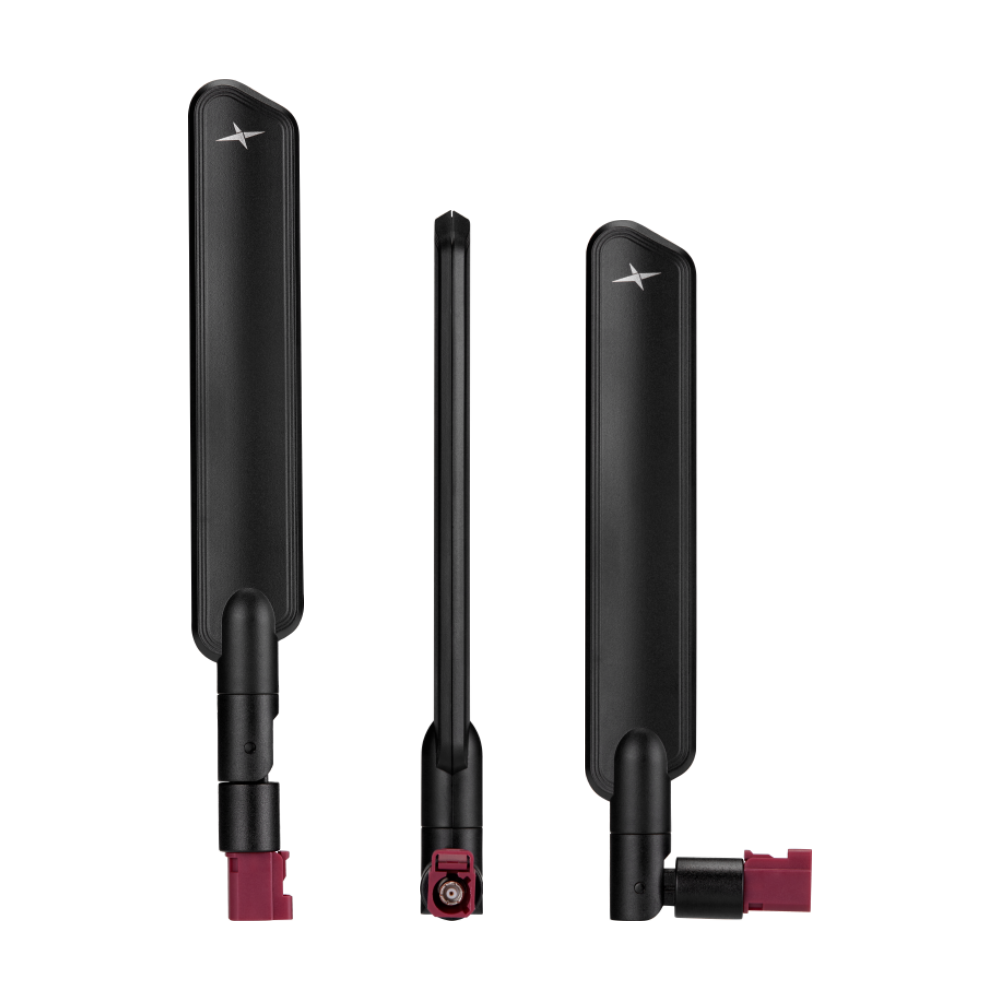

- Flexible orientation: hinged, 90° swivel design helps optimize placement and reduce obstruction around other device components
- NTN ready: recommended for Non-Terrestrial Network (NTN) devices on Band 255 (Global), Band 256 (Europe), and Band 23 (North America)
Typical applications include: Gateways & Routers, Smart Metering, Vending Machines, Industrial IoT, Smart Home, Connected Enterprise.
Connector & Cable
- Connector Type: FAKRA Code D Connector
Technical Specifications
Operating Temperature: -40°C to +90°C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Terminal Mount
Type: Single
Straight Dimensions: 172 x 23.9 x 13 mm
Right Angle Dimensions: 148 x 42.4 x 13 mm
Weight: 24.3g
5G/4G Cellular (Wideband)
Frequency: 600MHz - 6000MHz
Standards: 5G NR (Sub 6GHz), 4G (Worldwide), 3G/2G fallback, NB-IoT, CAT-M
Impedance: 50Ω
VSWR: 2:1
Polarization: CP-Linear
Gain (Max): 2.3
Radiation Pattern: Omni
Max. input power: 2W
Connector Type: FAKRA Code D (90° hinged right angle)
