Description

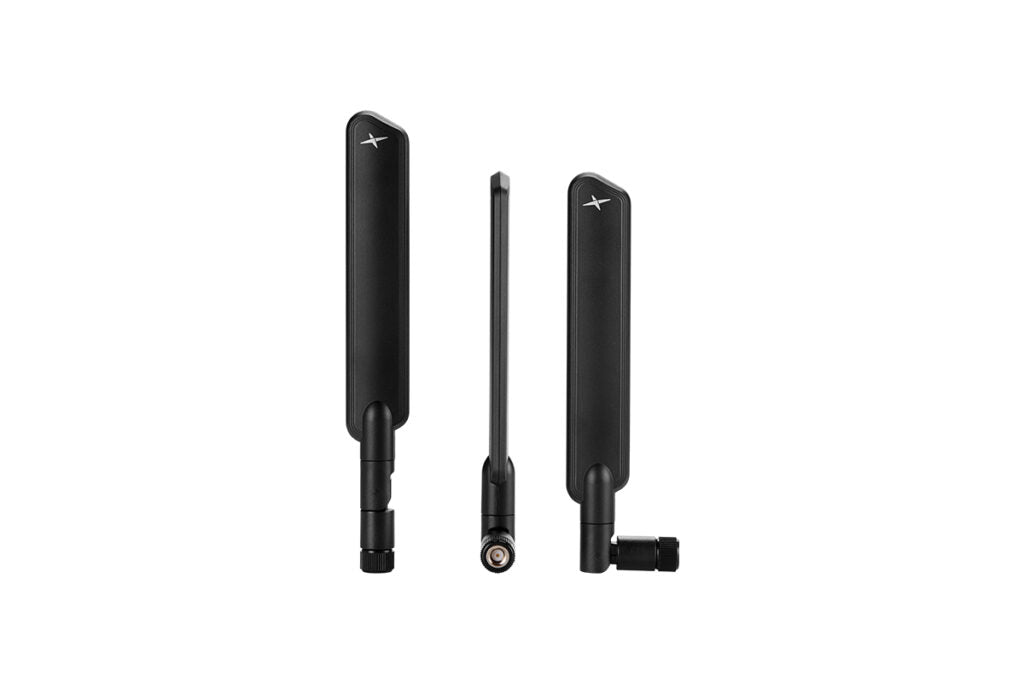

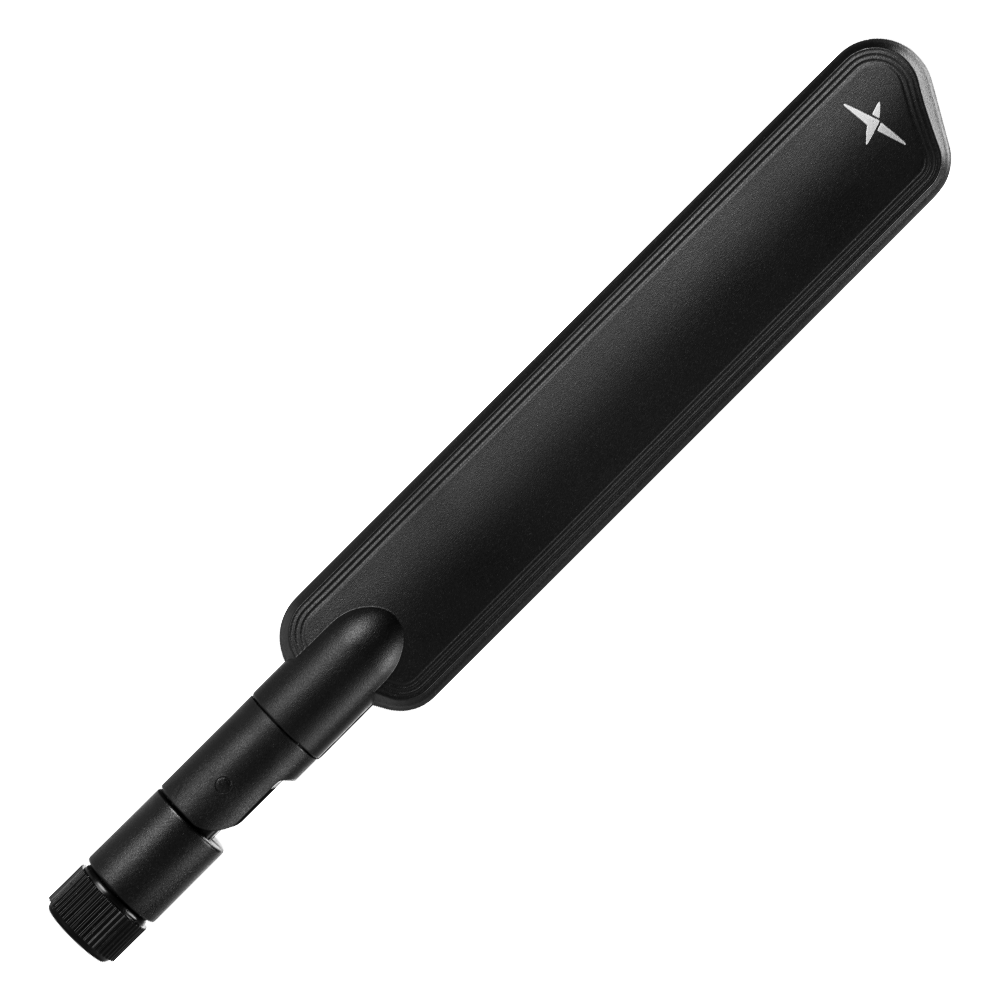

This terminal-mount monopole antenna delivers wideband cellular coverage from 600MHz to 6GHz for high-throughput device connectivity. Its hinged right-angle design supports flexible orientation in tight installations, and the IP66-rated housing helps protect against water ingress for outdoor use.
- Wideband cellular coverage: Sub-6GHz 5G NR and worldwide 4G bands
- High efficiency: up to 80% (application dependent)
- Backward compatible: supports 3G/2G fallback, with NB-IoT and Cat-M capabilities
- Radiation: omnidirectional, linear polarization
Typical applications include: Gateways & Routers, Exterior Cameras, Vending Machines, Industrial IoT, Smart Home, Wastewater Monitoring.
Connector & Cable
- Connector Type: SMA (M)
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Terminal Mount
Type: Single
IP Rating: IP66
Dimensions (Straight): 172 x 23.9 x 13 mm
Dimensions (Right Angle): 148 x 42.4 x 13 mm
Weight: 24.5g
5G/4G Cellular
Frequency: 617MHz - 5925MHz
Standards: 5G NR (FR1/Sub-6), LTE/LTE-Advanced, WCDMA/HSPA/HSPA+/TD-SCDMA, GSM, 3G/2G, NB-IoT, Cat-M
Impedance: 50Ω
VSWR: <2
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2 W
Gain (Max): 2.45
Connector Type: Hinged SMA (M)
