Description
This high-band terminal-mount monopole antenna supports worldwide sub-6 GHz cellular coverage and is designed for compact devices that need reliable, omni-directional performance.
- Wideband cellular coverage: built to cover new worldwide 5G bands across the high-band range, while also supporting legacy cellular bands.
- Compact terminal-mount form factor: suited to space-constrained gateways and connected devices.

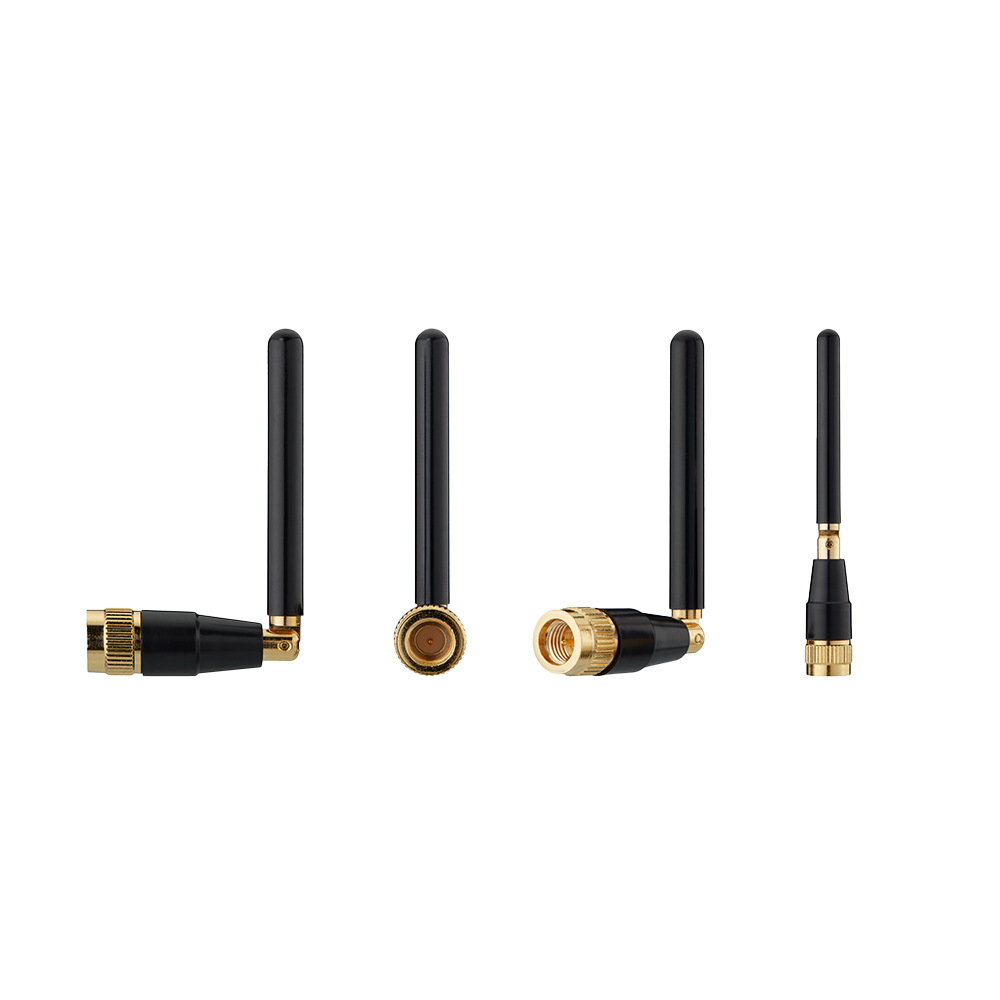

- Rotatable hinge: enables flexible positioning to help optimize signal reception and reduce the risk of impact damage versus fixed-angle designs.
- Omni-directional pattern: uniform 360° coverage for consistent connectivity.
Typical applications include:
- Gateways, Routers, and Wireless Access Points
- Smart & Connected Home
- Transportation & Telematics
- Telemedicine Devices
- Digital Signage and POS Terminals
- AR/VR Headsets and Devices
Connector & Cable
- Connector Type: Hinged SMA Male (SMA-M)
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
Mounting: Terminal Mount
Type: Single
Dimensions: 72 x Ø10 mm when fully e x tended Connector: Hinged SMA Male CE Certified for RoHS
Weight: 8g
Casing: ABS
5G/4G/3G (Cellular)
Frequency: 1400-6000 MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Max Input Power: 2W
Radiation Pattern: Omni-directional
Gain (Max): 3.97 dBi
Connector Type: Hinged SMA Male (SMA-M)
