Description

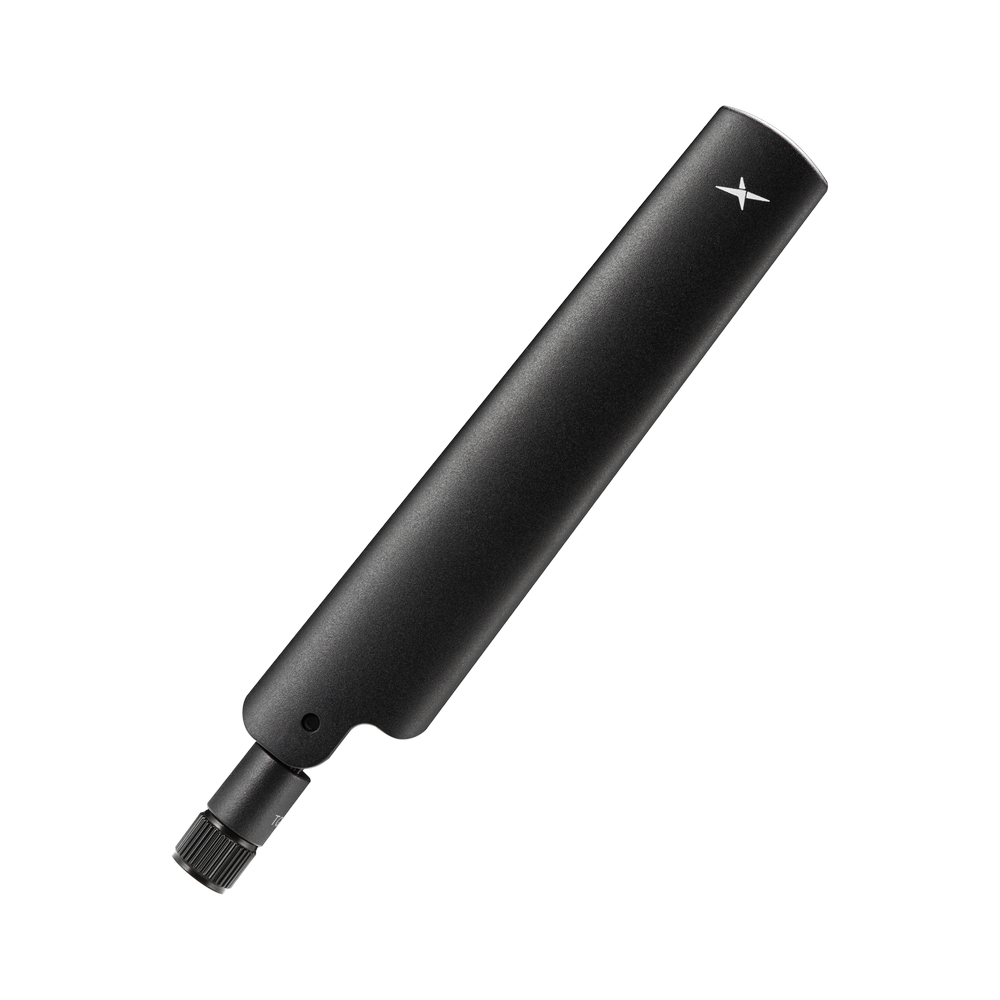

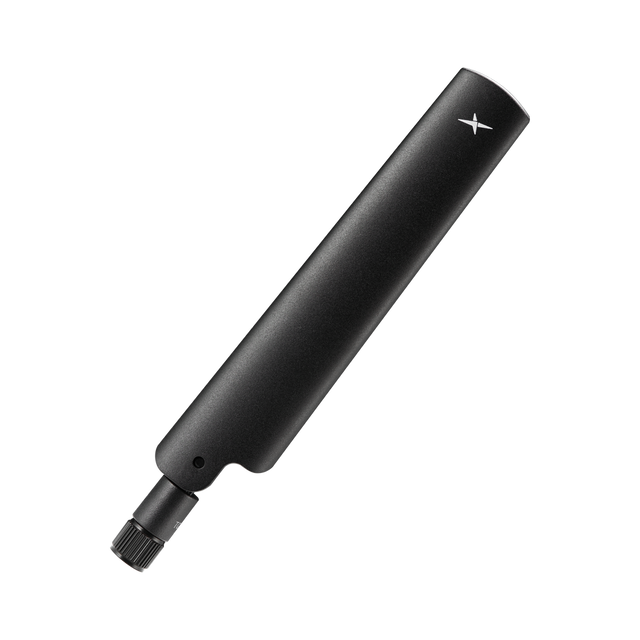

This wideband dipole terminal antenna covers 600–6000MHz for 5G/4G cellular connectivity in router and gateway devices. Its rotatable hinged design supports flexible positioning to help optimize performance in compact installations, with omnidirectional radiation patterns for broad coverage.
It is also suitable for use with NB-IoT and Cat-M deployments, and can support dual-band Wi-Fi use cases due to its wide frequency coverage. Backwards compatibility with legacy networks (including 3G and GSM) makes it a versatile option for upgrades and new designs.
Typical applications include:
- Gateways and Routers
- In-Building Connectivity Systems
- Point of Sales Kiosks
- Connected Industries
- Smart Metering
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
5G/4G Cellular (Wideband)
Frequency: 600MHz - 6000MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Gain (Max): 2.46
Connector Type: SMA(M)
Dimensions: 135 x 19.4 x 10 mm RoHS & Reach Compliant
Weight: 19 g
RoHS: Yes
