Description

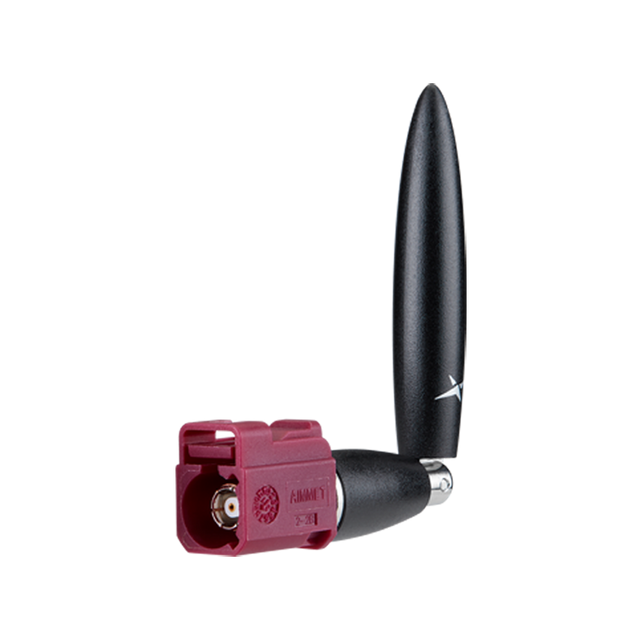

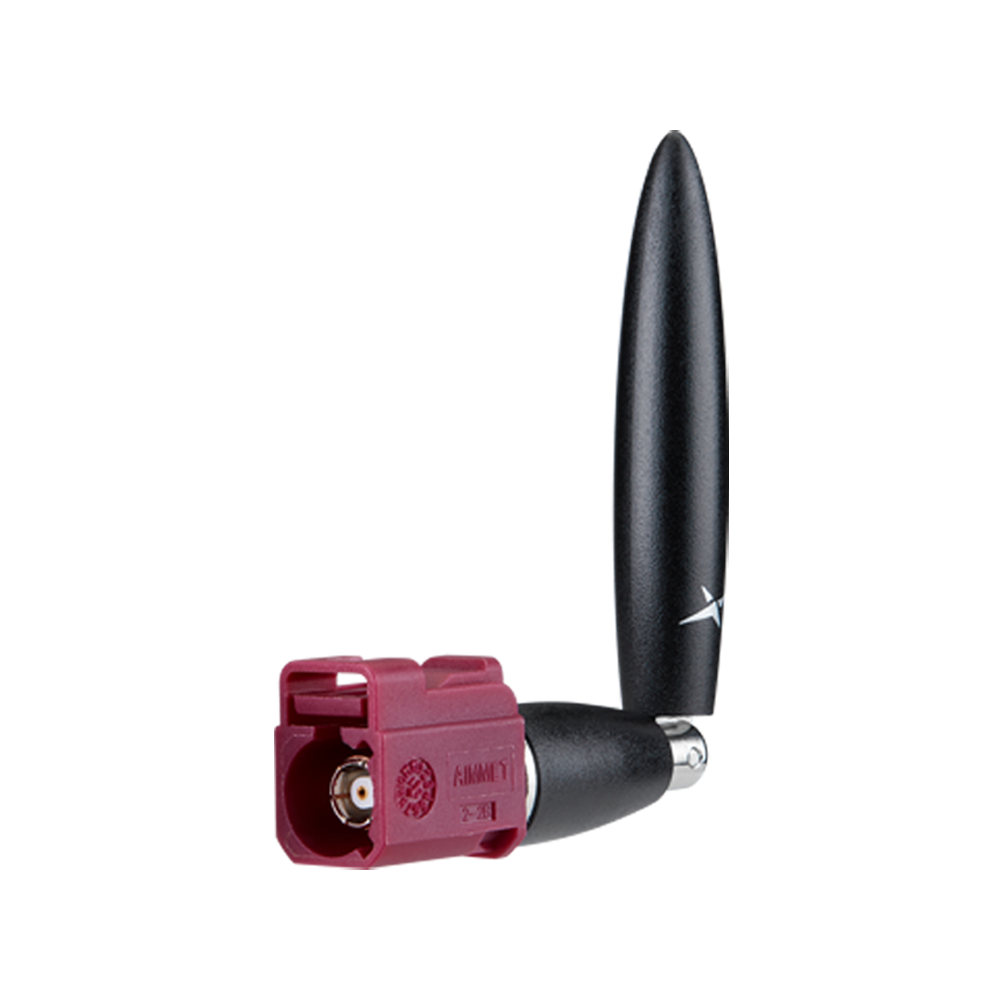

Miniature wideband terminal-mount antenna designed to cover global 5G/4G frequencies from 600MHz to 6GHz in a compact monopole form factor.
- Wideband 5G/4G coverage for modern gateways and connected devices

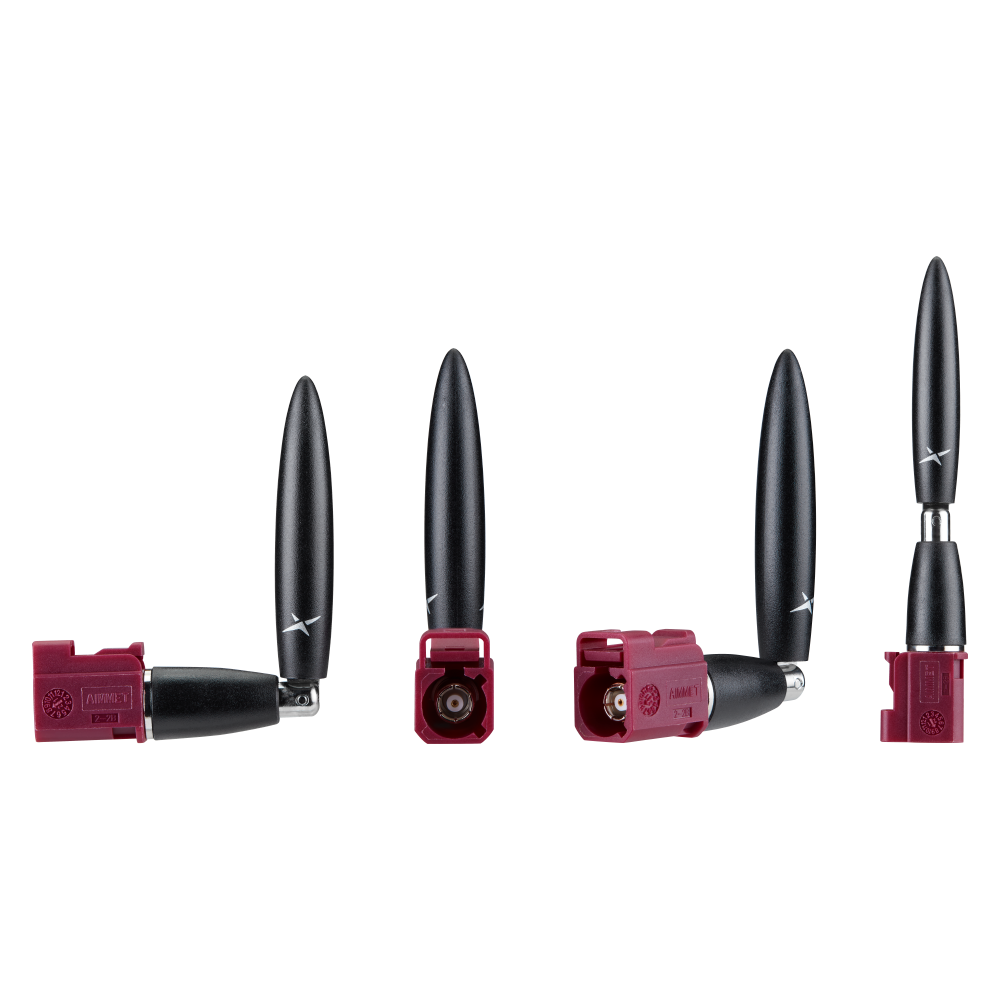

- Rotatable hinged design supports flexible positioning on space-constrained equipment
- Omnidirectional radiation patterns help provide stable all-around coverage
- Monopole design suitable for smaller ground plane implementations
- Recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America)
Typical applications include: Gateways and Routers, IoT Sensors, Public Safety and Security, Point of Sales Terminals, Smart Home Automation, Robotics / Autonomous.
Connector & Cable
- Connector Type: FAKRA Code D Bordeaux Violet Jack
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Terminal Mount
Type: Single
Dimensions: 78.1 * Ø9.7 mm RoHS and REACH Compliant Suitable for Non-Terrestrial Network app
Weight: 9g
5G/4G Wideband (Cellular / NTN)
Frequency: 600-6000 MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA / NTN, NB-IoT, Cat-M
Impedance: 50 Ω
Polarization: Linear
VSWR: 1.5:1
Radiation Pattern: Omni directional
Max. Input Power: 10W
Connector Type: FAKRA Code D Bordeaux Violet Jack (Hinged)
