Description

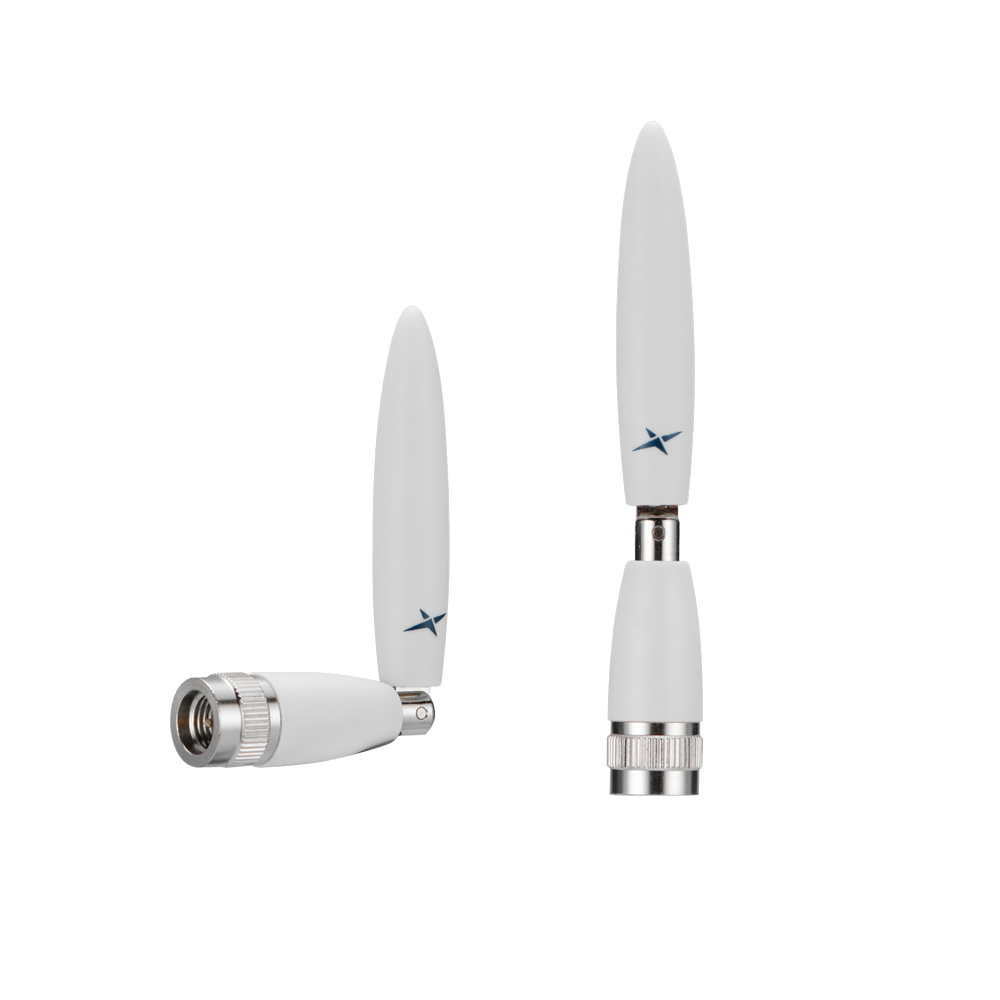

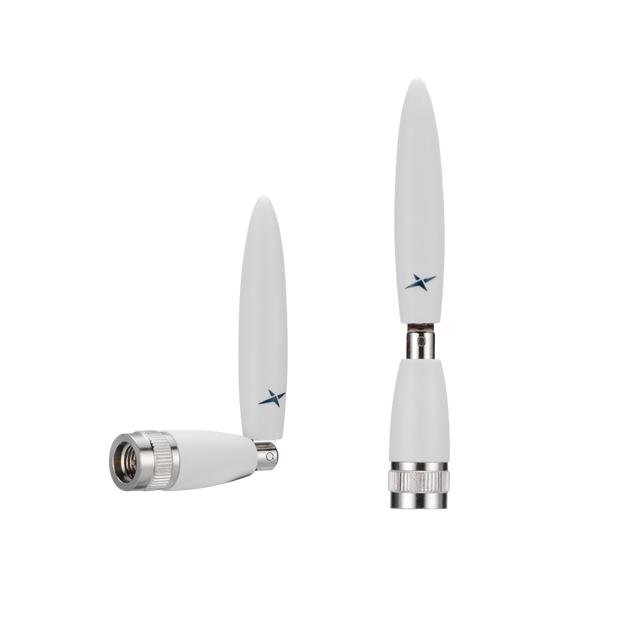

Apex TG.66 is a miniature wideband cellular monopole antenna designed to cover global 5G/4G operation from 600MHz to 6GHz in a compact, rotatable hinged form factor.
It delivers stable, omnidirectional performance and is well-suited to devices with limited space and small ground planes, helping maintain reliable connectivity across a wide range of deployments. The hinged design also supports flexible positioning to reduce obstruction and help improve isolation when multiple antennas are used in MIMO systems.
Recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Terminal Mount
Type: Single
Dimensions: 70.3 * Ø9.7 mm RoHS and REACH Compliant Suitable for Non-Terrestrial Network app
Weight: 9g
5G/4G Cellular
Frequency: 600MHz - 6000MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA / NTN
Impedance: 50 Ω
Polarization: Linear
VSWR: 1.5:1
Gain (Max): 4.8
Radiation Pattern: Omni directional
Max. Input Power: 10W
Connector Type: SMA (M) (90° hinged right angle)
