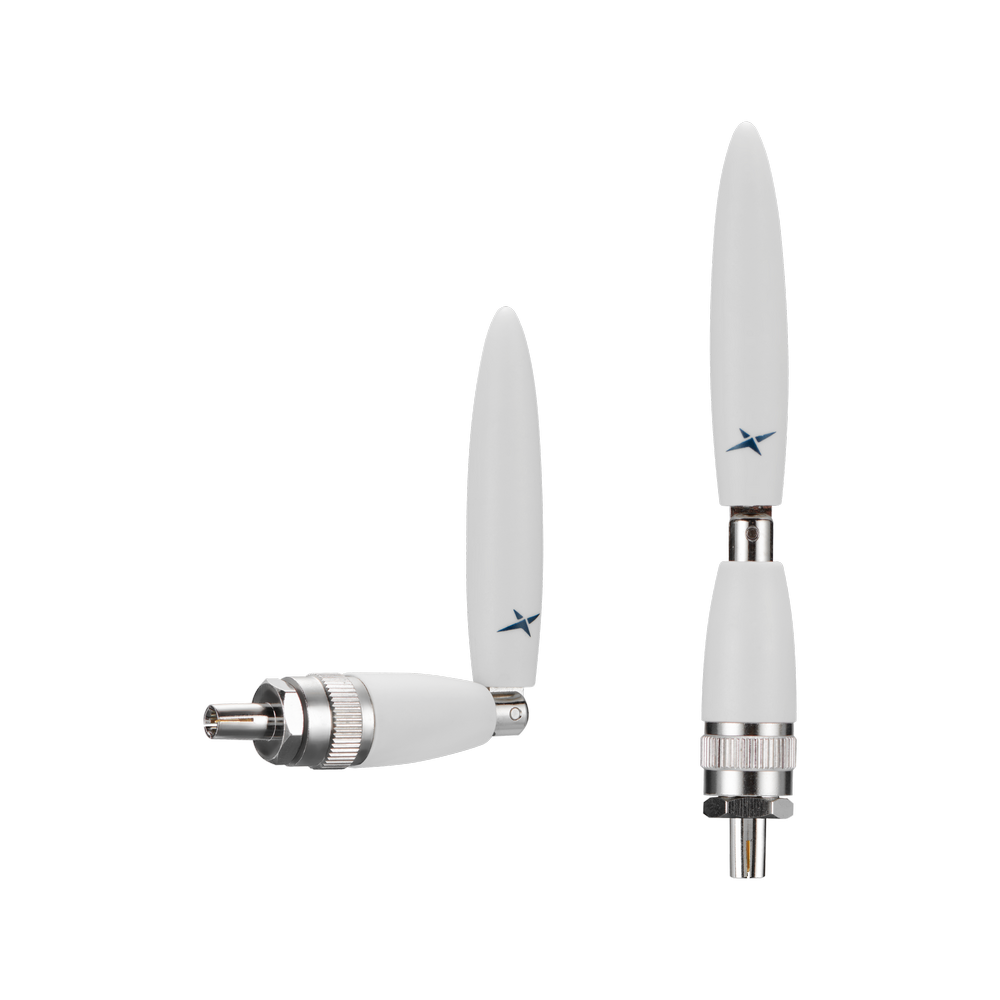

TG.66.AN13W Antenna External Miniature Wideband 5G, 4G/LTE terminal mount monopole Apex TS9(M) for Gateways and Routers, IoT Sensors, Public Safety and Security, Point of Sales Terminals

This miniature wideband terminal-mount antenna is designed to cover global cellular frequencies from 600 MHz to 6 GHz for reliable 5G and 4G/LTE connectivity in compact devices.

• Wideband cellular coverage: supports modern 5G and 4G/LTE deployments across global bands
• Compact form factor: built for space-constrained hardware designs
• Monopole design: suitable for use with small ground planes
• Omnidirectional radiation pattern: helps provide stable coverage across the hemisphere

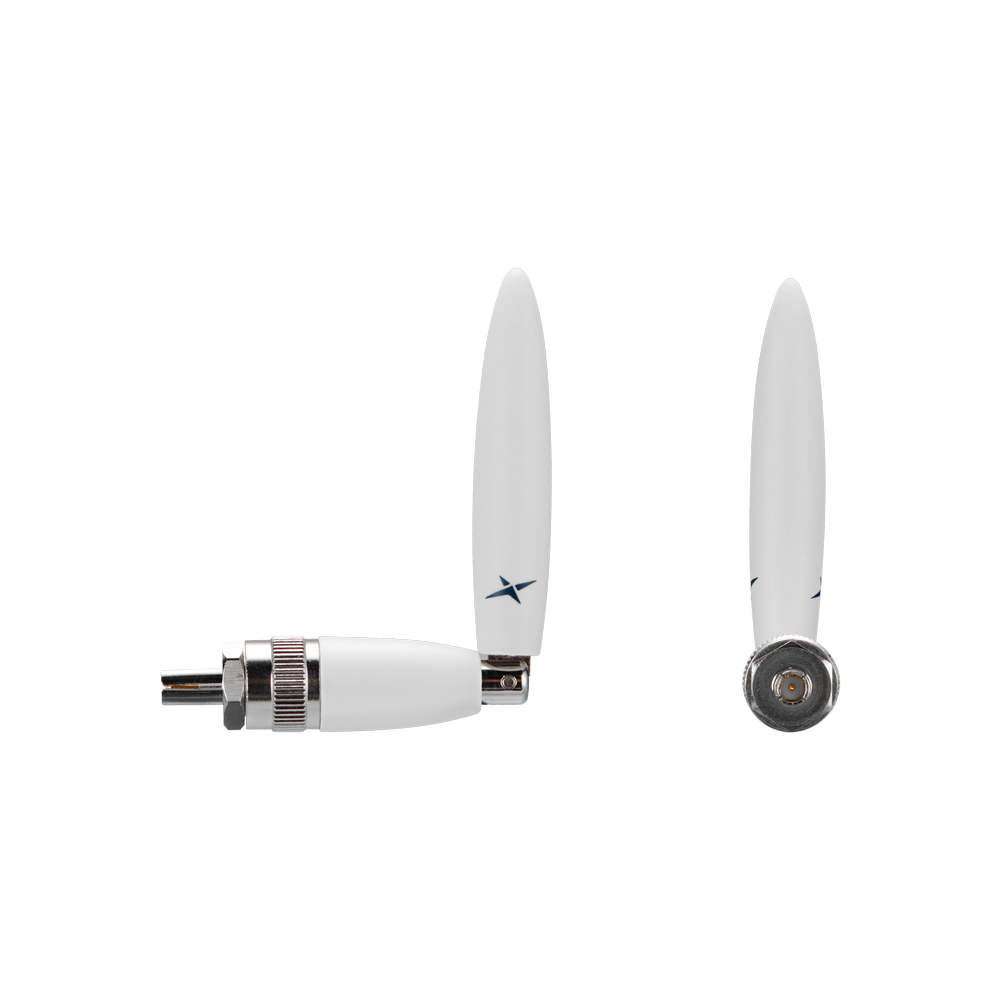

• Adjustable orientation: hinged design supports flexible positioning, including improved isolation when multiple antennas are used

Typical applications include: Gateways and Routers, IoT Sensors, Public Safety and Security, Point of Sales Terminals, Smart Home Automation, and Robotics / Autonomous.

Connector & Cable

• Connector Type: TS9 (M)

Technical Specifications

Operating Temperature: -40 C to 85 C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Terminal Mount
Type: Single
Impedance: 50 a9
Polarization: Linear
VSWR: 1.5:1
Gain (Max): 6.12
Dimensions: 70.3 x Ø9.7 mm RoHS and REACH Compliant
Weight: 11.3g

5GNR/4G Cellular

Frequency: 600 MHz - 6000 MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA / NTN
Radiation Pattern: Omni directional
Max. Input Power: 10W
Connector Type: TS9 (M)
