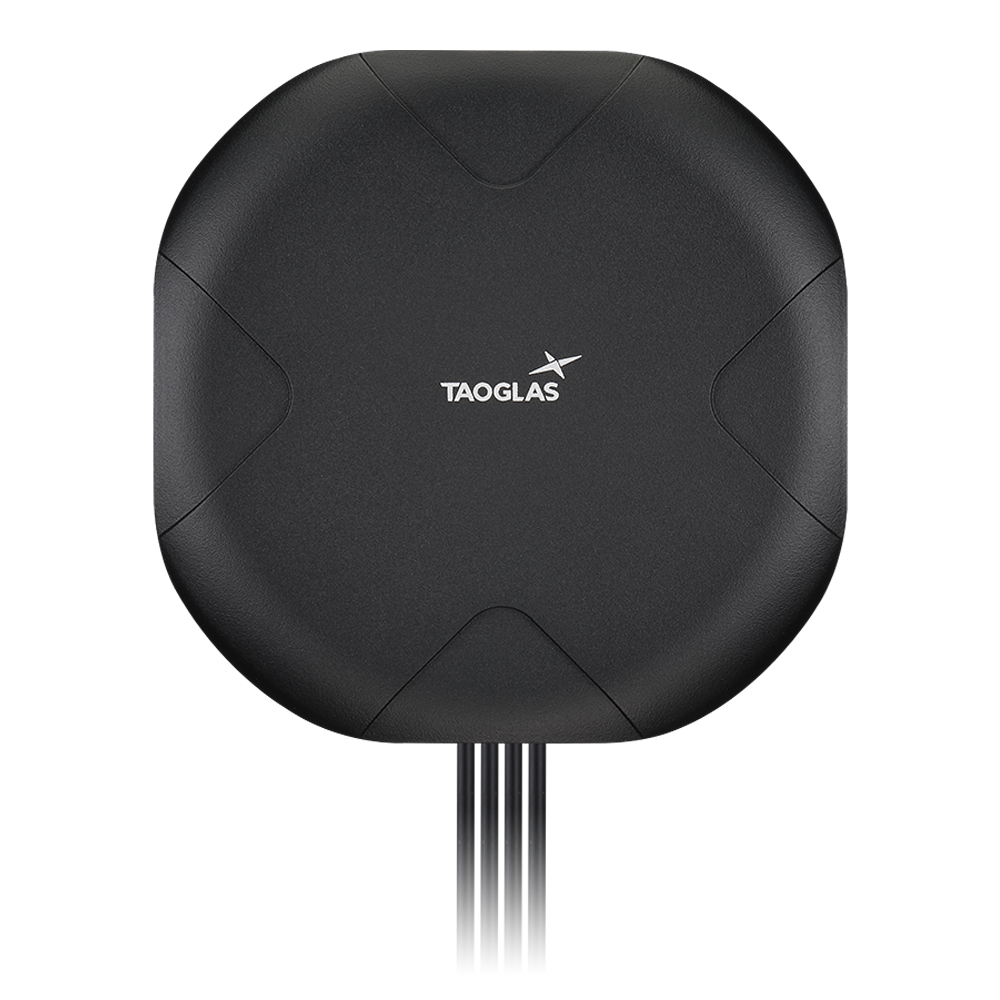

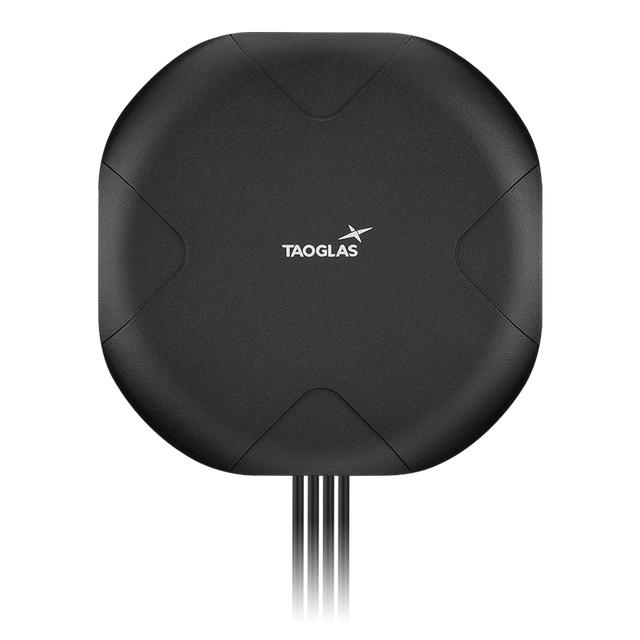

TGX.04.A.001 Antenna External 4x MIMO 5G multi-mount cross-polarized for Agriculture and Rural 5G, Coverage enhancement systems, Commercial Transportation, Connected Enterprise

This 4x MIMO cross-polarized, omnidirectional dipole antenna is designed for wideband sub-6 GHz cellular coverage to improve throughput, signal quality, and coverage in demanding environments.

• Wideband cellular coverage: supports broadband operation across a wide frequency range for global deployments.
• 4x MIMO performance: cross-polarized element layout helps enhance MIMO capability and overall link quality.
• Rugged enclosure: sealed housing designed for harsh outdoor conditions.

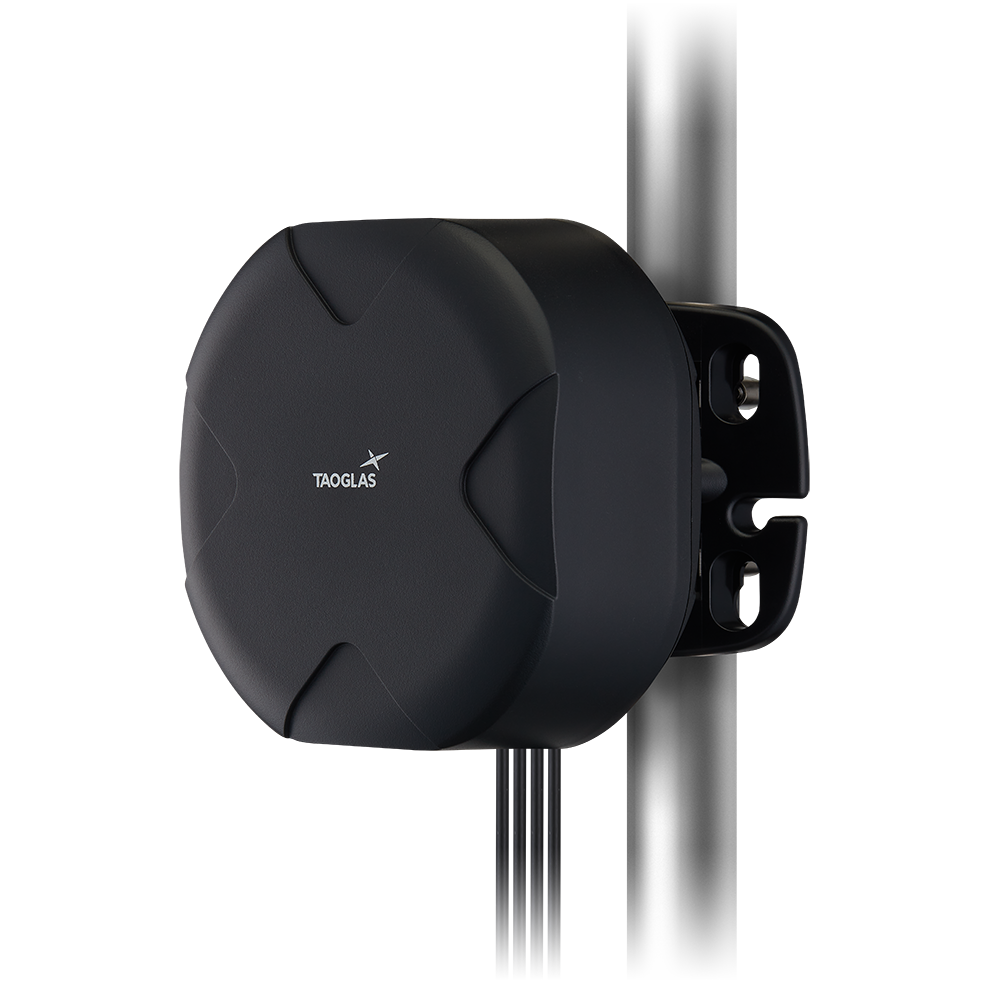

• Flexible mounting: multi-function bracket supports wall, pole, and glass mounting options for versatile installations.

Typical use cases include Agriculture and Rural 5G, coverage enhancement systems, Commercial Transportation, Connected Enterprise deployments, and Public Safety and First Responder networks, as well as gateways, routers, and wireless access points.

Connections

4x 5G/4G LTE MIMO 400-6000MHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole, MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Wall Mount, Pole Mount, Glass Mount
Type: Combination
IP Rating: IP67
Dimensions: 165 * 165 * 149 mm(Including Bracket) RoHS & Reach Compliant
Weight: 900g

5G/4G LTE 4x MIMO

Frequency: 400-6000MHz
Standards: 5GNR/4G LTE/3G/NB-IoT/Cat M
Impedance: 50 Ω
VSWR: 1.5:1
Polarization: Linear
Radiation Pattern: Omni-directional
Max. Input Power: 10W
Gain (Max): 2.43
Connector Type: SMA Male Straight (4x)
Cable Length: 300cm (4x)
Cable Type: TGC-200
