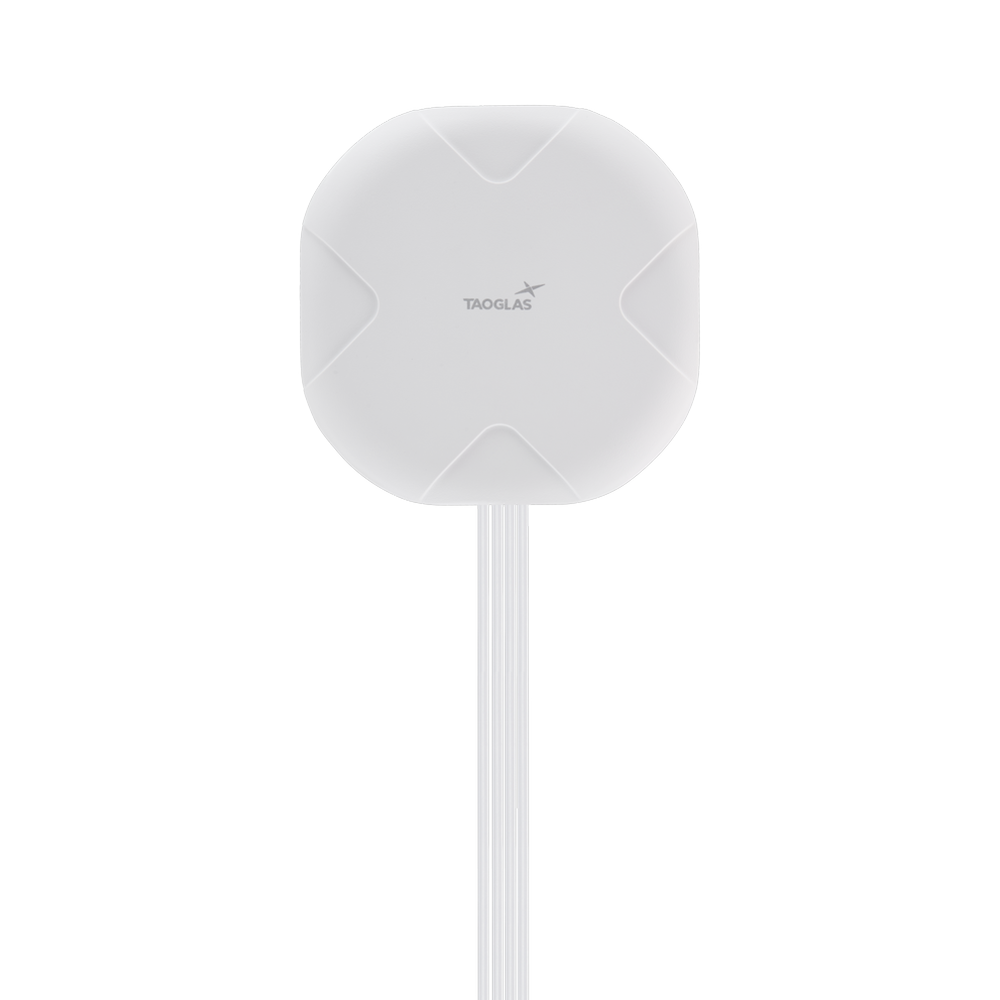

TGX.04.W.A.001 Antenna 4x4 MIMO Router 5G multi-mount bracket IP67 for Agriculture and Rural 5G, Coverage enhancement systems, Commercial Transportation, Connected Enterprise

This white, cross-polarized 4x4 MIMO omnidirectional dipole antenna is designed to improve throughput and signal quality across wideband sub-6 GHz cellular deployments. Its orthogonal element layout supports strong MIMO performance for better coverage, particularly in challenging urban and wide-area environments.

• Wideband cellular coverage: supports global sub-6 GHz 5G/4G frequency ranges
• Cross-polarized 4x4 MIMO design: improves signal quality and network capacity
• Omnidirectional patterns: helps maintain consistent coverage around the installation site
• Rugged enclosure: IP67-rated for demanding deployments

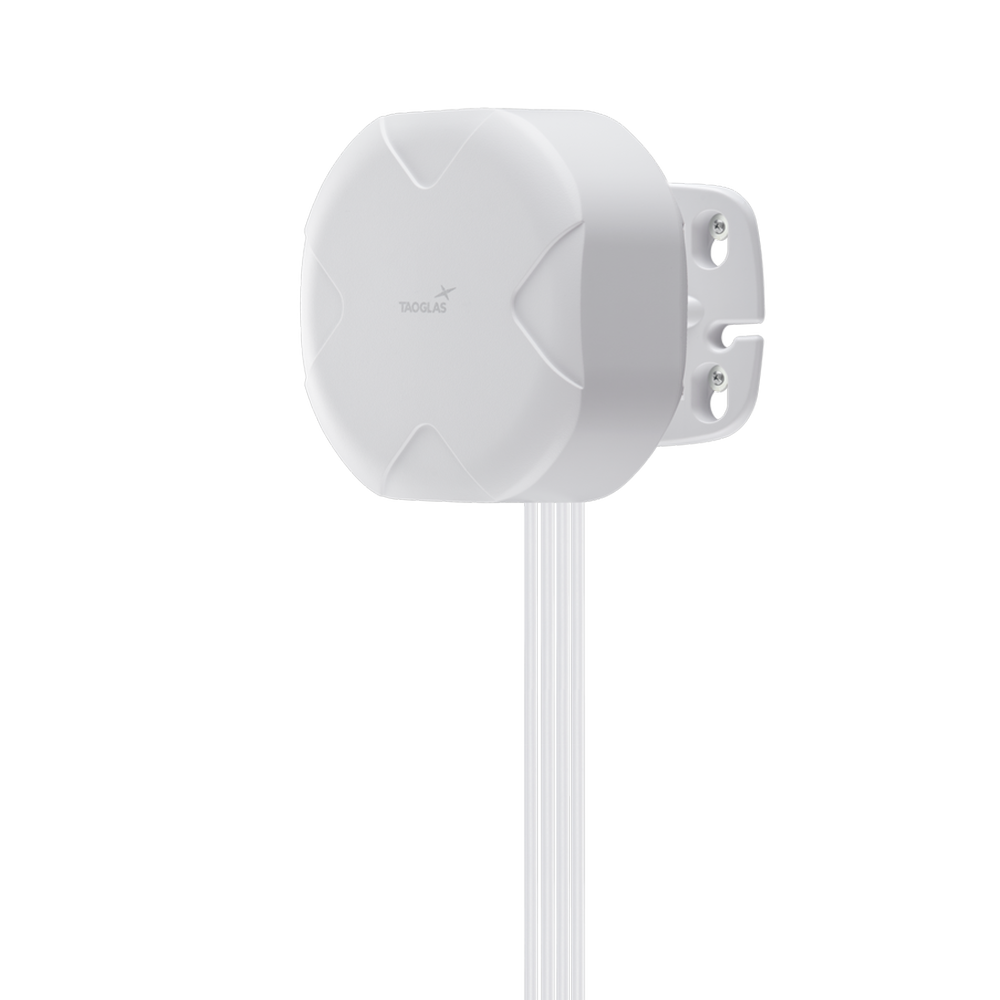

• Flexible deployment options: multi-function bracket supports wall, pole, and glass mounting use cases

Typical use cases: Agriculture and Rural 5G, coverage enhancement systems, commercial transportation, connected enterprise, and public safety / first responder networks.

Connections

4x 5G/4G LTE MIMO 400-6000MHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole, MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Multi-Mount
Type: Combination
IP Rating: IP67
Dimensions: 165 * 165 * 149 mm(Including Bracket) RoHS & Reach Compliant
Weight: 900g

4x 5G/4G LTE MIMO (Cross-Polarized)

Frequency: 400MHz - 6000MHz
Polarization: Linear
Impedance: 50 Ω
VSWR: <2
Gain (Max): 4.2
Max Input Power: 10W
Radiation Pattern: Omni-Directional
Connector Type: SMA Male Straight
Cable Length: 300cm
Cable Type: TGC-200
